1V 8722 Truck Air Spring Suitable for Firestone W01-M58-8722/DAF 1697678/Taurus KR721-06

1V 8722 Truck Air Spring Suitable for Firestone W01-M58-8722/DAF 1697678/Taurus KR721-06
1V 8722 Truck Air Spring Suitable for Firestone W01-M58-8722/DAF 1697678/Taurus KR721-06 1V 8722 Truck Air Spring Suitable for Firestone W01-M58-8722/DAF 1697678/Taurus KR721-06 1V 8722 Truck Air Spring Suitable for Firestone W01-M58-8722/DAF 1697678/Taurus KR721-06 1V 8722 Truck Air Spring Suitable for Firestone W01-M58-8722/DAF 1697678/Taurus KR721-06

Large Image :  1V 8722 Truck Air Spring Suitable for Firestone W01-M58-8722/DAF 1697678/Taurus KR721-06

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 8722
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V 8722 Truck Air Spring Suitable for Firestone W01-M58-8722/DAF 1697678/Taurus KR721-06

Description
OE Number: W01-M58-8722,1T17AR-4.5,836MK1,60209,12R12-712,1697678,0388165,20.836.1CM OE NO2: 1DF25-11,KR721-06,D13B32,9518127120,17066,MLF7060,5.10222
OE NO3: 084.052-13A,23A,084.052-73A,084.052-43A,131022,3836K Type: Truck Air Spring
Application: For Truck Air Suspension Packing: Neutral Packing Or Customized Packing
Condition: New Warranty: 1 Year
Minimum Order Quantity: 50 Pieces Sealing Configuration: Press-fit Cover Plate + Flange
Material: Rubber Piston Material: Iron
Highlight:

Truck Air Spring for Firestone W01-M58-8722

,

DAF 1697678 air suspension spring

,

Taurus KR721-06 truck air spring

1V 8722 Truck Air Spring Suitable for Firestone W01-M58-8722/DAF 1697678/Taurus KR721-06
Product Overview

1V 8722 Truck Air Spring manufactured to specifications matching Firestone W01-M58-8722/DAF 1697678/Taurus KR721-06. This air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-M58-8722 W01 M58 8722/W01M588722/W01M58-8722/W01-M588722/W01-M58-8722
Firestone 1T17AR-4.5 1T17AR 4.5/1T17AR4.5/1T17AR-4.5
Contitech 836MK1/60209 836MK1 60209/836MK160209/836MK1/60209
Goodyear 12R12-712 12R12 712/12R12712/12R12-712
DAF 1697678 1697678
DAF 0388165 0388165
Airfren 20.836.1CM 20.836.1CM
Peautomotive 084.052-13A/23A 084.052 13A 23A/084.05213A23A/084.052-13A/23A
Peautomotive 084.052-73A 084.052 73A/084.05273A/084.052-73A
Peautomotive 084.052-43A 084.052 43A/084.05243A/084.052-43A
Phoenix 1DF25-11 1DF25 11/1DF2511/1DF25-11
Taurus KR721-06 KR721 06/KR72106/KR721-06
Dunlop FR D13B32 D13B32
WABCO 9518127120 9518127120
Granning 17066 17066
Meritor MLF7060 MLF7060
DT 5.10222 5.10222
Airtech 131022 131022
Airtech 3836K 3836K
Technical Specifications
Specifications Parameters
Outer diameter φ265
Weight 9.5521kg
Package Dimensions 28*28*31.5 kg
Natural height 519mm
Maximum height 469mm
Minimum height 185mm
Extended Height 440mm
Compressed Height 185mm
Top Plate Width 272mm
Piston Width 226mm
Product Drawing
1V 8722 Truck Air Spring Suitable for Firestone W01-M58-8722/DAF 1697678/Taurus KR721-06 0
Delivery Information
  • Delivery Time: Orders are typically shipped within 30 business days after payment is received.
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to international transportation, we need to pack according to strict requirements to avoid damage to the goods. If logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.

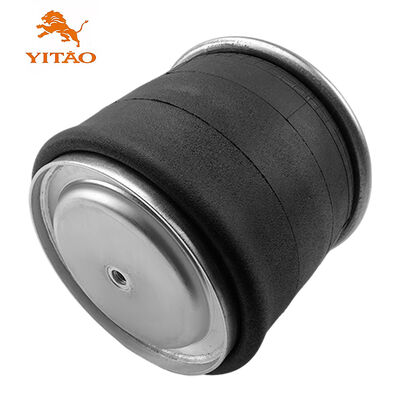

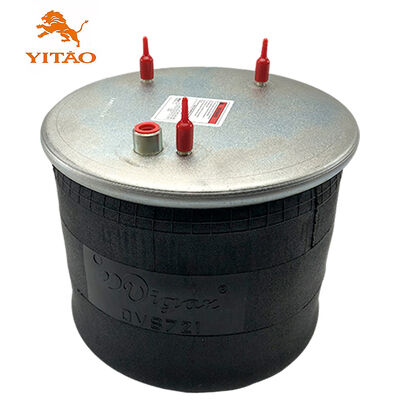

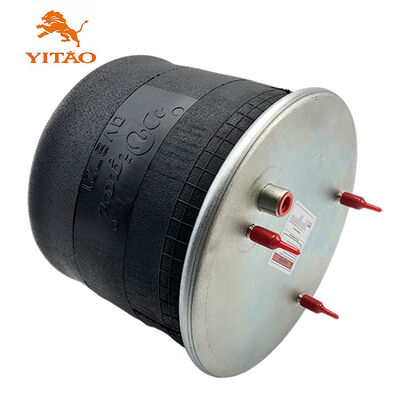

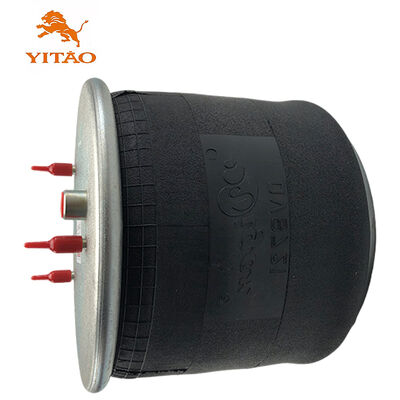

Product Images
1V 8722 Truck Air Spring Suitable for Firestone W01-M58-8722/DAF 1697678/Taurus KR721-06 1 1V 8722 Truck Air Spring Suitable for Firestone W01-M58-8722/DAF 1697678/Taurus KR721-06 2 1V 8722 Truck Air Spring Suitable for Firestone W01-M58-8722/DAF 1697678/Taurus KR721-06 3 1V 8722 Truck Air Spring Suitable for Firestone W01-M58-8722/DAF 1697678/Taurus KR721-06 4 1V 8722 Truck Air Spring Suitable for Firestone W01-M58-8722/DAF 1697678/Taurus KR721-06 5 1V 8722 Truck Air Spring Suitable for Firestone W01-M58-8722/DAF 1697678/Taurus KR721-06 6 1V 8722 Truck Air Spring Suitable for Firestone W01-M58-8722/DAF 1697678/Taurus KR721-06 7
Images shown are for reference only. Actual product may vary slightly.
