1V 8774F Truck Air Spring Suitable for Firestone 1T19LF-7/Hendrickson S25873

1V 8774F Truck Air Spring Suitable for Firestone 1T19LF-7/Hendrickson S25873
1V 8774F Truck Air Spring Suitable for Firestone 1T19LF-7/Hendrickson S25873 1V 8774F Truck Air Spring Suitable for Firestone 1T19LF-7/Hendrickson S25873 1V 8774F Truck Air Spring Suitable for Firestone 1T19LF-7/Hendrickson S25873 1V 8774F Truck Air Spring Suitable for Firestone 1T19LF-7/Hendrickson S25873

Large Image :  1V 8774F Truck Air Spring Suitable for Firestone 1T19LF-7/Hendrickson S25873

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 8774F
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V 8774F Truck Air Spring Suitable for Firestone 1T19LF-7/Hendrickson S25873

Description
OE Number: W01-358-8774,1T19LF-7,1110.5F-17P745,1R14-172,566283042,1R14-183 OE NO2: 1R14-190,566283044,S25873,S27341,AS0144,AS0519,AS01591G
Type: Truck Air Spring Application: For Truck Air Suspension
Packing: Neutral Packing Or Customized Packing Condition: New
Warranty: 1 Year Minimum Order Quantity: 50 Pieces
Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate Material: Rubber
Piston Material: Iron
Highlight:

Firestone 1T19LF-7 truck air spring

,

Hendrickson S25873 air suspension spring

,

1V 8774F replacement air spring

1V 8774F Truck Air Spring Suitable for Firestone 1T19LF-7/Hendrickson S25873

1V 8774F Truck Air Spring manufactured to specifications matching Firestone 1T19LF-7/Hendrickson S25873. This air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-8774 W01 358 8774/W013588774/W01358-8774/W01-3588774/W01-358-8774
Firestone 1T19LF-7 1T19LF 7/1T19LF7/1T19LF-7
Contitech 1110.5F-17P745 1110.5F 17P745/1110.5F17P745/1110.5F-17P745
Goodyear 1R14-172 / 566283042 1R14 172 566283042/1R14172566283042/1R14-172/566283042
Goodyear 1R14-183 / 1R14-190 / 566283044 1R14 183 1R14 190 566283044/1R141831R14190566283044/1R14-183/1R14-190/566283044
Hendrickson S25873/S27341 S25873 S27341/S25873S27341/S25873/S27341
Watson&Chalin AS0144 / AS0519 / AS01591G AS0144 AS0519 AS01591G/AS0144AS0519AS01591G/AS0144/AS0519/AS01591G
Technical Specifications
Specifications Parameters
Outer diameter φ275
Weight 7.931kg
Package Dimensions 30*30*37.5 kg
Natural height 527mm
Maximum height 507mm
Minimum height 168mm
Extended Height 530mm
Compressed Height 156mm
Top Plate Width 289mm
Piston Width 259mm
1V 8774F Truck Air Spring Drawing
1V 8774F Truck Air Spring Suitable for Firestone 1T19LF-7/Hendrickson S25873 0
Delivery Information
  • Delivery Time: Orders are typically shipped within 30 business days after payment is received.
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to international transportation, we need to pack according to strict requirements to avoid damage to the goods. If logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.

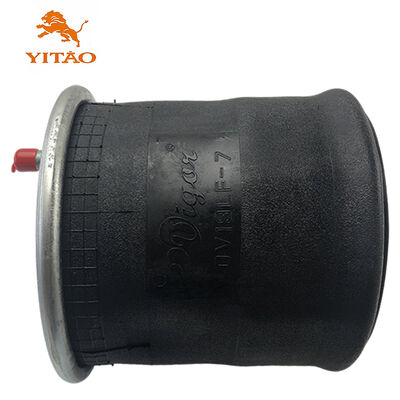

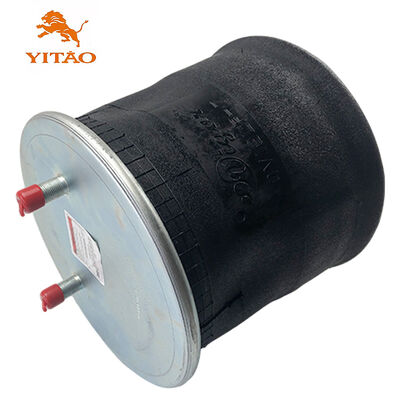

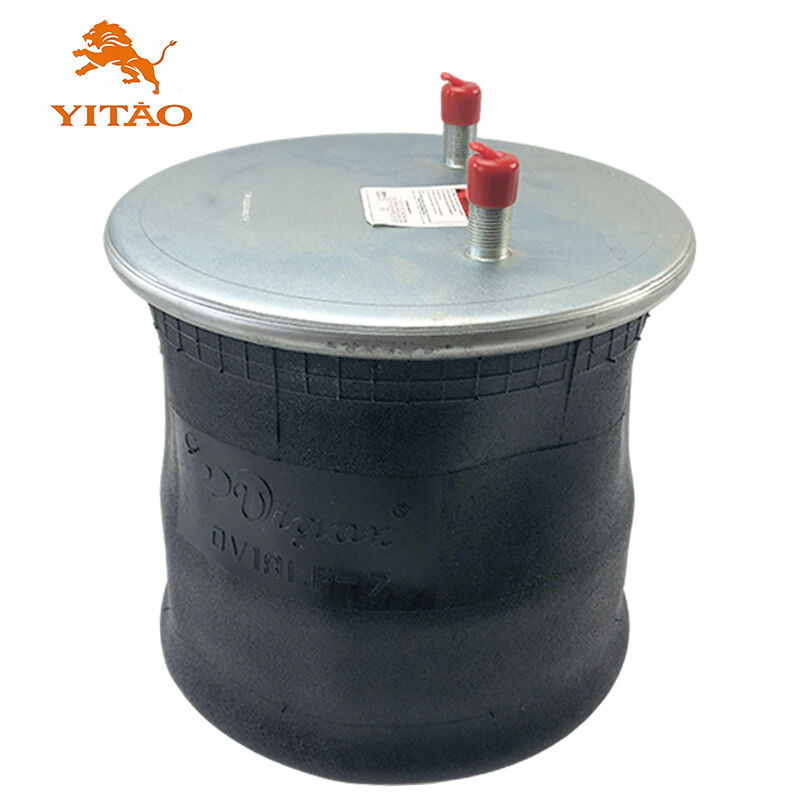

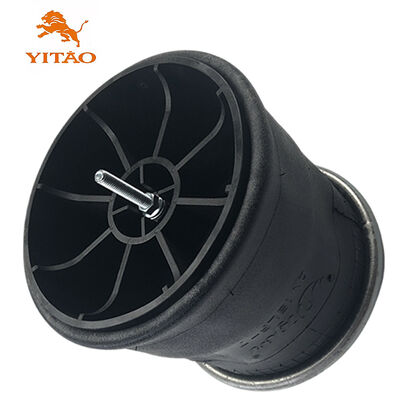

1T19LF-7 Truck Air Spring Real Pictures
1V 8774F Truck Air Spring Suitable for Firestone 1T19LF-7/Hendrickson S25873 1 1V 8774F Truck Air Spring Suitable for Firestone 1T19LF-7/Hendrickson S25873 2 1V 8774F Truck Air Spring Suitable for Firestone 1T19LF-7/Hendrickson S25873 3 1V 8774F Truck Air Spring Suitable for Firestone 1T19LF-7/Hendrickson S25873 4 1V 8774F Truck Air Spring Suitable for Firestone 1T19LF-7/Hendrickson S25873 5 1V 8774F Truck Air Spring Suitable for Firestone 1T19LF-7/Hendrickson S25873 6 1V 8774F Truck Air Spring Suitable for Firestone 1T19LF-7/Hendrickson S25873 7
Images shown are for reference only. Actual product may vary slightly.
