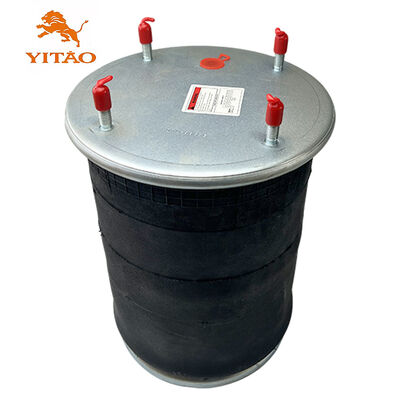

1V 8766 Truck Air Spring Suitable for Firestone W01-M58-8766/Phoenix 1D28D2

1V 8766 Truck Air Spring Suitable for Firestone W01-M58-8766/Phoenix 1D28D2
1V 8766 Truck Air Spring Suitable for Firestone W01-M58-8766/Phoenix 1D28D2 1V 8766 Truck Air Spring Suitable for Firestone W01-M58-8766/Phoenix 1D28D2 1V 8766 Truck Air Spring Suitable for Firestone W01-M58-8766/Phoenix 1D28D2 1V 8766 Truck Air Spring Suitable for Firestone W01-M58-8766/Phoenix 1D28D2

Large Image :  1V 8766 Truck Air Spring Suitable for Firestone W01-M58-8766/Phoenix 1D28D2

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 8766
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V 8766 Truck Air Spring Suitable for Firestone W01-M58-8766/Phoenix 1D28D2

Description
OE Number: W01-M58-8766,912NP02,1D28D2,D13B03,1R14-758,1T19E-4,3.229.0005.01 OE NO2: 3.229.0013.00,3.229.0006.01,507782,US96681F,21222673,M060770
Type: Truck Air Spring Application: For Truck Air Suspension
Packing: Neutral Packing Or Customized Packing Condition: New
Warranty: 1 Year Minimum Order Quantity: 50 Pieces
Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate Material: Rubber
Piston Material: Iron
Highlight:

Firestone truck air spring replacement

,

Phoenix 1D28D2 air spring

,

W01-M58-8766 compatible air spring

1V 8766 Truck Air Spring Suitable for Firestone W01-M58-8766/Phoenix 1D28D2

1V 8766 Truck Air Spring manufactured to specifications matching Firestone W01-M58-8766/Phoenix 1D28D2. This air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-M58-8766 W01 M58 8766/W01M588766/W01M58-8766/W01-M588766/W01-M58-8766
Contitech 912NP02 :912NP02
Phoenix 1D28D2 :1D28D2
Dunlop FR D13B03 :D13B03
Goodyear 1R14-758 1R14 758/1R14758/1R14-758
CF Gomma 1T19E-4 1T19E 4/1T19E4/1T19E-4
SAF 3.229.0005.01/3.229.0013.00/3.229.0006.01 3.229.0005.01 3.229.0013.00 3.229.0006.01/3.229.0005.013.229.0013.003.229.0006.01/3.229.0005.01/3.229.0013.00/3.229.0006.01
Hendrickson 507782 :507782
Weweler US96681F :US96681F
ROR/Meritor 21222673 :21222673
Fruehauf M060770 :M060770
Technical Specifications
Specifications Parameters
Outer diameter φ265
Weight To be updated
Package Dimensions To be updated
Natural height 801mm
Maximum height 781mm
Minimum height 274mm
Extended Height 790mm
Compressed Height 262mm
Top Plate Width 289mm
Piston Width 260mm
1V 8766 Truck Air Spring Drawing
1V 8766 Truck Air Spring Suitable for Firestone W01-M58-8766/Phoenix 1D28D2 0
Delivery Information
  • Delivery Time: Orders are typically shipped within 30 business days after payment is received.
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to international transportation, we need to pack according to strict requirements to avoid damage to the goods. If logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.

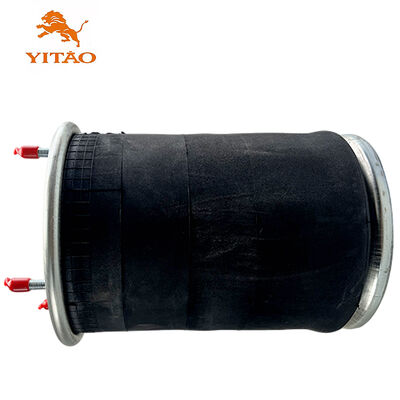

W01-M58-8766 Truck Air Spring Real Pictures
1V 8766 Truck Air Spring Suitable for Firestone W01-M58-8766/Phoenix 1D28D2 1 1V 8766 Truck Air Spring Suitable for Firestone W01-M58-8766/Phoenix 1D28D2 2 1V 8766 Truck Air Spring Suitable for Firestone W01-M58-8766/Phoenix 1D28D2 3 1V 8766 Truck Air Spring Suitable for Firestone W01-M58-8766/Phoenix 1D28D2 4 1V 8766 Truck Air Spring Suitable for Firestone W01-M58-8766/Phoenix 1D28D2 5 1V 8766 Truck Air Spring Suitable for Firestone W01-M58-8766/Phoenix 1D28D2 6 1V 8766 Truck Air Spring Suitable for Firestone W01-M58-8766/Phoenix 1D28D2 7
Images shown are for reference only. Actual product may vary slightly.
