1V 8774 Truck Air Spring Suitable for Firestone W01-M58-8774

1V 8774 Truck Air Spring Suitable for Firestone W01-M58-8774
1V 8774 Truck Air Spring Suitable for Firestone W01-M58-8774 1V 8774 Truck Air Spring Suitable for Firestone W01-M58-8774 1V 8774 Truck Air Spring Suitable for Firestone W01-M58-8774 1V 8774 Truck Air Spring Suitable for Firestone W01-M58-8774

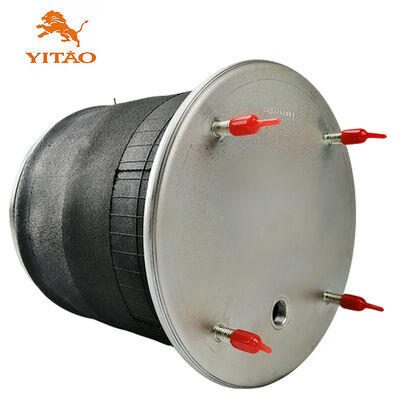

Large Image :  1V 8774 Truck Air Spring Suitable for Firestone W01-M58-8774

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 8774
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V 8774 Truck Air Spring Suitable for Firestone W01-M58-8774

Description
OE Number: W01-M58-8774 Type: Truck Air Spring
Application: For Truck Air Suspension Packing: Neutral Packing Or Customized Packing
Condition: New Warranty: 1 Year
Minimum Order Quantity: 50 Pieces Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate
Material: Rubber Piston Material: Iron
Highlight:

Firestone W01-M58-8774 truck air spring

,

1V 8774 truck air suspension

,

truck air spring with warranty

1V 8774 Truck Air Spring Suitable for Firestone W01-M58-8774
Product Overview

1V 8774 Truck Air Spring manufactured to specifications matching Firestone W01-M58-8774. This air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-M58-8774 W01-M58-8774/W01M58-8774/W01-M588774/W01M588774/W01 M58 8774
Technical Specifications
Specifications Parameters
Outer diameter φ275
Weight 12.64 kg
Package Dimensions 30*30*39.5cm
Natural height 563mm
Maximum height 537mm
Minimum height 168mm
Extended Height 560mm
Compressed Height 180mm
Top Plate Width 289mm
Piston Width 260mm
Product Drawing
1V 8774 Truck Air Spring Suitable for Firestone W01-M58-8774 0
Delivery Information
  • Delivery Time: Orders are typically shipped within 30 business days after payment is received.
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions.

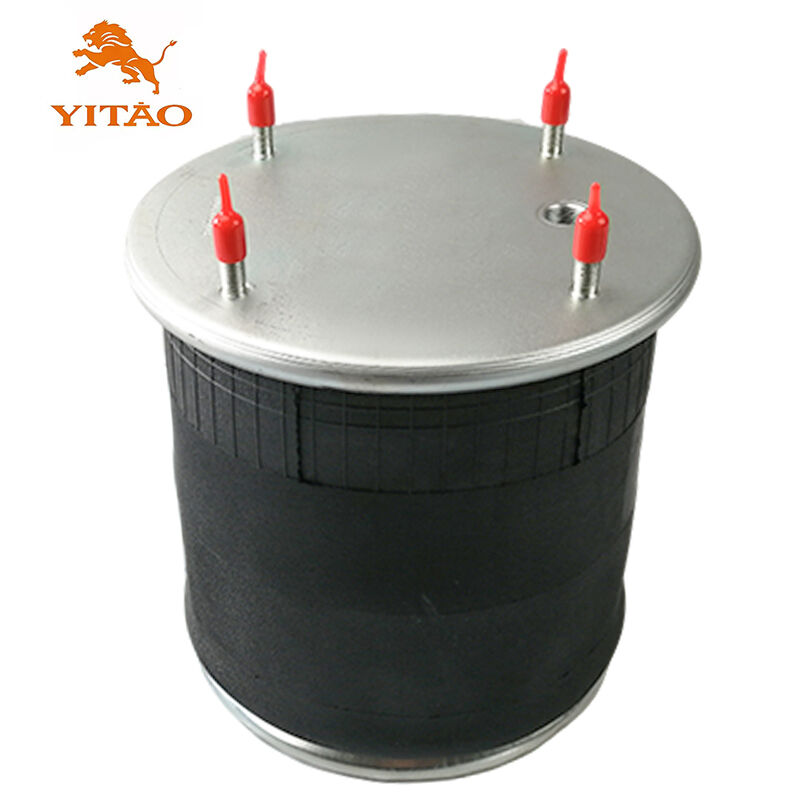

Product Images
1V 8774 Truck Air Spring Suitable for Firestone W01-M58-8774 1 1V 8774 Truck Air Spring Suitable for Firestone W01-M58-8774 2 1V 8774 Truck Air Spring Suitable for Firestone W01-M58-8774 3 1V 8774 Truck Air Spring Suitable for Firestone W01-M58-8774 4 1V 8774 Truck Air Spring Suitable for Firestone W01-M58-8774 5 1V 8774 Truck Air Spring Suitable for Firestone W01-M58-8774 6 1V 8774 Truck Air Spring Suitable for Firestone W01-M58-8774 7
Images shown are for reference only. Actual product may vary slightly.
