1V 8748 Truck Air Spring Suitable for Firestone W01-358-8748/Contitech 1010-21P570

1V 8748 Truck Air Spring Suitable for Firestone W01-358-8748/Contitech 1010-21P570
1V 8748 Truck Air Spring Suitable for Firestone W01-358-8748/Contitech 1010-21P570 1V 8748 Truck Air Spring Suitable for Firestone W01-358-8748/Contitech 1010-21P570 1V 8748 Truck Air Spring Suitable for Firestone W01-358-8748/Contitech 1010-21P570 1V 8748 Truck Air Spring Suitable for Firestone W01-358-8748/Contitech 1010-21P570

Large Image :  1V 8748 Truck Air Spring Suitable for Firestone W01-358-8748/Contitech 1010-21P570

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 8748
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V 8748 Truck Air Spring Suitable for Firestone W01-358-8748/Contitech 1010-21P570

Description
OE Number: W01-358-8748,1010-21P570,1R13-152,566-26-3-071,90557167,90557288,8570,6394,AR250 (14,15),RL250 (14,15) Type: Truck Air Spring
Application: For Truck Air Suspension Packing: Neutral Packing Or Customized Packing
Condition: New Warranty: 1 Year
Minimum Order Quantity: 50 Pieces Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate
Material: Rubber Piston Material: Plastic
Highlight:

Truck Air Spring for Firestone W01-358-8748

,

Truck Air Spring for Contitech 1010-21P570

,

1V 8748 Truck Air Spring

1V 8748 Truck Air Spring
Product Overview

Manufactured to specifications matching Firestone W01-358-8748/Contitech 1010-21P570, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-8748 W01 358 8748/W013588748/W01358-8748/W01-3588748/W01-358-8748
Contitech 1010-21P570 1010 21P570/101021P570/1010-21P570
Goodyear 1R13-152 / 566-26-3-071 1R13 152 566 26 3 071/1R13152566263071/1R13-152/566-26-3-071
Neway 90557167 / 90557288 90557167 90557288/9055716790557288/90557167/90557288
Triangle 8570/6394 8570 6394/85706394/8570/6394
SAF Holland AR250(14,15) AR250 14,15)
SAF Holland RL250(14,15) RL250 (14,15)
Technical Specifications
Specifications Parameters
Outer diameter φ246
Weight 8.41 kg
Package Dimensions 27*27*45cm
Natural height 614mm
Maximum height 594mm
Minimum height 178mm
Extended Height To be updated
Compressed Height To be updated
Top Plate Width 262mm
Piston Width 261mm
Product Drawing
1V 8748 Truck Air Spring Suitable for Firestone W01-358-8748/Contitech 1010-21P570 0
Delivery Information
  • Delivery Time: Orders are typically shipped within 30 business days after payment is received.
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions.

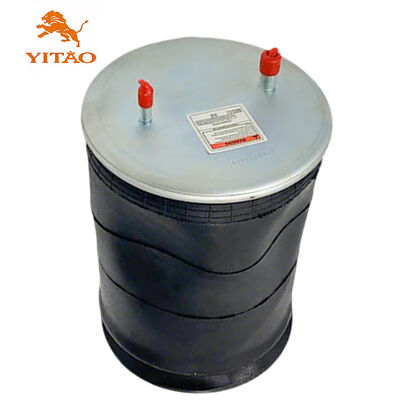

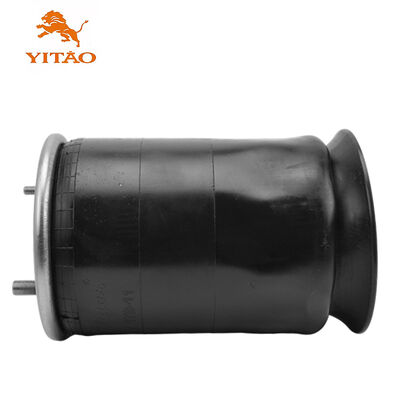

Product Images
1V 8748 Truck Air Spring Suitable for Firestone W01-358-8748/Contitech 1010-21P570 1 1V 8748 Truck Air Spring Suitable for Firestone W01-358-8748/Contitech 1010-21P570 2 1V 8748 Truck Air Spring Suitable for Firestone W01-358-8748/Contitech 1010-21P570 3 1V 8748 Truck Air Spring Suitable for Firestone W01-358-8748/Contitech 1010-21P570 4 1V 8748 Truck Air Spring Suitable for Firestone W01-358-8748/Contitech 1010-21P570 5 1V 8748 Truck Air Spring Suitable for Firestone W01-358-8748/Contitech 1010-21P570 6 1V 8748 Truck Air Spring Suitable for Firestone W01-358-8748/Contitech 1010-21P570 7
Images shown are for reference only. Actual product may vary slightly.
