1V 9131 Truck Air Spring Suitable for Firestone 1T15M-9/Goodyear 1R12-721

1V 9131 Truck Air Spring Suitable for Firestone 1T15M-9/Goodyear 1R12-721
1V 9131 Truck Air Spring Suitable for Firestone 1T15M-9/Goodyear 1R12-721 1V 9131 Truck Air Spring Suitable for Firestone 1T15M-9/Goodyear 1R12-721 1V 9131 Truck Air Spring Suitable for Firestone 1T15M-9/Goodyear 1R12-721 1V 9131 Truck Air Spring Suitable for Firestone 1T15M-9/Goodyear 1R12-721

Large Image :  1V 9131 Truck Air Spring Suitable for Firestone 1T15M-9/Goodyear 1R12-721

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 9131
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V 9131 Truck Air Spring Suitable for Firestone 1T15M-9/Goodyear 1R12-721

Description
OE Number: W01-M58-9131,1T15M-9,W01-M58-0736,4159NP09,1R12-721,1DK21B8,1T323-40 OE NO2: KR509-9131,128147123,128147123,MOO1774,D12B04,UJB0358,UJY0099,58051210
Type: Truck Air Spring Application: For Truck Air Suspension
Packing: Neutral Packing Or Customized Packing Condition: New
Warranty: 1 Year Minimum Order Quantity: 50 Pieces
Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate Material: Rubber
Piston Material: Plastic
Highlight:

Truck Air Spring for Firestone 1T15M-9

,

Truck Air Spring for Goodyear 1R12-721

,

Truck Air Spring with warranty

1V 9131 Truck Air Spring Suitable for Firestone 1T15M-9/Goodyear 1R12-721
1V 9131 Truck Air Spring manufactured to specifications matching Firestone 1T15M-9/Goodyear 1R12-721. This air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.
Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-M58-9131 W01 M58 9131/W01M589131/W01M58-9131/W01-M589131/W01-M58-9131
Firestone 1T15M-9 1T15M 9/1T15M9/1T15M-9
Firestone W01-M58-0736 W01 M58 0736/W01M580736/W01M58-0736/W01-M580736/W01-M58-0736
Contitech 4159NP09 :4159NP09
Goodyear 1R12-721 1R12 721/1R12721/1R12-721
Phoenix 1DK21B8 :1DK21B8
CF Gomma 1T323-40 1T323 40/1T32340/1T323-40
Taurus KR509-9131 KR509 9131/KR5099131/KR509-9131
Acerbi 128147123 :128147123
Viberti 128147123 :128147123
SMB MOO1774 :MOO1774
Dunlop D12B04 :D12B04
Fruehauf UJB0358 / UJY0099 UJB0358 UJY0099/UJB0358UJY0099/UJB0358/UJY0099
Cardi 58051210 :58051210
Technical Specifications
Specifications Parameters
Outer diameter φ255
Weight 8.113 kg
Package Dimensions 27*27*36cm
Natural height 645mm
Maximum height 625mm
Minimum height 225mm
Extended Height 650mm
Compressed Height 234mm
Top Plate Width 231mm
Piston Width 260mm
1V 9131 Truck Air Spring Drawing
1V 9131 Truck Air Spring Suitable for Firestone 1T15M-9/Goodyear 1R12-721 0
Delivery Information
  • Delivery Time: Orders are typically shipped within 30 business days after payment is received.
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to international transportation, we need to pack according to strict requirements to avoid damage to the goods. If logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.

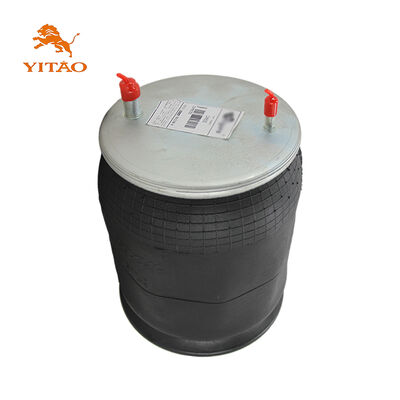

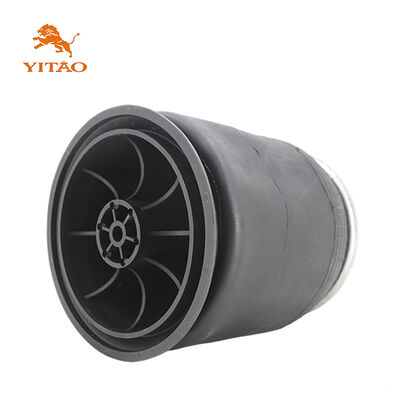

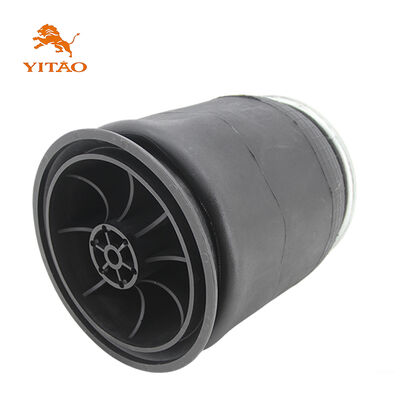

W01-M58-9131, 1T15M-9 Truck Air Spring Real Pictures
1V 9131 Truck Air Spring Suitable for Firestone 1T15M-9/Goodyear 1R12-721 1 1V 9131 Truck Air Spring Suitable for Firestone 1T15M-9/Goodyear 1R12-721 2 1V 9131 Truck Air Spring Suitable for Firestone 1T15M-9/Goodyear 1R12-721 3 1V 9131 Truck Air Spring Suitable for Firestone 1T15M-9/Goodyear 1R12-721 4 1V 9131 Truck Air Spring Suitable for Firestone 1T15M-9/Goodyear 1R12-721 5
Images shown are for reference only. Actual product may vary slightly.
