1V 9141 Truck Air Spring Suitable for Firestone 1T19F-7/Sauer P50-733

1V 9141 Truck Air Spring Suitable for Firestone 1T19F-7/Sauer P50-733
1V 9141 Truck Air Spring Suitable for Firestone 1T19F-7/Sauer P50-733 1V 9141 Truck Air Spring Suitable for Firestone 1T19F-7/Sauer P50-733 1V 9141 Truck Air Spring Suitable for Firestone 1T19F-7/Sauer P50-733 1V 9141 Truck Air Spring Suitable for Firestone 1T19F-7/Sauer P50-733

Large Image :  1V 9141 Truck Air Spring Suitable for Firestone 1T19F-7/Sauer P50-733

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 9141
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V 9141 Truck Air Spring Suitable for Firestone 1T19F-7/Sauer P50-733

Description
OE Number: W01-358-9141,1T19F-7,1R14-215,P50-733,1003589121C,AS-0013,DZ96259440305 Type: Truck Air Spring
Application: For Truck Air Suspension Packing: Neutral Packing Or Customized Packing
Condition: New Warranty: 1 Year
Minimum Order Quantity: 50 Pieces Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate
Material: Rubber Piston Material: Aluminum
Highlight:

Firestone truck air spring

,

Sauer P50-733 air spring

,

1V 9141 air suspension

1V 9141 Truck Air Spring Suitable for Firestone 1T19F-7/Sauer P50-733
Product Overview

1V 9141 Truck Air Spring manufactured to specifications matching Firestone 1T19F-7/Sauer P50-733. This air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-9141 / 1T19F-7 W01 358 9141 1T19F 7/W0135891411T19F7/W01-358-9141/1T19F-7
Goodyear 1R14-215 1R14 215/1R14215/1R14-215
Sauer P50-733 P50 733/P50733/P50-733
Ridewell 1003589121C :1003589121C
Watson & Chalin AS-0013 AS 0013/AS0013/AS-0013
Shaanxi Automobile DZ96259440305 :DZ96259440305
Technical Specifications
Specifications Parameters
Outer diameter φ265
Weight 10.901 kg
Package Dimensions 30*30*39.5cm
Natural height 558mm
Maximum height 538mm
Minimum height 197mm
Extended Height 560mm
Compressed Height 180mm
Top Plate Width 289mm
Piston Width 260mm
Product Drawing
1V 9141 Truck Air Spring Suitable for Firestone 1T19F-7/Sauer P50-733 0
Delivery Information
  • Delivery Time: Orders are typically shipped within 30 business days after payment is received.
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to international transportation, we need to pack according to strict requirements to avoid damage to the goods. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions.

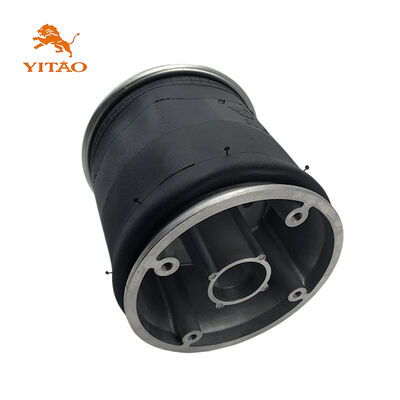

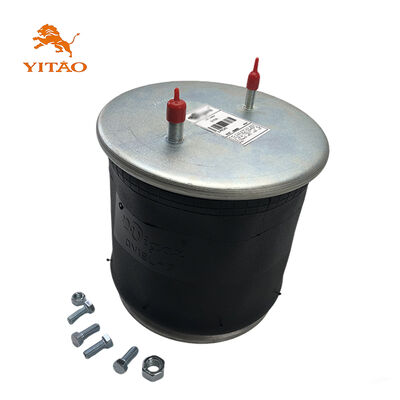

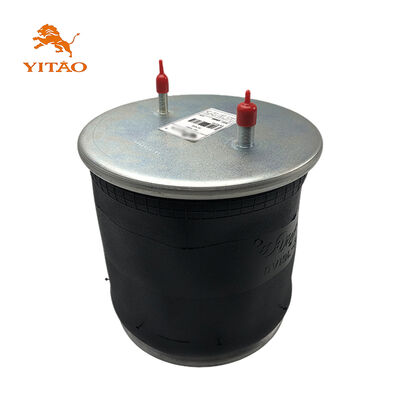

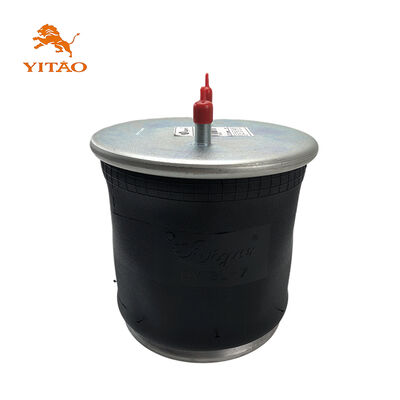

Product Images
1V 9141 Truck Air Spring Suitable for Firestone 1T19F-7/Sauer P50-733 1 1V 9141 Truck Air Spring Suitable for Firestone 1T19F-7/Sauer P50-733 2 1V 9141 Truck Air Spring Suitable for Firestone 1T19F-7/Sauer P50-733 3 1V 9141 Truck Air Spring Suitable for Firestone 1T19F-7/Sauer P50-733 4 1V 9141 Truck Air Spring Suitable for Firestone 1T19F-7/Sauer P50-733 5
Images shown are for reference only. Actual product may vary slightly.
