1V 9144 Truck Air Spring Suitable for Firestone W01-358-9144/Goodyear 1R13-047

Large Image : 1V 9144 Truck Air Spring Suitable for Firestone W01-358-9144/Goodyear 1R13-047

Product Details:

Place of Origin:	China
Brand Name:	YITAO
Certification:	IATF16949
Model Number:	1V 9144

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable in person
Packaging Details:	Carton
Delivery Time:	30
Payment Terms:	T/T
Supply Ability:	5000pieces/Month

Contact Now

1V 9144 Truck Air Spring Suitable for Firestone W01-358-9144/Goodyear 1R13-047

Description

OE Number:	W01-358-9144,1T19F-7,1110.5-17A377,1R13-047	OE NO2:	90557155,90557323,1681748C1,8377,6365,1R14160,566283021
Type:	Truck Air Spring	Application:	For Truck Air Suspension
Packing:	Neutral Packing Or Customized Packing	Condition:	New
Warranty:	1 Year	Minimum Order Quantity:	50 Pieces
Sealing Configuration:	Crimp Cover Plate + Vulcanized Sealing Plate	Material:	Rubber
Piston Material:	Aluminum
Highlight:	Truck Air Spring for Firestone W01-358-9144 , Truck Air Spring compatible with Goodyear 1R13-047 , Heavy-duty Truck Air Spring with warranty

1V 9144 Truck Air Spring Suitable for Firestone W01-358-9144/Goodyear 1R13-047

1V 9144 Truck Air Spring Manufactured to specifications matching Firestone W01-358-9144/Goodyear 1R13-047, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References

Brand	Reference Numbers	Numbering Discrepancy
Firestone	W01-358-9144	W01 358 9144/W013589144/W01358-9144/W01-3589144/W01-358-9144
Firestone	1T19F-7	1T19F 7/1T19F7/1T19F-7
Contitech	1110.5-17A377	1110.5 17A377/1110.517A377/1110.5-17A377
Goodyear	1R13-047 / 1R14160	1R13 047 1R14160/1R130471R14160/1R13-047/1R14160
Goodyear	566283021	:566283021
Neway	90557155 / 90557323	90557155 90557323/9055715590557323/90557155/90557323
Navistar	1681748C1	:1681748C1
Triangle	8377/6365	8377 6365/83776365/8377/6365

Technical Specifications

Specifications	Parameters
Outer diameter	φ265
Weight	10.948 kg
Package Dimensions	303039.5cm
Natural height	558mm
Maximum height	538mm
Minimum height	198mm
Extended Height	540mm
Compressed Height	180mm
Top Plate Width	289mm
Piston Width	260mm

1V 9144 Truck Air Spring Drawing

Delivery Information

Delivery Time: Orders are typically shipped within 30 business days after payment is received.
Packing Method: Brown carton packing; we can also pack according to your requirements.
Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.

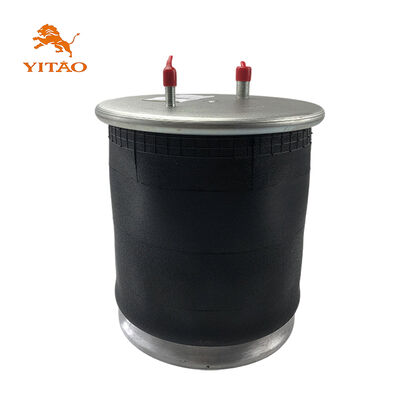

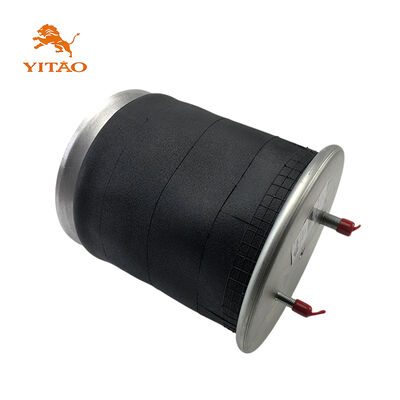

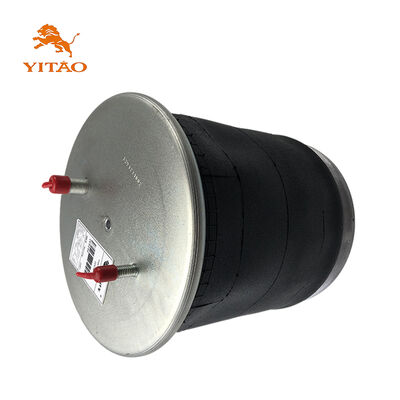

W01-358-9144, 1T19F-7 Truck Air Spring Real Pictures

Images shown are for reference only. Actual product may vary slightly.
