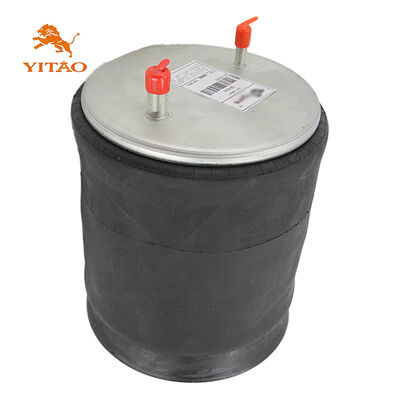

1V 9192 Truck Air Spring Suitable for Contitech 910-19P326/Dayton 352-9192

Large Image : 1V 9192 Truck Air Spring Suitable for Contitech 910-19P326/Dayton 352-9192

Product Details:

Place of Origin:	China
Brand Name:	YITAO
Certification:	IATF16949
Model Number:	1V 9192

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable in person
Packaging Details:	Carton
Delivery Time:	30
Payment Terms:	T/T
Supply Ability:	5000pieces/Month

Contact Now

1V 9192 Truck Air Spring Suitable for Contitech 910-19P326/Dayton 352-9192

Description

OE Number:	W01-358-9177,1110.5-17A316,4810N04,1R14-028/029,M3517,90557003,1090216,S2065,6426	OE NO2:	8316,6365,Sc2046,3529177,554779C,1003589177C,3130494
Type:	Truck Air Spring	Application:	For Truck Air Suspension
Packing:	Neutral Packing Or Customized Packing	Condition:	New
Warranty:	1 Year	Minimum Order Quantity:	50 Pieces
Sealing Configuration:	Crimp Cover Plate + Vulcanized Sealing Plate	Material:	Rubber
Piston Material:	Aluminum
Highlight:	Truck Air Spring Contitech 910-19P326 , Truck Air Spring Dayton 352-9192 , 1V 9192 Truck Air Spring

1V 9192 Truck Air Spring Suitable for Contitech 910-19P326/Dayton 352-9192

1V 9192 Truck Air Spring Manufactured to specifications matching Contitech 910-19P326/Dayton 352-9192, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References

Brand	Reference Numbers	Numbering Discrepancy
Firestone	W01-358-9192	W01 358 9192/W013589192/W01358-9192/W01-3589192/W01-358-9192
Goodyear	1R12-167	1R12 167/1R12167/1R12-167
Contitech	910-19P326	910 19P326/91019P326/910-19P326
Taurus	AS-509-9192	AS 509 9192/AS5099192/AS-509-9192
Dayton	352-9192	352 9192/3529192/352-9192
Neway	90557086 / 90557135	90557086 90557135/9055708690557135/90557086 / 90557135
Neway	90557108 / 90557136	90557108 90557136/9055710890557136/90557108 / 90557136
Triangle	8326	:8326
Watson&Chalin	AS-0038/0046	AS 0038 0046/AS00380046/AS-0038/0046
Hendrickson	B6295	:B6295

Technical Specifications

Specifications	Parameters
Outer diameter	φ255
Weight	To be updated
Package Dimensions	272745cm
Natural height	634mm
Maximum height	600mm
Minimum height	197mm
Extended Height	597mm
Compressed Height	201mm
Top Plate Width	231mm
Piston Width	260mm

1V 9192 Truck Air Spring Drawing

Delivery Information

Delivery Time: Orders are typically shipped within 30 business days after payment is received.
Packing Method: Brown carton packing; we can also pack according to your requirements.
Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.

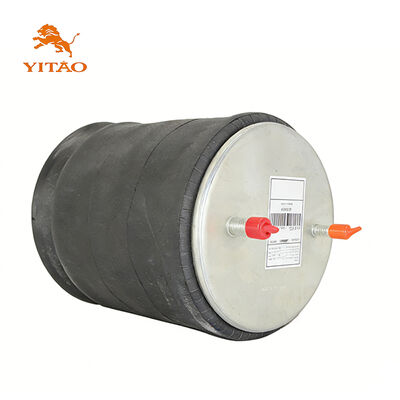

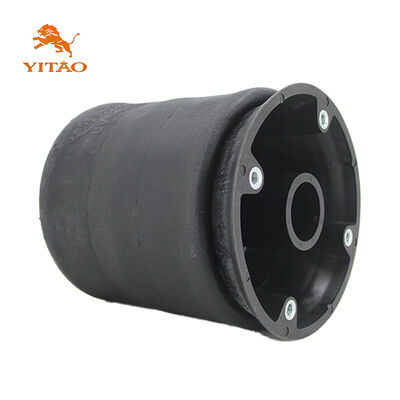

W01-358-9177 1110.5-17A316 Truck Air Spring Real Pictures

Images shown are for reference only. Actual product may vary slightly.
