1V 9177 Truck Air Spring Suitable for Contitech 4810N04/AB Voivo 3130494

1V 9177 Truck Air Spring Suitable for Contitech 4810N04/AB Voivo 3130494
1V 9177 Truck Air Spring Suitable for Contitech 4810N04/AB Voivo 3130494 1V 9177 Truck Air Spring Suitable for Contitech 4810N04/AB Voivo 3130494 1V 9177 Truck Air Spring Suitable for Contitech 4810N04/AB Voivo 3130494 1V 9177 Truck Air Spring Suitable for Contitech 4810N04/AB Voivo 3130494

Large Image :  1V 9177 Truck Air Spring Suitable for Contitech 4810N04/AB Voivo 3130494

Product Details:
Place of Origin: China
Brand Name: YITAO / YICONTON / Vigor
Certification: IATF16949
Model Number: 1V9177
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V 9177 Truck Air Spring Suitable for Contitech 4810N04/AB Voivo 3130494

Description
OE / OEM References: Navistar 554779C; Volvo 3130494; Hendrickson Trailer S2065 Aftermarket Cross References: Firestone W01-358-9177; ContiTech 1110.5-17A316; 4810N04; Goodyear 1R14-028; Dayton 3529177
Type: Truck Air Spring Application: For Truck Air Suspension
Packing: Neutral Packing Or Customized Packing Condition: New
Warranty: 14 Months From Bill Of Lading (B/L) Date Minimum Order Quantity: 50 Pieces
Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate Material: Rubber
Piston Material: Aluminium
Highlight:

Volvo truck air spring replacement

,

Contitech 4810N04 air spring

,

Volvo 3130494 compatible air spring

1V 9177 Truck Air Spring Suitable for Contitech 4810N04/AB Voivo 3130494
Manufactured to specifications matching Contitech 4810N04/AB Voivo 3130494, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.
Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-9177 W01 358 9177/W013589177/W01358-9177/W01-3589177/W01-358-9177
Contitech 1110.5-17A316 1110.5 17A316/1110.517A316/1110.5-17A316
Contitech 4810N04 :4810N04
Goodyear 1R14-028/029 1R14 028 029/1R14028029/1R14-028/029
Brake&Whee M3517 :M3517
Holland(Neway) 90557003 :90557003
R&S Truck&Body 1090216 :1090216
Hendrickson Trailer S2065 :S2065
Tuthill 6426 :6426
Triangle 8316/6365 8316 6365/83166365/8316/6365
Leland Sc2046 :Sc2046
Dayton 3529177 :3529177
Navistar 554779C :554779C
Ridewell 1003589177C :1003589177C
Voivo 3130494 :3130494
Technical Specifications
Specifications Parameters
Outer diameter φ265
Weight 11.368 kg
Package Dimensions 30*30*39.5cm
Natural height 558mm
Maximum height 538mm
Minimum height 196mm
Extended Height 540mm
Compressed Height 180mm
Top Plate Width 289mm
Piston Width 200mm
1V 9177 Truck Air Spring Drawing
Technical drawing of 1V 9177 Truck Air Spring
Delivery Information
  • Delivery Time: Orders are typically shipped within 30 business days after payment is received.
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.

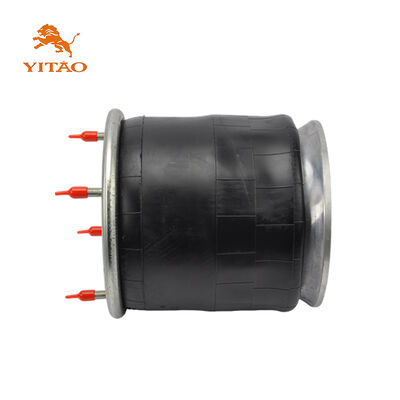

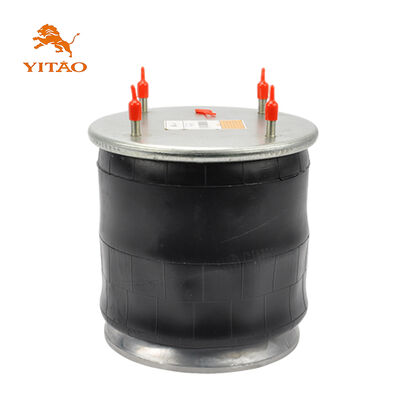

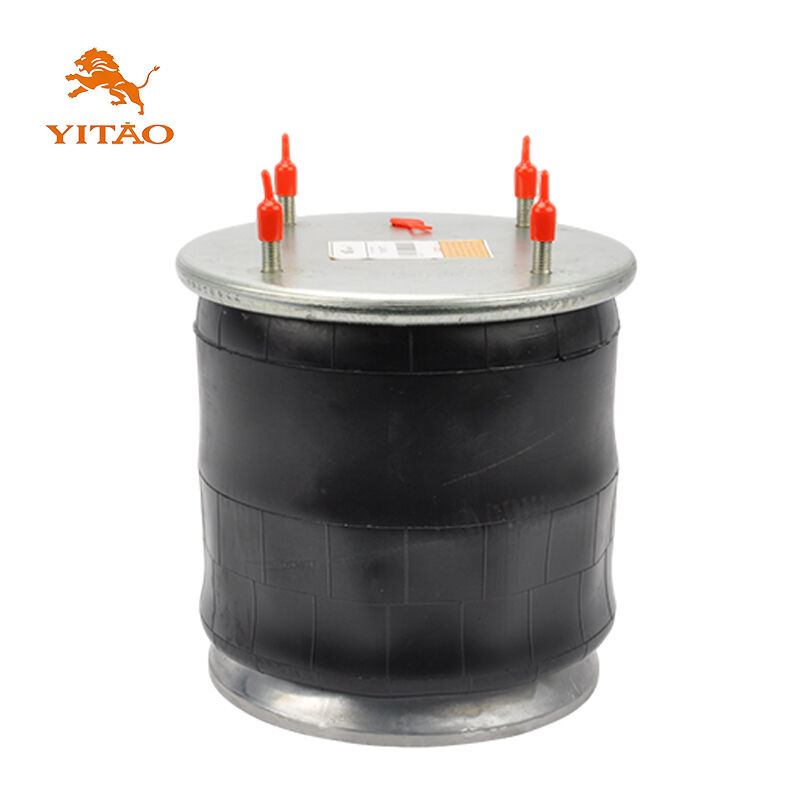

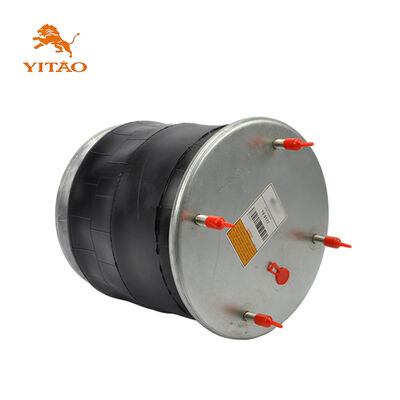

Sc2046 W01-358-9177 Truck Air Spring Real Pictures
Real photo of Sc2046 W01-358-9177 Truck Air Spring
Close-up view of truck air spring mounting points and connections
Detailed shot of air spring rubber bellows and metal components
Manufacturing quality inspection of truck air spring
Packaged truck air spring ready for shipment
Images shown are for reference only. Actual product may vary slightly.
