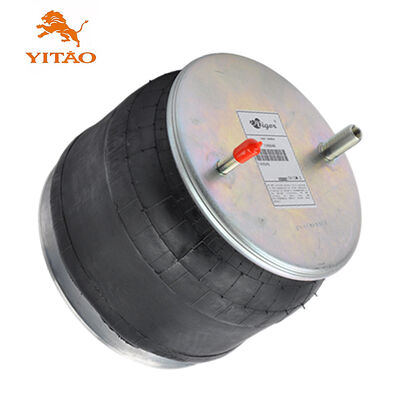

1V 8646 Truck Air Spring Suitable for Firestone W01-358-8646/QIND RT1320325A1

1V 8646 Truck Air Spring Suitable for Firestone W01-358-8646/QIND RT1320325A1
1V 8646 Truck Air Spring Suitable for Firestone W01-358-8646/QIND RT1320325A1 1V 8646 Truck Air Spring Suitable for Firestone W01-358-8646/QIND RT1320325A1 1V 8646 Truck Air Spring Suitable for Firestone W01-358-8646/QIND RT1320325A1 1V 8646 Truck Air Spring Suitable for Firestone W01-358-8646/QIND RT1320325A1

Large Image :  1V 8646 Truck Air Spring Suitable for Firestone W01-358-8646/QIND RT1320325A1

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 8646
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V 8646 Truck Air Spring Suitable for Firestone W01-358-8646/QIND RT1320325A1

Description
OE Number: W01-358-8646,1T15M-2,W01-358-9840,RT1320325A1 Type: Truck Air Spring
Application: For Truck Air Suspension Packing: Neutral Packing Or Customized Packing
Condition: New Warranty: 1 Year
Minimum Order Quantity: 50 Pieces Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate
Material: Rubber Piston Material: Aluminum
Highlight:

Truck Air Spring for Firestone W01-358-8646

,

Truck Air Spring compatible with QIND RT1320325A1

,

1V 8646 Truck Air Spring replacement

1V 8646 Truck Air Spring Suitable for Firestone W01-358-8646/QIND RT1320325A1
Product Overview

1V 8646 Truck Air Spring manufactured to specifications matching Firestone W01-358-8646/QIND RT1320325A1. This air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-8646 W01 358 8646/W013588646/W01358-8646/W01-3588646/W01-358-8646
Firestone 1T15M-2 1T15M 2/1T15M2/1T15M-2
Firestone W01-358-9840 W01 358 9840/W013589840/W01358-9840/W01-3589840/W01-358-9840
QIND RT1320325A1 :RT1320325A1
Technical Specifications
Specifications Parameters
Outer diameter φ265
Weight 7.481 kg
Package Dimensions 28*27*31cm
Natural height 380mm
Maximum height 355mm
Minimum height 137mm
Extended Height 381mm
Compressed Height 150mm
Top Plate Width 231mm
Piston Width 248mm
Product Drawing
1V 8646 Truck Air Spring Suitable for Firestone W01-358-8646/QIND RT1320325A1 0
Delivery Information
  • Delivery Time: Orders are typically shipped within 30 business days after payment is received.
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to international transportation, we need to pack according to strict requirements to avoid damage to the goods. If logistics information is stagnant during transportation, please wait patiently. If you have any questions, please contact us.

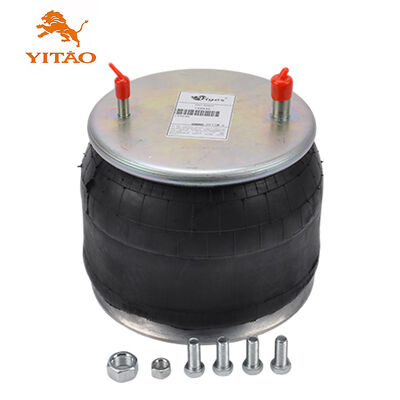

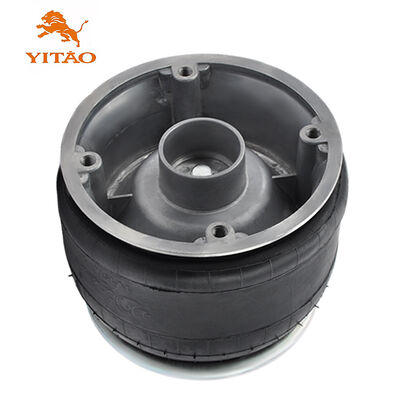

Product Images
1V 8646 Truck Air Spring Suitable for Firestone W01-358-8646/QIND RT1320325A1 1 1V 8646 Truck Air Spring Suitable for Firestone W01-358-8646/QIND RT1320325A1 2 1V 8646 Truck Air Spring Suitable for Firestone W01-358-8646/QIND RT1320325A1 3 1V 8646 Truck Air Spring Suitable for Firestone W01-358-8646/QIND RT1320325A1 4 1V 8646 Truck Air Spring Suitable for Firestone W01-358-8646/QIND RT1320325A1 5 1V 8646 Truck Air Spring Suitable for Firestone W01-358-8646/QIND RT1320325A1 6 1V 8646 Truck Air Spring Suitable for Firestone W01-358-8646/QIND RT1320325A1 7
Images shown are for reference only. Actual product may vary slightly.
