1V 8620SA Truck Air Spring Suitable for Firestone W01-M58-8620/Dunlop D11-B30

1V 8620SA Truck Air Spring Suitable for Firestone W01-M58-8620/Dunlop D11-B30
1V 8620SA Truck Air Spring Suitable for Firestone W01-M58-8620/Dunlop D11-B30 1V 8620SA Truck Air Spring Suitable for Firestone W01-M58-8620/Dunlop D11-B30 1V 8620SA Truck Air Spring Suitable for Firestone W01-M58-8620/Dunlop D11-B30 1V 8620SA Truck Air Spring Suitable for Firestone W01-M58-8620/Dunlop D11-B30

Large Image :  1V 8620SA Truck Air Spring Suitable for Firestone W01-M58-8620/Dunlop D11-B30

Product Details:
Place of Origin: China
Brand Name: YITAO / YICONTON / Vigor
Certification: IATF16949
Model Number: 1V8620SA
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V 8620SA Truck Air Spring Suitable for Firestone W01-M58-8620/Dunlop D11-B30

Description
OE / OEM References: BPW 05.429.40.03.0 Aftermarket Cross References: Firestone W01-M58-8620; Meritor MLF7047; Granning 15901; ContiTech 941MB; 50246; Phoenix 1DK21; Goodyear 1R11-700; Taurus UR7300-1T; WABCO 9518117000; Airtech 120262; 3941P
Type: Truck Air Spring Application: For Truck Air Suspension
Packing: Neutral Packing Or Customized Packing Condition: New
Warranty: 14 Months From Bill Of Lading (B/L) Date Minimum Order Quantity: 50 Pieces
Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate Material: Rubber
Piston Material: No Piston
Highlight:

1V 8620SA truck air spring

,

Firestone W01-M58-8620 air spring

,

Dunlop D11-B30 truck air spring

1V 8620SA Truck Air Spring Suitable for Firestone W01-M58-8620/Dunlop D11-B30
Manufactured to specifications matching Firestone W01-M58-8620/Dunlop D11-B30, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.
Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-M58-8620 W01 M58 8620/W01M588620/W01M58-8620/W01-M588620/W01-M58-8620
Firestone 1T17D-8.3 1T17D 8.3/1T17D8.3/1T17D-8.3
Firestone 50246 :50246
Contitech 941MB/BPW30 941MB BPW30/941MBBPW30/941MB/BPW30
Goodyear 1R11-700 1R11 700/1R11700/1R11-700
CF Gomma 1T300-36 1T300 36/1T30036/1T300-36
Airtech 120262/3941P 120262 3941P/1202623941P/120262/3941P
Pirelli 1T300-36(204466) 1T300 36(204466)/1T30036(204466)/1T300-36(204466)
BPW 05.429.40.03.0 05.429.40.03.0
Meritor MLF7047 :MLF7047
Granning 15901 :15901
Phoenix 1DK21 :1DK21
Dunlop D11-B30 D11 B30/D11B30/D11-B30
Taurus UR7300-1T UR7300 1T/UR73001T/UR7300-1T
WABCO 9518117000 :9518117000
Technical Specifications
Specifications Parameters
Outer diameter φ255
Weight 6.302 kg
Package Dimensions 27*27*36kg
Natural height 531mm
Maximum height To be updated
Minimum height To be updated
Extended Height To be updated
Compressed Height To be updated
Top Plate Width 262mm
Piston Width To be updated
1V 8620SA Truck Air Spring Drawing
Technical drawing of 1V 8620SA truck air spring
Delivery Information
  • Delivery Time: Orders are typically shipped within 30 business days after payment is received.
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to international transportation, we need to pack according to strict requirements to avoid damage to the goods. If logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.
W01-M58-8620, 1T17D-8.3 Truck Air Spring Real Pictures

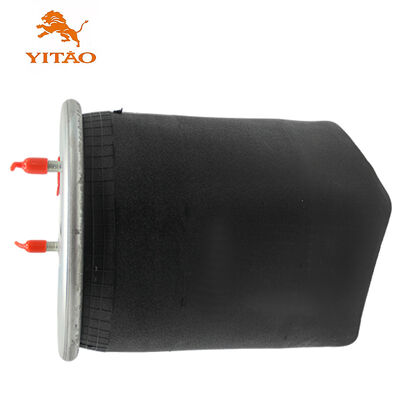

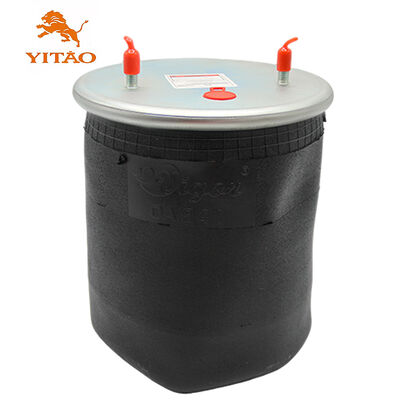

Truck air spring product view Truck air spring side view Truck air spring detailed view Close-up view of truck air spring mounting points and connections Detailed shot of air spring rubber bellows and metal components Manufacturing quality inspection of truck air spring Packaged truck air spring ready for shipment
Images shown are for reference only. Actual product may vary slightly.
