1V 8612 Truck Air Spring Suitable for Firestone W01-M58-8612/Goodyear 1R11-781

1V 8612 Truck Air Spring Suitable for Firestone W01-M58-8612/Goodyear 1R11-781
1V 8612 Truck Air Spring Suitable for Firestone W01-M58-8612/Goodyear 1R11-781 1V 8612 Truck Air Spring Suitable for Firestone W01-M58-8612/Goodyear 1R11-781 1V 8612 Truck Air Spring Suitable for Firestone W01-M58-8612/Goodyear 1R11-781 1V 8612 Truck Air Spring Suitable for Firestone W01-M58-8612/Goodyear 1R11-781

Large Image :  1V 8612 Truck Air Spring Suitable for Firestone W01-M58-8612/Goodyear 1R11-781

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 8612
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V 8612 Truck Air Spring Suitable for Firestone W01-M58-8612/Goodyear 1R11-781

Description
OE Number: W01-M58-8612,4022NP05,1R11-781 OE NO2: D11B41,3.229.0033.00,2619V
Type: Truck Air Spring Application: For Truck Air Suspension
Packing: Neutral Packing Or Customized Packing Condition: New
Warranty: 1 Year Minimum Order Quantity: 50 Pieces
Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate Material: Rubber
Piston Material: Plastic
Highlight:

1V 8612 truck air spring

,

Firestone W01-M58-8612 air spring

,

Goodyear 1R11-781 truck air spring

1V 8612 Truck Air Spring Suitable for Firestone W01-M58-8612/Goodyear 1R11-781

1V 8612 Truck Air Spring manufactured to specifications matching Firestone W01-M58-8612/Goodyear 1R11-781. This air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-M58-8612 W01 M58 8612/W01M588612/W01M58-8612/W01-M588612/W01-M58-8612
Contitech 4022NP05 :4022NP05
Goodyear 1R11-781 1R11 781/1R11781/1R11-781
Dunlop FR D11B41 :D11B41
SAF 3.229.0033.00 3.229.0033.00
SAF Type 2619V :2619V
Technical Specifications
Specifications Parameters
Outer diameter φ255
Weight 7.407 kg
Package Dimensions 28*28*37.5kg
Natural height 539mm
Maximum height 516mm
Minimum height 178mm
Extended Height 532mm
Compressed Height 587mm
Top Plate Width 262mm
Piston Width 261mm
1V 8612 Truck Air Spring Drawing
1V 8612 Truck Air Spring Suitable for Firestone W01-M58-8612/Goodyear 1R11-781 0
Delivery Information
  • Delivery Time: Orders are typically shipped within 30 business days after payment is received.
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to international transportation, we need to pack according to strict requirements to avoid damage to the goods. If logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.

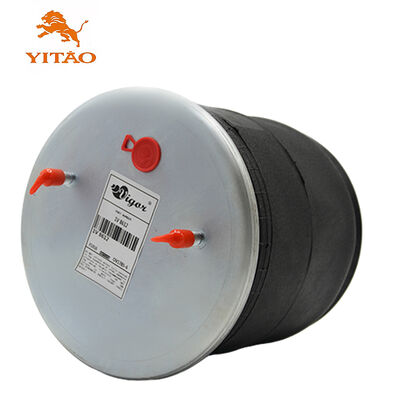

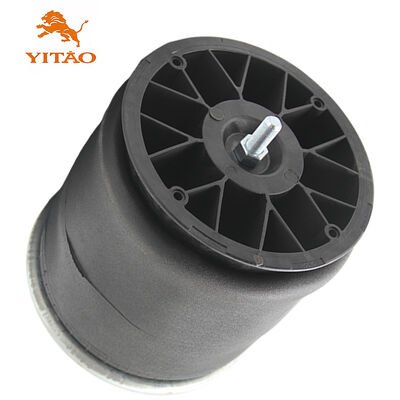

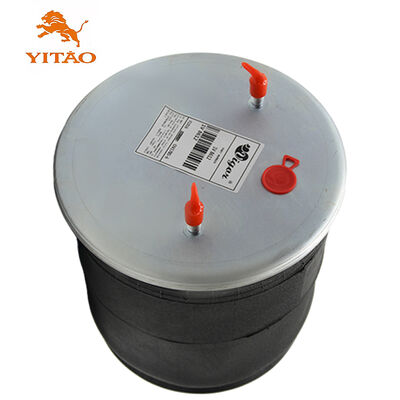

W01-M58-8612, 4022NP05 Truck Air Spring Real Pictures
1V 8612 Truck Air Spring Suitable for Firestone W01-M58-8612/Goodyear 1R11-781 1 1V 8612 Truck Air Spring Suitable for Firestone W01-M58-8612/Goodyear 1R11-781 2 1V 8612 Truck Air Spring Suitable for Firestone W01-M58-8612/Goodyear 1R11-781 3 1V 8612 Truck Air Spring Suitable for Firestone W01-M58-8612/Goodyear 1R11-781 4 1V 8612 Truck Air Spring Suitable for Firestone W01-M58-8612/Goodyear 1R11-781 5 1V 8612 Truck Air Spring Suitable for Firestone W01-M58-8612/Goodyear 1R11-781 6 1V 8612 Truck Air Spring Suitable for Firestone W01-M58-8612/Goodyear 1R11-781 7
Images shown are for reference only. Actual product may vary slightly.
