1V 8713 Truck Air Spring Suitable for Firestone W01-358-8713/Hendrickson HKA-180

1V 8713 Truck Air Spring Suitable for Firestone W01-358-8713/Hendrickson HKA-180
1V 8713 Truck Air Spring Suitable for Firestone W01-358-8713/Hendrickson HKA-180 1V 8713 Truck Air Spring Suitable for Firestone W01-358-8713/Hendrickson HKA-180 1V 8713 Truck Air Spring Suitable for Firestone W01-358-8713/Hendrickson HKA-180 1V 8713 Truck Air Spring Suitable for Firestone W01-358-8713/Hendrickson HKA-180

Large Image :  1V 8713 Truck Air Spring Suitable for Firestone W01-358-8713/Hendrickson HKA-180

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 8713
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V 8713 Truck Air Spring Suitable for Firestone W01-358-8713/Hendrickson HKA-180

Description
OE Number: W01-358-8713,1T17CA-6.5,1010-17.5S533,1R13-176 OE NO2: 8533,6382,HKA-180,S22948,137082,38713K,1R13-140
Type: Truck Air Spring Application: For Truck Air Suspension
Packing: Neutral Packing Or Customized Packing Condition: New
Warranty: 1 Year Minimum Order Quantity: 50 Pieces
Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate Material: Rubber
Piston Material: Plastic
Highlight:

1V 8713 truck air spring

,

Firestone W01-358-8713 air spring

,

Hendrickson HKA-180 air spring

1V 8713 Truck Air Spring Suitable for Firestone W01-358-8713/Hendrickson HKA-180
1V 8713 Truck Air Spring Manufactured to specifications matching Firestone W01-358-8713/Hendrickson HKA-180, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.
Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-8713 W01 358 8713/W013588713/W01358-8713/W01-3588713/W01-358-8713
Firestone 1T17CA-6.5 1T17CA 6.5/1T17CA6.5/1T17CA-6.5
Contitech 1010-17.5S533 1010 17.5S533/101017.5S533/1010-17.5S533
Goodyear 1R13-140 / 1R13-176 1R13 140 1R13 176/1R131401R13176/1R13-140/1R13-176
Airtech 137082 / 38713K 137082 38713K/13708238713K/137082/38713K
Triangle 8533 / 6382 8533 6382/85336382/8533/6382
Hendrickson HKA-180 / S22948 HKA 180 S22948/HKA180S22948/HKA-180/S22948
Technical Specifications
Specifications Parameters
Outer diameter φ270
Weight 8.038kg
Package Dimensions 28*28*37.5cm
Natural height 552mm
Maximum height 532mm
Minimum height 173mm
Extended Height To be updated
Compressed Height To be updated
Top Plate Width 262mm
Piston Width 234mm
1V 8713 Truck Air Spring Drawing
1V 8713 Truck Air Spring Suitable for Firestone W01-358-8713/Hendrickson HKA-180 0
Delivery Information
  • Delivery Time: Orders are typically shipped within 30 business days after payment is received.
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.

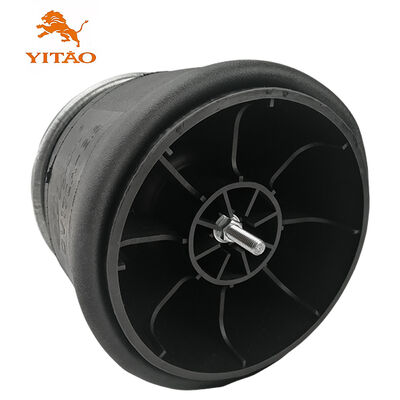

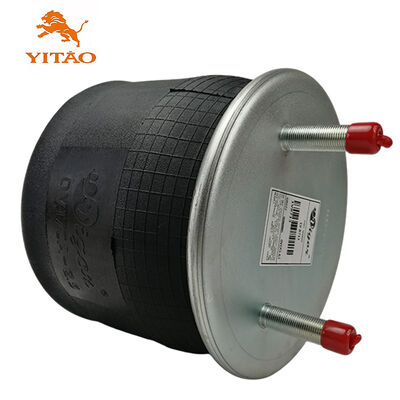

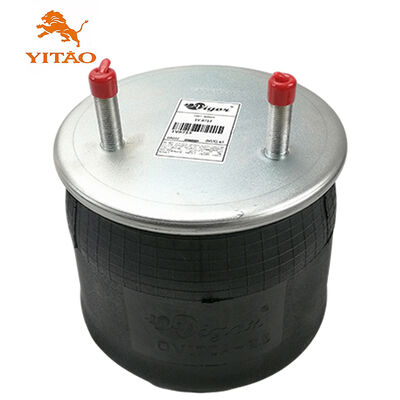

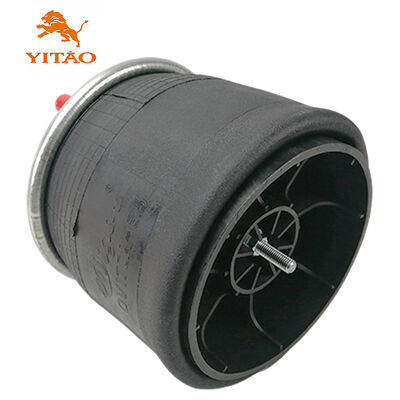

W01-358-8713, 1T17CA-6.5 Truck Air Spring Real Pictures
1V 8713 Truck Air Spring Suitable for Firestone W01-358-8713/Hendrickson HKA-180 1 1V 8713 Truck Air Spring Suitable for Firestone W01-358-8713/Hendrickson HKA-180 2 1V 8713 Truck Air Spring Suitable for Firestone W01-358-8713/Hendrickson HKA-180 3 1V 8713 Truck Air Spring Suitable for Firestone W01-358-8713/Hendrickson HKA-180 4 1V 8713 Truck Air Spring Suitable for Firestone W01-358-8713/Hendrickson HKA-180 5 1V 8713 Truck Air Spring Suitable for Firestone W01-358-8713/Hendrickson HKA-180 6 1V 8713 Truck Air Spring Suitable for Firestone W01-358-8713/Hendrickson HKA-180 7
Images shown are for reference only. Actual product may vary slightly.
