1V 8602 Truck Air Spring Suitable for Firestone W01-M58-8602/Goodyear 1R14-757

1V 8602 Truck Air Spring Suitable for Firestone W01-M58-8602/Goodyear 1R14-757
1V 8602 Truck Air Spring Suitable for Firestone W01-M58-8602/Goodyear 1R14-757 1V 8602 Truck Air Spring Suitable for Firestone W01-M58-8602/Goodyear 1R14-757 1V 8602 Truck Air Spring Suitable for Firestone W01-M58-8602/Goodyear 1R14-757 1V 8602 Truck Air Spring Suitable for Firestone W01-M58-8602/Goodyear 1R14-757

Large Image :  1V 8602 Truck Air Spring Suitable for Firestone W01-M58-8602/Goodyear 1R14-757

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 8602
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V 8602 Truck Air Spring Suitable for Firestone W01-M58-8602/Goodyear 1R14-757

Description
OE Number: W01-M58-8602,1T66D-7.0,4881NP02,1R14-757,D141444,16905,05.429.40.08.1 OE NO2: 05.429.41.31.0,05.429.43.41.0,500036830,05.429.41.36.0,05.429.41.21.0
Type: Truck Air Spring Application: For Truck Air Suspension
Packing: Neutral Packing Or Customized Packing Condition: New
Warranty: 1 Year Minimum Order Quantity: 50 Pieces
Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate Material: Rubber
Piston Material: Plastic
Highlight:

Truck Air Spring for Firestone W01-M58-8602

,

Truck Air Spring for Goodyear 1R14-757

,

Truck Air Spring with warranty

1V 8602 Truck Air Spring Suitable for Firestone W01-M58-8602/Goodyear 1R14-757
1V 8602 Truck Air Spring Manufactured to specifications matching Firestone W01-M58-8602/Goodyear 1R14-757, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.
Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-M58-8602 W01 M58 8602/W01M588602/W01M58-8602/W01-M588602/W01-M58-8602
Firestone 1T66D-7.0 1T66D 7.0/1T66D7.0/1T66D-7.0
Contitech 4881NP02 :4881NP02
Goodyear 1R14-757 1R14 757/1R14757/1R14-757
Dunlop D141444 :D141444
Granning 16905 :16905
BPW 05.429.40.08.1 / 05.429.41.36.0 05.429.40.08.1 05.429.41.36.0/05.429.40.08.105.429.41.36.0/05.429.40.08.1/05.429.41.36.0
BPW 05.429.41.21.0/05.429.41.31.0 05.429.41.21.0 05.429.41.31.0/05.429.41.21.005.429.41.31.0/05.429.41.21.0/05.429.41.31.0
BPW Type 05.429.43.41.0 05.429.43.41.0
IVECO 500036830 :500036830
Technical Specifications
Specifications Parameters
Outer diameter φ298
Weight 13.612kg
Package Dimensions 33*33*35.5cm
Natural height 547mm
Maximum height 527mm
Minimum height 223mm
Extended Height 559mm
Compressed Height 223mm
Top Plate Width 315mm
Piston Width 251mm
1V 8602 Truck Air Spring Drawing
1V 8602 Truck Air Spring Suitable for Firestone W01-M58-8602/Goodyear 1R14-757 0
Delivery Information
  • Delivery Time: Orders are typically shipped within 30 business days after payment is received.
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.

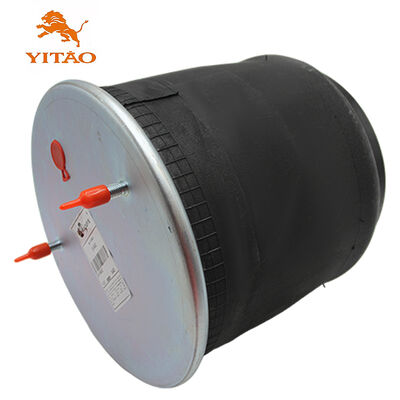

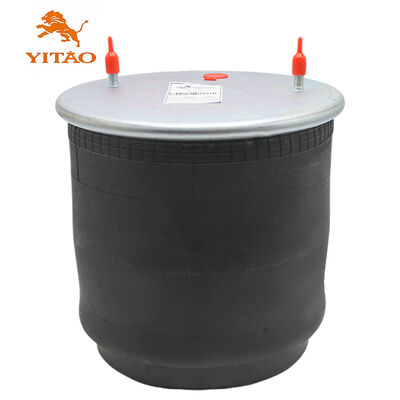

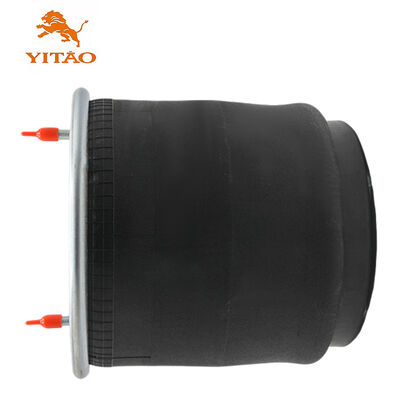

W01-M58-8602, 1T66D-7.0 Truck Air Spring Real Pictures
1V 8602 Truck Air Spring Suitable for Firestone W01-M58-8602/Goodyear 1R14-757 1 1V 8602 Truck Air Spring Suitable for Firestone W01-M58-8602/Goodyear 1R14-757 2 1V 8602 Truck Air Spring Suitable for Firestone W01-M58-8602/Goodyear 1R14-757 3 1V 8602 Truck Air Spring Suitable for Firestone W01-M58-8602/Goodyear 1R14-757 4 1V 8602 Truck Air Spring Suitable for Firestone W01-M58-8602/Goodyear 1R14-757 5 1V 8602 Truck Air Spring Suitable for Firestone W01-M58-8602/Goodyear 1R14-757 6 1V 8602 Truck Air Spring Suitable for Firestone W01-M58-8602/Goodyear 1R14-757 7
Images shown are for reference only. Actual product may vary slightly.
