1V 8186 Truck Air Spring Suitable for Firestone W01-M58-8186/Weweler USO6316F

1V 8186 Truck Air Spring Suitable for Firestone W01-M58-8186/Weweler USO6316F
1V 8186 Truck Air Spring Suitable for Firestone W01-M58-8186/Weweler USO6316F 1V 8186 Truck Air Spring Suitable for Firestone W01-M58-8186/Weweler USO6316F 1V 8186 Truck Air Spring Suitable for Firestone W01-M58-8186/Weweler USO6316F 1V 8186 Truck Air Spring Suitable for Firestone W01-M58-8186/Weweler USO6316F

Large Image :  1V 8186 Truck Air Spring Suitable for Firestone W01-M58-8186/Weweler USO6316F

Product Details:
Place of Origin: China
Brand Name: YITAO / YICONTON / Vigor
Certification: IATF16949
Model Number: 1V8186
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V 8186 Truck Air Spring Suitable for Firestone W01-M58-8186/Weweler USO6316F

Description
OE / OEM References: Schmitz Trailer 751065 Aftermarket Cross References: Firestone W01-M58-8186; ContiTech 4157NP06; Goodyear 1R11-764; 566-22-3-521; Phoenix 1DK20A1; Weweler USO6316F; Granning 15783; Airtech 133802; 38186KPP; WABCO 9518117640
Type: Truck Air Spring Application: For Truck Air Suspension
Packing: Neutral Packing Or Customized Packing Condition: New
Warranty: 14 Months From Bill Of Lading (B/L) Date Minimum Order Quantity: 50 Pieces
Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate Material: Rubber
Piston Material: Plastic
Highlight:

1V 8186 truck air spring

,

Firestone W01-M58-8186 air spring

,

Weweler USO6316F truck air spring

1V 8186 Truck Air Spring Suitable for Firestone W01-M58-8186/Weweler USO6316F
1V 8186 Truck Air Spring Manufactured to specifications matching Firestone W01-M58-8186/Weweler USO6316F, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.
Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-M58-8186 / W019686316 W01 M58 8186 W019686316/W01M588186W019686316/W01-M58-8186/W019686316
Contitech 4157NP06 :4157NP06
Goodyear 1R11-764 / 566-22-3-521 1R11 764 566 22 3 521/1R11764566223521/1R11-764/566-22-3-521
Phoenix 1DK20A1 :1DK20A1
Dunlop UK D11B37 :D11B37
Schmitz Trailer 751065 :751065
Weweler USO6316F :USO6316F
Granning 15783 :15783
Airtech 133802 / 38186KPP 133802 38186KPP/13380238186KPP/133802/38186KPP
WABCO 9518117640 :9518117640
Technical Specifications
Specifications Parameters
Outer diameter φ265
Weight 7.883 kg
Package Dimensions 28*28*31.5cm
Natural height 603mm
Maximum height 583mm
Minimum height 226mm
Extended Height 655mm
Compressed Height 234mm
Top Plate Width 231mm
Piston Width 260mm
1V 8186 Truck Air Spring Drawing
Technical drawing of 1V 8186 Truck Air Spring
Delivery Information
  • Delivery Time: Orders are typically shipped within 30 business days after payment is received.
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.

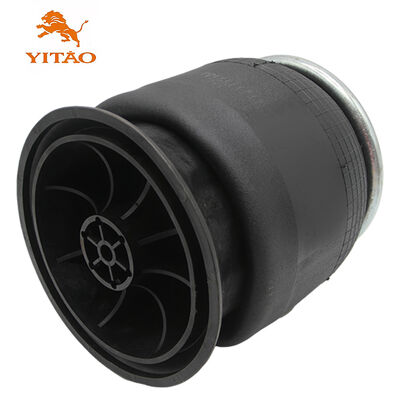

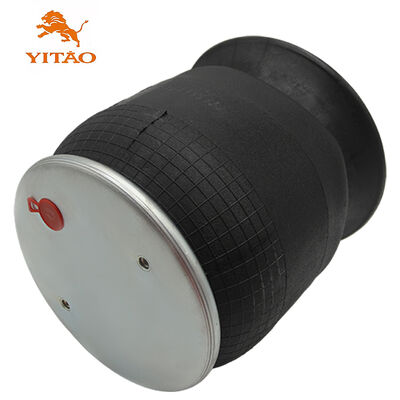

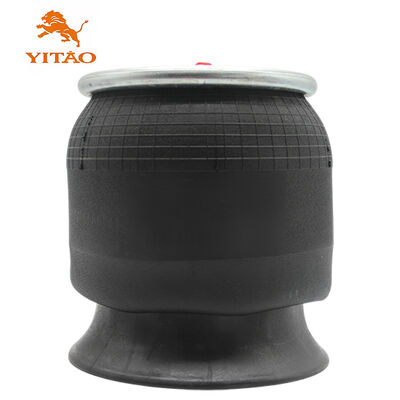

W01-M58-8186 133802 Truck Air Spring Real Pictures
Truck air spring product view Truck air spring side view Truck air spring detailed view Close-up view of truck air spring mounting points and connections Detailed shot of air spring rubber bellows and metal components Manufacturing quality inspection of truck air spring Packaged truck air spring ready for shipment
Images shown are for reference only. Actual product may vary slightly.
