1V 8204 Truck Air Spring Suitable for Firestone W01-358-8204/Contitech 910-12P484

Large Image : 1V 8204 Truck Air Spring Suitable for Firestone W01-358-8204/Contitech 910-12P484

Product Details:

Place of Origin:	China
Brand Name:	YITAO
Certification:	IATF16949
Model Number:	1V 8204

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable in person
Packaging Details:	Carton
Delivery Time:	30
Payment Terms:	T/T
Supply Ability:	5000pieces/Month

Contact Now

1V 8204 Truck Air Spring Suitable for Firestone W01-358-8204/Contitech 910-12P484

Description

OE Number:	XB-SPN-053-37,XB-SPN-053-60,8484,6361,566243067,90557210	OE NO2:	W01-358-8204,1T15M-2,910-12P484,1R12-508,1R12-522
Type:	Truck Air Spring	Application:	For Truck Air Suspension
Packing:	Neutral Packing Or Customized Packing	Condition:	New
Warranty:	1 Year	Minimum Order Quantity:	50 Pieces
Sealing Configuration:	Crimp Cover Plate + Vulcanized Sealing Plate	Material:	Rubber
Piston Material:	Aluminum
Highlight:	Truck Air Spring for Firestone W01-358-8204 , Truck Air Spring compatible with Contitech 910-12P484 , Truck Air Spring replacement with warranty

1V 8204 Truck Air Spring Suitable for Firestone W01-358-8204/Contitech 910-12P484

1V 8204 Truck Air Spring Manufactured to specifications matching Firestone W01-358-8204/Contitech 910-12P484, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References

Brand	Reference Numbers	Numbering Discrepancy
Firestone	W01-358-8204	W01 358 8204/W013588204/W01358-8204/W01-3588204/W01-358-8204
Firestone	1T15M-2	1T15M 2/1T15M2/1T15M-2
Contitech	910-12P484	910 12P484/91012P484/910-12P484
Goodyear	1R12-508 / 1R12-522	1R12 508 1R12 522/1R125081R12522/1R12-508/1R12-522
Goodyear	566243067	:566243067
Neway	90557210	:90557210
Binkley	XB-SPN-053-37	XB SPN 053 37/XBSPN05337/XB-SPN-053-37
Binkley	XB-SPN-053-60	XB SPN 053 60/XBSPN05360/XB-SPN-053-60
Triangle	8484/6361	8484 6361/84846361/8484/6361

Technical Specifications

Specifications	Parameters
Outer diameter	φ265
Weight	7.171 kg
Package Dimensions	282831.5cm
Natural height	362mm
Maximum height	342mm
Minimum height	109mm
Extended Height	To be updated
Compressed Height	To be updated
Top Plate Width	231mm
Piston Width	242mm

1V 8204 Truck Air Spring Drawing

Delivery Information

Delivery Time: Orders are typically shipped within 30 business days after payment is received.
Packing Method: Brown carton packing; we can also pack according to your requirements.
Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.

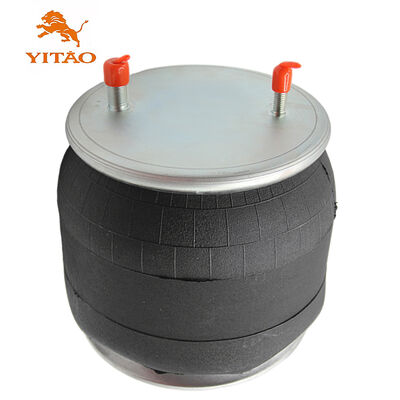

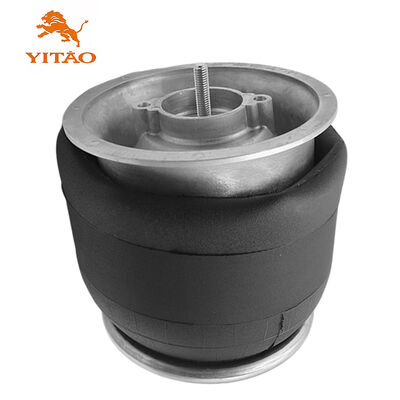

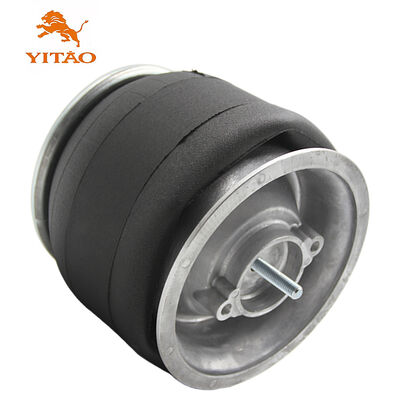

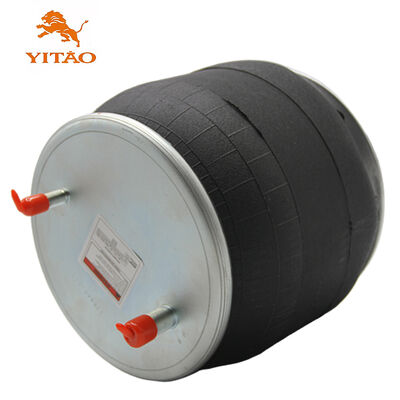

W01-358-8204,1T15M-2 Truck Air Spring Real Pictures

Images shown are for reference only. Actual product may vary slightly.
