1V 8185 Truck Air Spring Suitable for Firestone W01-M58-8185/Phoenix 1DK20B-1/Goodyear 1R12-749

Large Image : 1V 8185 Truck Air Spring Suitable for Firestone W01-M58-8185/Phoenix 1DK20B-1/Goodyear 1R12-749

Product Details:

Place of Origin:	China
Brand Name:	YITAO
Certification:	IATF16949
Model Number:	1V 8185

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable in person
Packaging Details:	Carton
Delivery Time:	30
Payment Terms:	T/T
Supply Ability:	5000pieces/Month

Contact Now

1V 8185 Truck Air Spring Suitable for Firestone W01-M58-8185/Phoenix 1DK20B-1/Goodyear 1R12-749

Description

OE Number:	W01-M58-8185,1DK20B-1,1T15MPW-9,D12B22	OE NO2:	4158NP03,US06285F,1R12-749,133782,V1DK20B-1,38185KPP,DA34158/0103,MLF7037,750999,15657,9518127490
Type:	Truck Air Spring	Application:	For Truck Air Suspension
Packing:	Neutral Packing Or Customized Packing	Condition:	New
Warranty:	1 Year	Minimum Order Quantity:	50 Pieces
Sealing Configuration:	Crimp Cover Plate + Vulcanized Sealing Plate	Material:	Rubber
Piston Material:	Plastic
Highlight:	1V 8185 truck air spring , Firestone W01-M58-8185 air spring , Goodyear 1R12-749 truck spring

1V 8185 Truck Air Spring Suitable for Firestone W01-M58-8185/Phoenix 1DK20B-1/Goodyear 1R12-749

1V 8185 Truck Air Spring Manufactured to specifications matching Firestone W01-M58-8185/Phoenix 1DK20B-1/Goodyear 1R12-749, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References

Brand	Reference Numbers	Numbering Discrepancy
Firestone	W01-M58-8185	W01 M58 8185/W01M588185/W01M58-8185/W01-M588185/W01-M58-8185
Firestone	1T15MPW-9	1T15MPW 9/1T15MPW9/1T15MPW-9
Contitech	4158NP03	:4158NP03
Goodyear	1R12-749	1R12 749/1R12749/1R12-749
Vibracoustic	V1DK20B-1	V1DK20B 1/V1DK20B1/V1DK20B-1
Taurus	DA34158/0103	DA34158 0103/DA341580103/DA34158/0103
Schmitz Trailer	750999	:750999
Granning	15657	:15657
WABCO	9518127490	:9518127490
Phoenix	1DK20B-1	1DK20B 1/1DK20B1/1DK20B-1
Dunlop FR	D12B22	:D12B22
Weweler	US06285F	:US06285F
Airtech	133782	:133782
Airtech	38185KPP	:38185KPP
Meritor	MLF7037	:MLF7037

Technical Specifications

Specifications	Parameters
Outer diameter	φ255
Weight	7.454 kg
Package Dimensions	2726.536.5cm
Natural height	648mm
Maximum height	630mm
Minimum height	264mm
Extended Height	To be updated
Compressed Height	To be updated
Top Plate Width	231mm
Piston Width	260mm

1V 8185 Truck Air Spring Drawing

Delivery Information

Delivery Time: Orders are typically shipped within 30 business days after payment is received.
Packing Method: Brown carton packing; we can also pack according to your requirements.
Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.

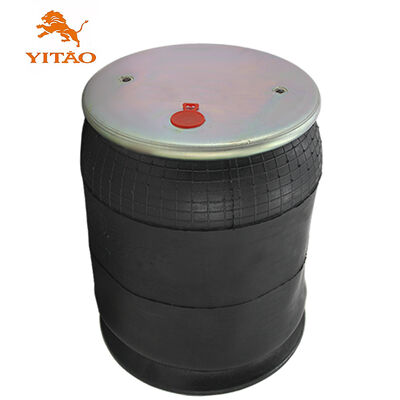

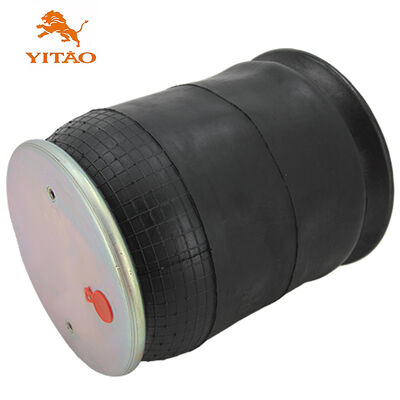

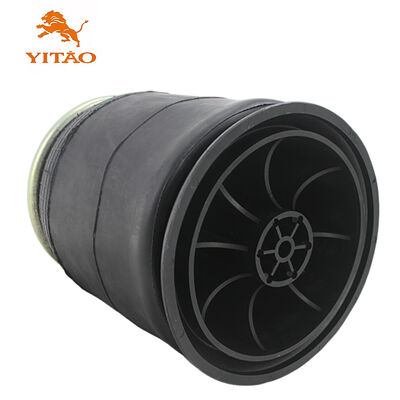

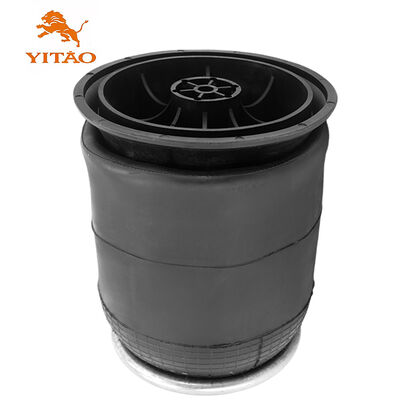

W01-M58-8185, 1DK20B-1 Truck Air Spring Real Pictures

Images shown are for reference only. Actual product may vary slightly.
