1V 8609 Truck Air Spring Suitable for Firestone W01-M58-8609/Goodyear 1R11-763

1V 8609 Truck Air Spring Suitable for Firestone W01-M58-8609/Goodyear 1R11-763
1V 8609 Truck Air Spring Suitable for Firestone W01-M58-8609/Goodyear 1R11-763 1V 8609 Truck Air Spring Suitable for Firestone W01-M58-8609/Goodyear 1R11-763 1V 8609 Truck Air Spring Suitable for Firestone W01-M58-8609/Goodyear 1R11-763 1V 8609 Truck Air Spring Suitable for Firestone W01-M58-8609/Goodyear 1R11-763

Large Image :  1V 8609 Truck Air Spring Suitable for Firestone W01-M58-8609/Goodyear 1R11-763

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 8609
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V 8609 Truck Air Spring Suitable for Firestone W01-M58-8609/Goodyear 1R11-763

Description
OE Number: W01-M58-8609,1DK21K,1T17J,CPL.BPW30K,1R11-763,D11B39,940MB,MLF7042,9518117630,130202,15919 OE NO2: 3940K,BPW30K,05.429.42.41.1,05.429.40.93.1,0542941371
Type: Truck Air Spring Application: For Truck Air Suspension
Packing: Neutral Packing Or Customized Packing Condition: New
Warranty: 1 Year Minimum Order Quantity: 50 Pieces
Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate Material: Rubber
Piston Material: Plastic
Highlight:

Truck Air Spring for Firestone W01-M58-8609

,

Truck Air Spring for Goodyear 1R11-763

,

Heavy-duty Truck Air Spring with warranty

1V 8609 Truck Air Spring Suitable for Firestone W01-M58-8609/Goodyear 1R11-763
1V 8609 Truck Air Spring Manufactured to specifications matching Firestone W01-M58-8609/Goodyear 1R11-763, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.
Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-M58-8609 W01 M58 8609/W01M588609/W01M58-8609/W01-M588609/W01-M58-8609
Firestone 1T17J 1T17J
Goodyear 1R11-763 1R11 763/1R11763/1R11-763
Contitech 940MB :940MB
WABCO 9518117630 :9518117630
Granning 15919 :15919
BPW Type BPW30K :BPW30K
BPW 05.429.42.41.1 05.429.42.41.1
BPW 05.429.40.93.1 05.429.40.93.1
BPW 0542941371 :0542941371
Phoenix 1DK21K :1DK21K
Phoenix CPL.BPW30K CPL.BPW30K
Dunlop Fr D11B39 :D11B39
Meritor MLF7042 :MLF7042
Airtech 130202 :130202
Airtech 3940K :3940K
Technical Specifications
Specifications Parameters
Outer diameter φ255
Weight 9.893 kg
Package Dimensions 27*27*30cm
Natural height 562mm
Maximum height 542mm
Minimum height 211mm
Extended Height 550mm
Compressed Height 215mm
Top Plate Width 262mm
Piston Width 201mm
1V 8609 Truck Air Spring Drawing
1V 8609 Truck Air Spring Suitable for Firestone W01-M58-8609/Goodyear 1R11-763 0
Delivery Information
  • Delivery Time: Orders are typically shipped within 30 business days after payment is received.
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.

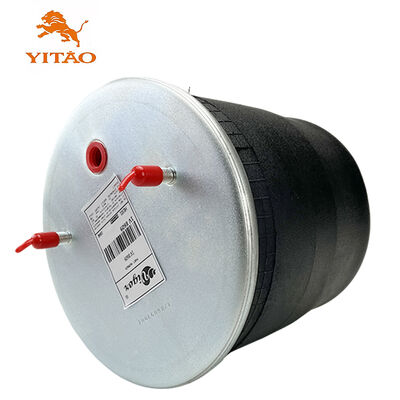

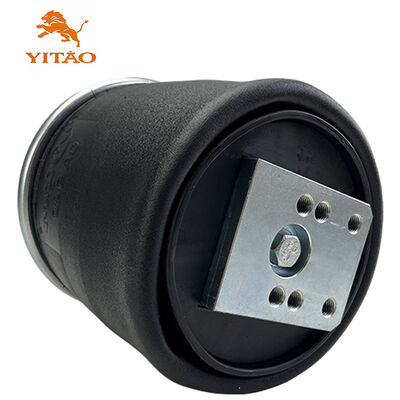

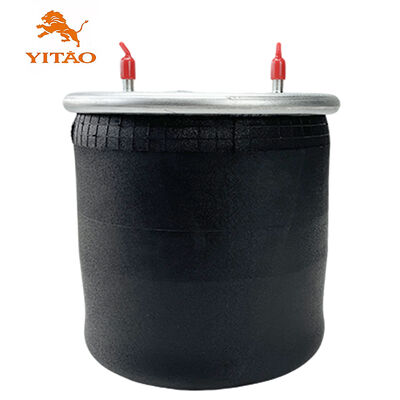

W01-M58-8609 1DK21K Truck Air Spring Real Pictures
1V 8609 Truck Air Spring Suitable for Firestone W01-M58-8609/Goodyear 1R11-763 1 1V 8609 Truck Air Spring Suitable for Firestone W01-M58-8609/Goodyear 1R11-763 2 1V 8609 Truck Air Spring Suitable for Firestone W01-M58-8609/Goodyear 1R11-763 3 1V 8609 Truck Air Spring Suitable for Firestone W01-M58-8609/Goodyear 1R11-763 4 1V 8609 Truck Air Spring Suitable for Firestone W01-M58-8609/Goodyear 1R11-763 5 1V 8609 Truck Air Spring Suitable for Firestone W01-M58-8609/Goodyear 1R11-763 6 1V 8609 Truck Air Spring Suitable for Firestone W01-M58-8609/Goodyear 1R11-763 7
Images shown are for reference only. Actual product may vary slightly.
