1V 8091 Truck Air Spring Suitable for Firestone W01-358-8091/Triangle AS-8523

1V 8091 Truck Air Spring Suitable for Firestone W01-358-8091/Triangle AS-8523
1V 8091 Truck Air Spring Suitable for Firestone W01-358-8091/Triangle AS-8523 1V 8091 Truck Air Spring Suitable for Firestone W01-358-8091/Triangle AS-8523 1V 8091 Truck Air Spring Suitable for Firestone W01-358-8091/Triangle AS-8523 1V 8091 Truck Air Spring Suitable for Firestone W01-358-8091/Triangle AS-8523

Large Image :  1V 8091 Truck Air Spring Suitable for Firestone W01-358-8091/Triangle AS-8523

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 8091
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V 8091 Truck Air Spring Suitable for Firestone W01-358-8091/Triangle AS-8523

Description
OE Number: W01-358-8091,1T19LC-6,1R14-171,566283065,AS8091,64421,AS-8523, OE NO2: S-21784,HKA250,C-20901,6398,AS80910,503513081,S-20901,AA250T
Type: Truck Air Spring Application: For Truck Air Suspension
Packing: Neutral Packing Or Customized Packing Condition: New
Warranty: 1 Year Minimum Order Quantity: 50 Pieces
Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate Material: Rubber
Piston Material: Plastic
Highlight:

Truck Air Spring for Firestone W01-358-8091

,

Truck Air Spring compatible with Triangle AS-8523

,

1V 8091 Truck Air Spring with warranty

1V 8091 Truck Air Spring Suitable for Firestone W01-358-8091/Triangle AS-8523
1V 8091 Truck Air Spring Manufactured to specifications matching Firestone W01-358-8091/Triangle AS-8523, this air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.
Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-8091 W01 358 8091/W013588091/W01358-8091/W01-3588091/W01-358-8091
Firestone 1T19LC-6 1T19LC 6/1T19LC6/1T19LC-6
Goodyear 1R14-171 / 566283065 1R14 171 566283065/1R14171566283065/1R14-171/566283065
Contitech AS8091 / 64421 AS8091 64421/AS809164421/AS8091/64421
Triangle AS-8523 AS 8523/AS8523/AS-8523
SAF 503513081 :503513081
Hendrickson S-20901 / AA250T S 20901 AA250T/S20901AA250T/S-20901/AA250T
Hendrickson S-21784 / HKA250 S 21784 HKA250/S21784HKA250/S-21784/HKA250
Hendrickson C-20901 C 20901/C20901/C-20901
Taurus 6398 :6398
TRP AS80910 :AS80910
Technical Specifications
Specifications Parameters
Outer diameter φ270
Weight 8.235 kg
Package Dimensions 30*30*39.5cm
Natural height 480mm
Maximum height 460mm
Minimum height 165mm
Extended Height To be updated
Compressed Height To be updated
Top Plate Width 289mm
Piston Width 252mm
1V 8104 Truck Air Spring Drawing
1V 8091 Truck Air Spring Suitable for Firestone W01-358-8091/Triangle AS-8523 0
Delivery Information
  • Delivery Time: Orders are typically shipped within 30 business days after payment is received.
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.

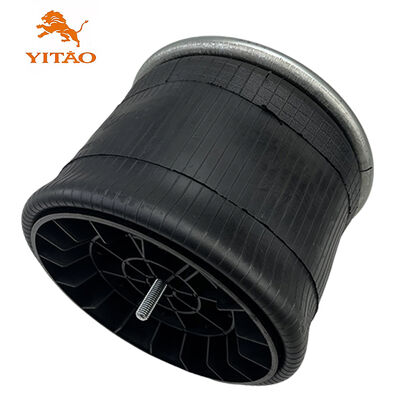

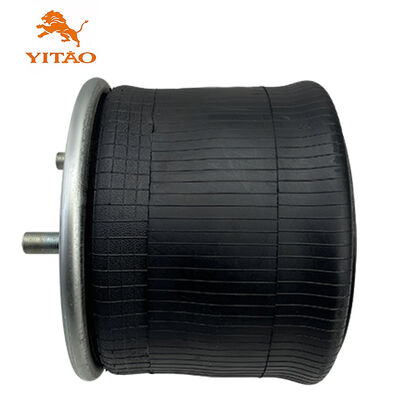

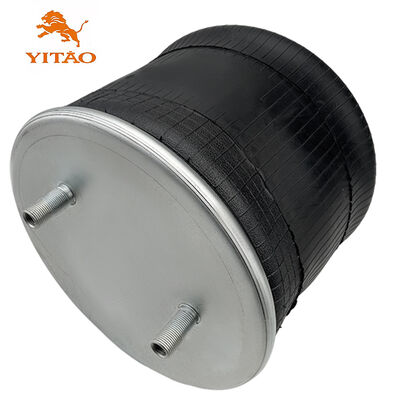

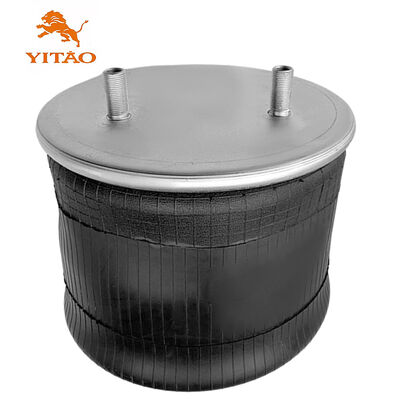

W01-358-8091 1T19LC-6 Truck Air Spring Real Pictures
1V 8091 Truck Air Spring Suitable for Firestone W01-358-8091/Triangle AS-8523 1 1V 8091 Truck Air Spring Suitable for Firestone W01-358-8091/Triangle AS-8523 2 1V 8091 Truck Air Spring Suitable for Firestone W01-358-8091/Triangle AS-8523 3 1V 8091 Truck Air Spring Suitable for Firestone W01-358-8091/Triangle AS-8523 4 1V 8091 Truck Air Spring Suitable for Firestone W01-358-8091/Triangle AS-8523 5 1V 8091 Truck Air Spring Suitable for Firestone W01-358-8091/Triangle AS-8523 6 1V 8091 Truck Air Spring Suitable for Firestone W01-358-8091/Triangle AS-8523 7
Images shown are for reference only. Actual product may vary slightly.
