1V 8104 Truck Air Spring Suitable for Firestone W01-M58-8104

Large Image : 1V 8104 Truck Air Spring Suitable for Firestone W01-M58-8104

Product Details:

Place of Origin:	China
Brand Name:	YITAO
Certification:	IATF16949
Model Number:	1V 8104

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable in person
Packaging Details:	Carton
Delivery Time:	30
Payment Terms:	T/T
Supply Ability:	5000pieces/Month

Contact Now

1V 8104 Truck Air Spring Suitable for Firestone W01-M58-8104

Description

OE Number:	W01-M58-8104,1T9L-11,1T19LB-12,TI9L	OE NO2:	SERIES C01-968-1163,TI9L SERIES C01-M58-1163
Type:	Truck Air Spring	Application:	For Truck Air Suspension
Packing:	Neutral Packing Or Customized Packing	Condition:	New
Warranty:	1 Year	Minimum Order Quantity:	50 Pieces
Sealing Configuration:	Crimp Cover Plate + Vulcanized Sealing Plate	Material:	Rubber
Piston Material:	Iron
Highlight:	1V 8104 truck air spring , Firestone W01-M58-8104 air spring , truck air spring with warranty

1V 8104 Truck Air Spring Suitable for Firestone W01-M58-8104

1V 8104 Truck Air Spring manufactured to specifications matching Firestone W01-M58-8104. This air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.

Cross References

Brand	Reference Numbers	Numbering Discrepancy
Firestone	W01-M58-8104	W01 M58 8104/W01M588104/W01M58-8104/W01-M588104/W01-M58-8104
Firestone	1T9L-11 / 1T19LB-12	1T9L 11 1T19LB 12/1T9L111T19LB12/1T9L-11/1T19LB-12
Firestone	T19L SERIES C01-968-1163	T19L SERIES C01 968 1163/T19LSERIESC019681163/T19L SERIES C01-968-1163
Firestone	T19L SERIES C01-M58-1163	T19L SERIES C01 M58 1163/T19LSERIESC01M581163/T19L SERIES C01-M58-1163

Technical Specifications

Specifications	Parameters
Outer diameter	φ265
Weight	17.176 kg
Package Dimensions	303043.5cm
Natural height	735mm
Maximum height	715mm
Minimum height	259mm
Extended Height	To be updated
Compressed Height	To be updated
Top Plate Width	289mm
Piston Width	261mm

1V 8104 Truck Air Spring Drawing

Delivery Information

Delivery Time: Orders are typically shipped within 30 business days after payment is received.
Packing Method: Brown carton packing; we can also pack according to your requirements.
Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage to the goods. If logistics information is stagnant during transportation, please wait patiently. If you have any questions, please contact us.

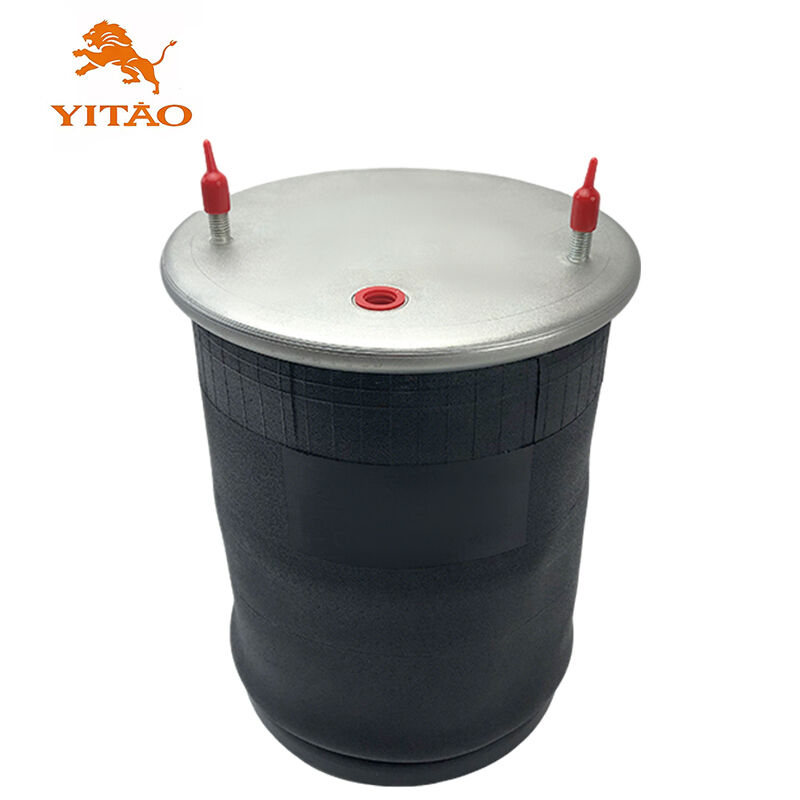

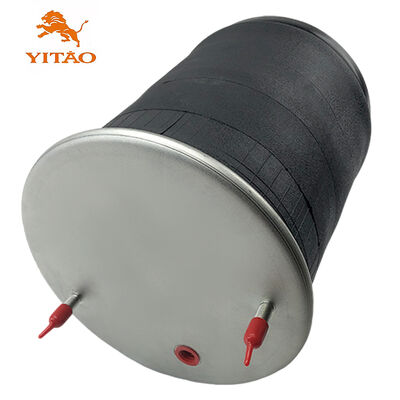

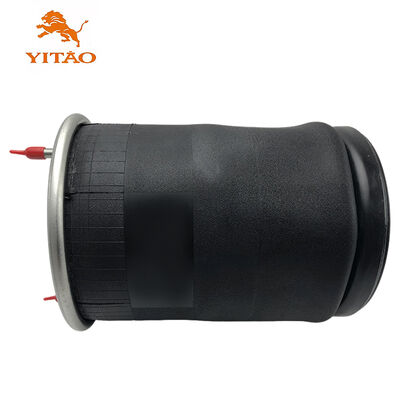

W01-M58-8104 C01-M58-1163 Truck Air Spring Real Pictures

Images shown are for reference only. Actual product may vary slightly.
