1V 7358 Truck Air Spring Suitable for Firestone W01-M58-7358/Phoenix 1D28B-9/Contitech 4813NP07

Large Image : 1V 7358 Truck Air Spring Suitable for Firestone W01-M58-7358/Phoenix 1D28B-9/Contitech 4813NP07

Product Details:

Place of Origin:	China
Brand Name:	YITAO
Certification:	IATF16949
Model Number:	1V 7358

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable in person
Packaging Details:	Carton
Delivery Time:	30
Payment Terms:	T/T
Supply Ability:	5000pieces/Month

Contact Now

1V 7358 Truck Air Spring Suitable for Firestone W01-M58-7358/Phoenix 1D28B-9/Contitech 4813NP07

Description

OE Number:	W01-M58-7358,4813NP07,1R14-727,065,1D28B-9,KR662-01,D13B10	OE N02:	1107674,1314906,255295,255293,3.229.0005.00,298568,325748
Type:	Truck Air Spring	Application:	For Truck Air Suspension
Packing:	Neutral Packing Or Customized Packing	Warranty:	1 Year
Minimum Order Quantity:	50 Pieces	Sealing Configuration:	Crimp Cover Plate + Vulcanized Sealing Plate
Material:	Rubber	Condition:	New
Piston Material:	Plastic
Highlight:	1V 7358 truck air spring , Firestone W01-M58-7358 air spring , Contitech 4813NP07 truck suspension

1V 7358 Truck Air Spring

YITAO 1V 7358 truck air spring is manufactured with reference to the specifications of Firestone W01-M58-7358, providing a complete replacement for the original air spring and ensuring a comfortable and stable driving environment for your truck.

Cross References

Brand	Reference Numbers	Numbering Discrepancy
Firestone	W01-M58-7358	W01 M58 7358 / W01M587358 / W01M58-7358 / W01-M587358 / W01-M58-7358
Contitech	4813NP07	:4813NP07
Goodyear	1R14-727/065	1R14 727 065 / 1R14727065 / 1R14-727/065
Phoenix	1D28B-9	1D28B 9 / 1D28B9 / 1D28B-9
Taurus	KR662-01	KR662 01 / KR66201 / KR662-01
Dunlop FR	D13B10	:D13B10
S.A.F	3.229.0005.00	3 229 0005 00 / 3229000500 / 3.229.0005.00
Scania	298568 / 325748	298568 325748 / 298568325748 / 298568/325748
Scania	1107674 / 1314906 / 255295 / 255293	1107674 1314906 255295 255293 / 11076741314906255295255293 / 1107674/1314906/255295/255293

Technical Specifications

Specifications	Parameters
Outer diameter	φ275
Weight	13.37 kg
Package Dimensions	292942cm
Natural height	696mm
Maximum height	680mm
Minimum height	242mm
Extended Height	660mm
Compressed Height	240mm
Top Plate Width	289mm
Piston Width	260mm

1V 7358 Truck Air Spring Drawing

Delivery Information

Delivery Time: Orders are typically shipped within 30 business days after payment is received.
Packing Method: Brown carton packing; we can also pack according to your requirements.
Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.

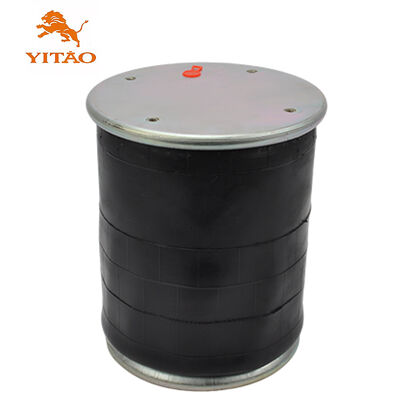

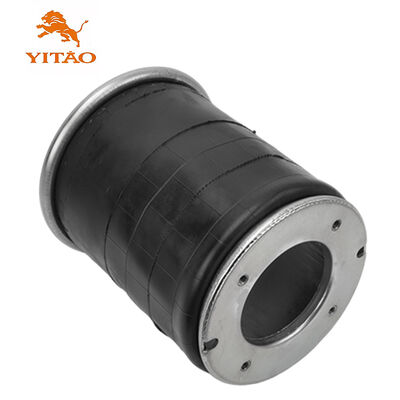

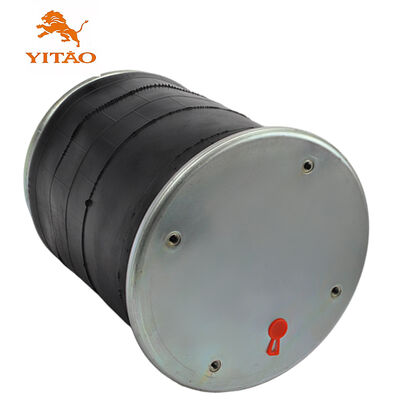

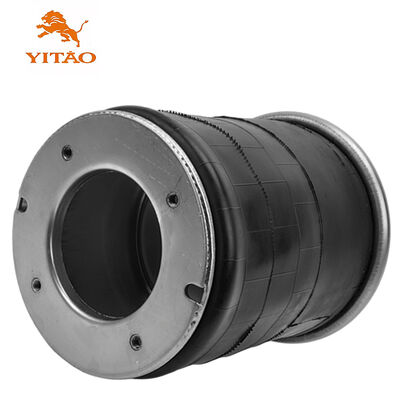

1R14-727,065,1D28B-9 Truck Air Spring Real Pictures
