1V 7074 Truck Air Spring Suitable for Firestone W01-M58-7074/Goodyear 1R11-106/CF Gomma 1T300-38

1V 7074 Truck Air Spring Suitable for Firestone W01-M58-7074/Goodyear 1R11-106/CF Gomma 1T300-38
1V 7074 Truck Air Spring Suitable for Firestone W01-M58-7074/Goodyear 1R11-106/CF Gomma 1T300-38 1V 7074 Truck Air Spring Suitable for Firestone W01-M58-7074/Goodyear 1R11-106/CF Gomma 1T300-38 1V 7074 Truck Air Spring Suitable for Firestone W01-M58-7074/Goodyear 1R11-106/CF Gomma 1T300-38 1V 7074 Truck Air Spring Suitable for Firestone W01-M58-7074/Goodyear 1R11-106/CF Gomma 1T300-38

Large Image :  1V 7074 Truck Air Spring Suitable for Firestone W01-M58-7074/Goodyear 1R11-106/CF Gomma 1T300-38

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 7074
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V 7074 Truck Air Spring Suitable for Firestone W01-M58-7074/Goodyear 1R11-106/CF Gomma 1T300-38

Description
OE Number: W01-M58-7074,9518111060,1T15MPW-7,1DK21A-3,4157NP05,6138,1T300-30,4157NP09,D12B17 OE N02: US07074F,133282,39002-A3P,21222442,1R11-106,KR915-54,1T300-38,15732
Type: Truck Air Spring Application: For Truck Air Suspension
Packing: Neutral Packing Or Customized Packing Warranty: 1 Year
Minimum Order Quantity: 50 Pieces Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate
Material: Rubber Condition: New
Piston Material: Plastic
Highlight:

Truck Air Spring for Firestone W01-M58-7074

,

Truck Air Spring compatible with Goodyear 1R11-106

,

Truck Air Spring replacement CF Gomma 1T300-38

1V 7074 Truck Air Spring Suitable for Firestone W01-M58-7074/Goodyear 1R11-106/CF Gomma 1T300-38
YITAO 1V 7074 truck air spring is manufactured with reference to the specifications of Firestone W01-M58-7074, providing a complete replacement for the original air spring and ensuring a comfortable and stable driving environment for your truck.
Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-M58-7074 W01 M58 7074 / W01M587074 / W01M58-7074 / W01-M587074 / W01-M58-7074
Firestone 1T15MPW-7 1T15MPW 7 / 1T15MPW7 / 1T15MPW-7
Contitech 4157NP05/6138 4157NP05 6138 / 4157NP056138 / 4157NP05/6138
Contitech 4157NP09 :4157NP09
Goodyear 1R11-106 1R11 106 / 1R11106 / 1R11-106
CF Gomma 1T300-38 1T300 38 / 1T30038 / 1T300-38
Weweler US07074F :US07074F
Airtech 133282 :133282
Airtech 39002-A3P 39002 A3P / 39002A3P / 39002-A3P
ROR/Meritor 21222442 :21222442
WABCO 9518111060 :9518111060
Phoenix 1DK21A-3 1DK21A 3 / 1DK21A3 / 1DK21A-3
Pirelli 1T300-30 1T300 30 / 1T30030 / 1T300-30
Dunlop FR D12B17 :D12B17
Taurus KR915-54 KR915 54 / KR91554 / KR915-54
Granning 15732 :15732
Technical Specifications
Specifications Parameters
Outer diameter φ265
Weight 7.571 kg
Package Dimensions 28*28*31.5
Natural height 577mm
Maximum height 556mm
Minimum height 226mm
Extended Height 565mm
Compressed Height 208mm
Top Plate Width 231mm
Piston Width 205mm
1V 7074 Truck Air Spring Drawing
1V 7074 Truck Air Spring Suitable for Firestone W01-M58-7074/Goodyear 1R11-106/CF Gomma 1T300-38 0
Delivery Information
  • Delivery Time: Orders are typically shipped within 30 business days after payment is received.
  • Packing Method: Brown carton packing; we can also pack according to your requirements.
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements.
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
  • International Transport Notes: Due to the international transportation, we need to pack according to strict requirements to avoid damage to the goods. If the logistics information is stagnant during transportation, please wait patiently. If you have any questions, please feel free to contact us.

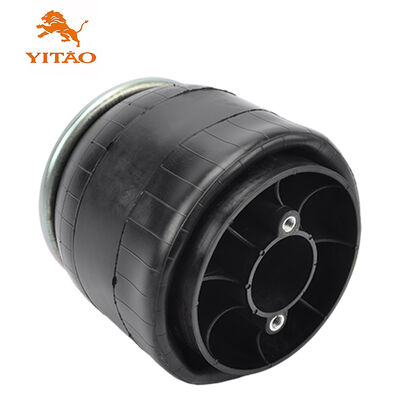

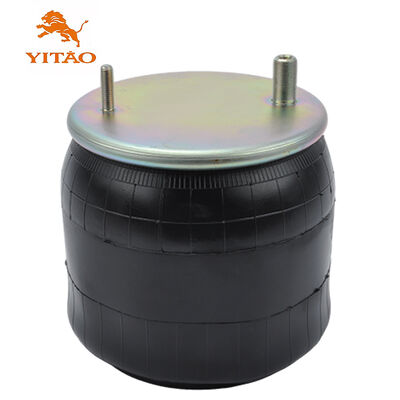

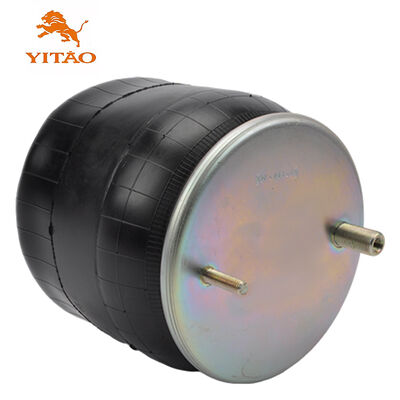

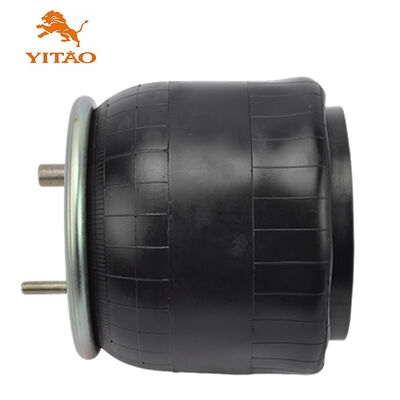

W01-M58-7074 9518111060 Truck Air Spring Real Pictures
1V 7074 Truck Air Spring Suitable for Firestone W01-M58-7074/Goodyear 1R11-106/CF Gomma 1T300-38 1 1V 7074 Truck Air Spring Suitable for Firestone W01-M58-7074/Goodyear 1R11-106/CF Gomma 1T300-38 2 1V 7074 Truck Air Spring Suitable for Firestone W01-M58-7074/Goodyear 1R11-106/CF Gomma 1T300-38 3 1V 7074 Truck Air Spring Suitable for Firestone W01-M58-7074/Goodyear 1R11-106/CF Gomma 1T300-38 4 1V 7074 Truck Air Spring Suitable for Firestone W01-M58-7074/Goodyear 1R11-106/CF Gomma 1T300-38 5 1V 7074 Truck Air Spring Suitable for Firestone W01-M58-7074/Goodyear 1R11-106/CF Gomma 1T300-38 6 1V 7074 Truck Air Spring Suitable for Firestone W01-M58-7074/Goodyear 1R11-106/CF Gomma 1T300-38 7
Images shown are for reference only. Actual product may vary slightly.
