1V 6345 Truck Air Spring Suitable for Firestone W01-M58-6348/Contitech 4023NP03/Taurus KR624-18

Large Image : 1V 6345 Truck Air Spring Suitable for Firestone W01-M58-6348/Contitech 4023NP03/Taurus KR624-18

Product Details:

Place of Origin:	China
Brand Name:	YITAO
Certification:	IATF16949
Model Number:	1V 6345

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable in person
Packaging Details:	Carton
Delivery Time:	30
Payment Terms:	T/T
Supply Ability:	5000pieces/Month

Contact Now

1V 6345 Truck Air Spring Suitable for Firestone W01-M58-6348/Contitech 4023NP03/Taurus KR624-18

Description

OE Number:	W01-M58-6345,1D28A-2,810MB,US07337,1R14-716,US00622,21215632,US87413	OE No. 2:	15635,2.229.0002.00,1080707,1384273,21208082,506243,01,506243
Type:	Truck Air Spring	Application:	For Truck Air Suspension
Packing:	Neutral Packing Or Customized Packing	Warranty:	1 Year
Minimum Order Quantity:	50 Pieces	Sealing Configuration:	Crimp Cover Plate + Vulcanized Sealing Plate
Material:	Rubber	Piston Material:	Iron
Highlight:	Truck Air Spring for Firestone W01-M58-6348 , Truck Air Spring compatible with Contitech 4023NP03 , Truck Air Spring replacement for Taurus KR624-18

1V 6345 Truck Air Spring Suitable for Firestone W01-M58-6348/Contitech 4023NP03/Taurus KR624-18

YITAO 1V 6345 truck air spring is manufactured with reference to the specifications of Firestone W01-M58-6345/Phoenix 1D28A-2, which can completely replace the original air spring, providing a comfortable and stable driving environment for your truck.

Cross References

Brand	Reference Numbers	Numbering Discrepancy
Firestone	W01-M58-6345	W01 M58 6345 / W01M586345 / W01M58-6345 / W01-M586345 / W01-M58-6345
Contirech	810MB	:810MB
Goodyear	1R14-716	1R14 716 / 1R14716 / 1R14-716
ROR/Meritor	21215632	:21215632
ROR/Meritor	21208082	:21208082
Hendrickson	506243	:506243
SAF	2.229.0002.00	2 229 0002 00 / 2229000200 / 2.229.0002.00
DAF	1384273	:1384273
Phoenix	1D28A-2	1D28A 2 / 1D28A2 / 1D28A-2
Weweler	US07337	:US07337
Weweler	US00622	:US00622
Weweler	US87413	:US87413
Tec	506243/01	506243 01 / 50624301 / 506243/01
Granning	15635	:15635
AB Vovo	1080707	:1080707

Technical Specifications

Specifications	Parameters
Outer diameter	φ275
Weight	11.822 kg
Package Dimensions	292938cm
Natural height	563mm
Maximum height	538mm
Minimum height	197mm
Extended Height	550mm
Compressed Height	184mm
Top Plate Width	289mm
Piston Width	260mm

1V 6345 Truck Air Spring Drawing

Delivery Information

What's the Delivery Time?

Orders are typically shipped within 30 business days after payment is received.

What's the Packing method?

Brown carton packing; we can also pack according to your requirements.

What information is included in the Marks?

Generally display weight and size. We can also make shipping marks according to your requirements.

What Transportation Methods are available?

Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.

What should I note about International Transport?

Due to the international transportation, we need to pack according to strict requirements, in order to avoid the goods from being impacted. If the logistics information is stagnant during the transportation of the goods, please wait patiently. If you have any questions, please feel free to contact us.

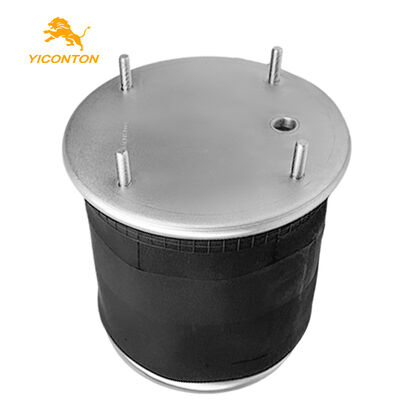

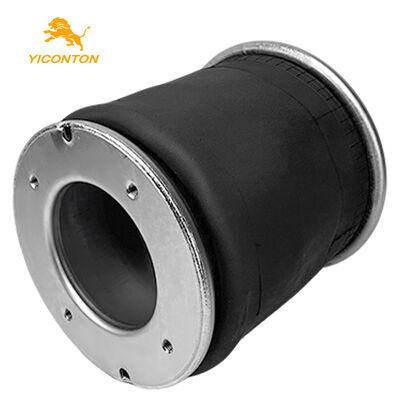

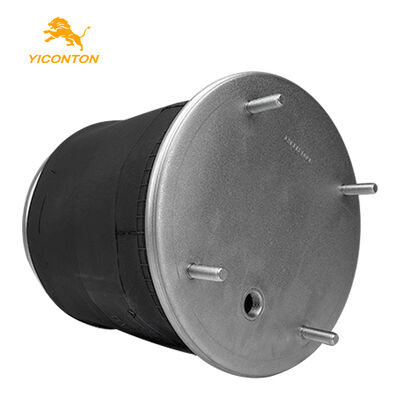

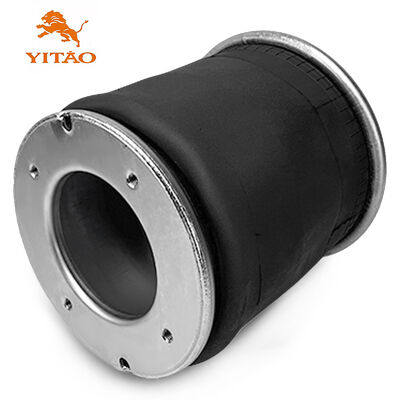

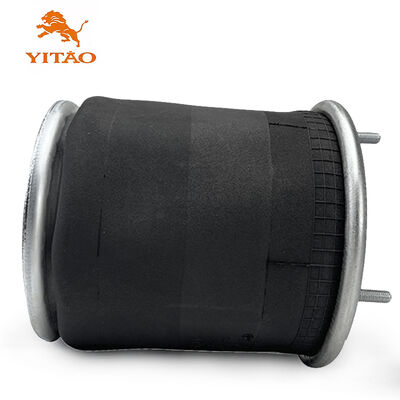

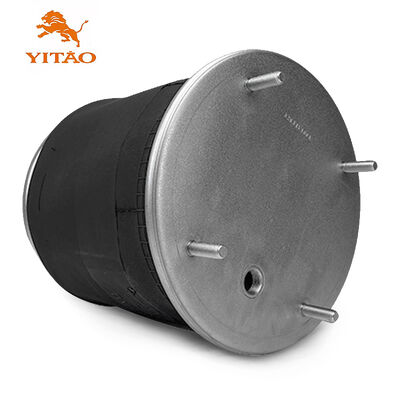

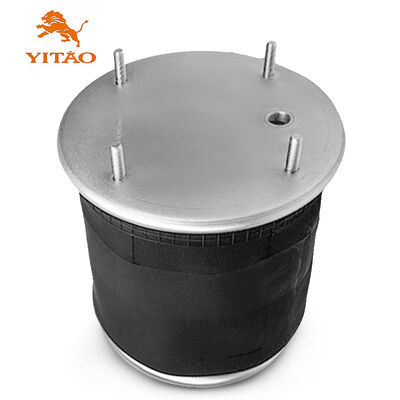

W01-M58-6345 1D28A-2 Truck Air Spring Real Pictures
