1V 6348 Truck Air Spring Suitable for Firestone W01-M58-6348/Contitech 4023NP03/Taurus KR624-18

1V 6348 Truck Air Spring Suitable for Firestone W01-M58-6348/Contitech 4023NP03/Taurus KR624-18
1V 6348 Truck Air Spring Suitable for Firestone W01-M58-6348/Contitech 4023NP03/Taurus KR624-18 1V 6348 Truck Air Spring Suitable for Firestone W01-M58-6348/Contitech 4023NP03/Taurus KR624-18 1V 6348 Truck Air Spring Suitable for Firestone W01-M58-6348/Contitech 4023NP03/Taurus KR624-18 1V 6348 Truck Air Spring Suitable for Firestone W01-M58-6348/Contitech 4023NP03/Taurus KR624-18

Large Image :  1V 6348 Truck Air Spring Suitable for Firestone W01-M58-6348/Contitech 4023NP03/Taurus KR624-18

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 6348
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V 6348 Truck Air Spring Suitable for Firestone W01-M58-6348/Contitech 4023NP03/Taurus KR624-18

Description
OE Number: W01-M58-6348,4023NP03,1R14-729,1D28A-10,KR624-18,D13B26,1T19E-2,204676,3.229.0031.00 OE No. 2: 3.229.2231.00,3.22902431.00,3.229.2131.00
Type: Truck Air Spring Application: For Truck Air Suspension
Packing: Neutral Packing Or Customized Packing Warranty: 1 Year
Minimum Order Quantity: 50 Pieces Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate
Material: Rubber Piston Material: Iron
Highlight:

Firestone W01-M58-6348 truck air spring

,

Contitech 4023NP03 air suspension spring

,

Taurus KR624-18 replacement air spring

1V 6348 Truck Air Spring Suitable for Firestone W01-M58-6348/Contitech 4023NP03/Taurus KR624-18
YITAO 1V 6348 truck air spring is manufactured with reference to the specifications of Firestone W01-M58-6348/Phoenix 1D28A-10, which can completely replace the original air spring, providing a comfortable and stable driving environment for your truck.
Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-M58-6348 W01 M58 6348 / W01M586348 / W01M58-6348 / W01-M586348 / W01-M58-6348
Contitech 4023NP03 :4023NP03
Goodyear 1R14-729 1R14 729 / 1R14729 / 1R14-729
Phoenix 1D28A-10 1D28A 10 / 1D28A10 / 1D28A-10
Taurus KR624-18 KR624 18 / KR62418 / KR624-18
Dunlop FR D13B26 :D13B26
CF Gomma 1T19E-2/204676 1T19E 2 204676 / 1T19E2204676 / 1T19E-2/204676
SAF 3.229.0031.00/3.229.2231.00 3 229 0031 00 3 229 2231 00 / 32290031003229223100 / 3.229.0031.00/3.229.2231.00
SAF 3.22902431.00/3.229.2131.00 3 22902431 00 3 229 2131 00 / 322902431003229213100 / 3.22902431.00/3.229.2131.00
Technical Specifications
Specifications Parameters
Natural height 696mm
Maximum height 680mm
Minimum height 236mm
Extended Height 680mm
Compressed Height 226mm
Top Plate Width 289mm
Piston Width 260mm
Outer diameter φ275
Weight 13.59 kg
Package Dimensions 30*30*43.5cm
1V 6348 Truck Air Spring Drawing
1V 6348 Truck Air Spring Suitable for Firestone W01-M58-6348/Contitech 4023NP03/Taurus KR624-18 0
Delivery Information
What's the Delivery Time?
Orders are typically shipped within 30 business days after payment is received.
What's the Packing method?
Brown carton packing; we can also pack according to your requirements.
What information is included in the Marks?
Generally display weight and size. We can also make shipping marks according to your requirements.
What Transportation Methods are available?
Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods.
What should I note about International Transport?
Due to the international transportation, we need to pack according to strict requirements, in order to avoid the goods from being impacted. If the logistics information is stagnant during the transportation of the goods, please wait patiently. If you have any questions, please feel free to contact us.

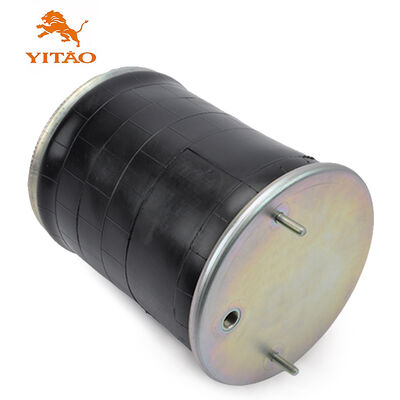

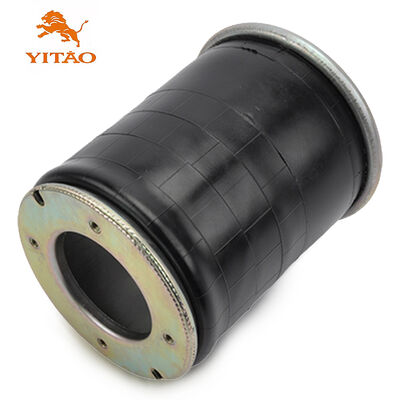

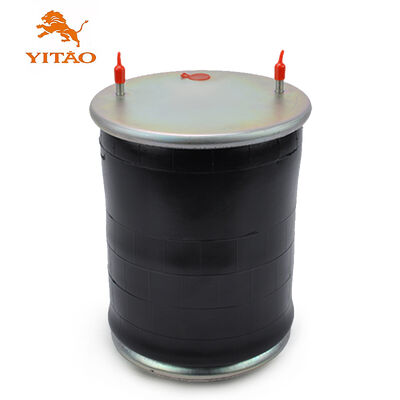

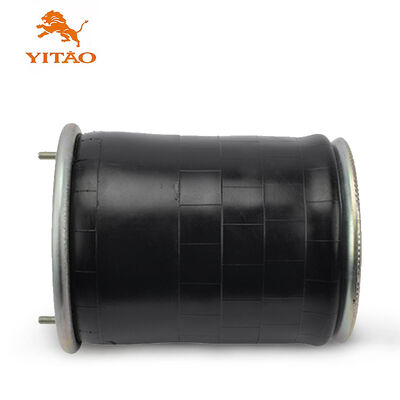

W01-M58-6348 4023NP03 Truck Air Spring Real Pictures

1V 6348 Truck Air Spring Suitable for Firestone W01-M58-6348/Contitech 4023NP03/Taurus KR624-18 11V 6348 Truck Air Spring Suitable for Firestone W01-M58-6348/Contitech 4023NP03/Taurus KR624-18 21V 6348 Truck Air Spring Suitable for Firestone W01-M58-6348/Contitech 4023NP03/Taurus KR624-18 3

1V 6348 Truck Air Spring Suitable for Firestone W01-M58-6348/Contitech 4023NP03/Taurus KR624-18 4 1V 6348 Truck Air Spring Suitable for Firestone W01-M58-6348/Contitech 4023NP03/Taurus KR624-18 5 1V 6348 Truck Air Spring Suitable for Firestone W01-M58-6348/Contitech 4023NP03/Taurus KR624-18 6 1V 6348 Truck Air Spring Suitable for Firestone W01-M58-6348/Contitech 4023NP03/Taurus KR624-18 7
Images shown are for reference only. Actual product may vary slightly.
