1V 6146 Truck Air Spring Suitable for Fierstone W01-M58-8786/Goodyear 1R13-711/Contitech 4912NP07

1V 6146 Truck Air Spring Suitable for Fierstone W01-M58-8786/Goodyear 1R13-711/Contitech 4912NP07
1V 6146 Truck Air Spring Suitable for Fierstone W01-M58-8786/Goodyear 1R13-711/Contitech 4912NP07 1V 6146 Truck Air Spring Suitable for Fierstone W01-M58-8786/Goodyear 1R13-711/Contitech 4912NP07 1V 6146 Truck Air Spring Suitable for Fierstone W01-M58-8786/Goodyear 1R13-711/Contitech 4912NP07 1V 6146 Truck Air Spring Suitable for Fierstone W01-M58-8786/Goodyear 1R13-711/Contitech 4912NP07

Large Image :  1V 6146 Truck Air Spring Suitable for Fierstone W01-M58-8786/Goodyear 1R13-711/Contitech 4912NP07

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 6146
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V 6146 Truck Air Spring Suitable for Fierstone W01-M58-8786/Goodyear 1R13-711/Contitech 4912NP07

Description
OE Number: W01-M58-8786,1T19L-14,4912NP07,60880,1R13-711,5.0.10.294.307B,1DK28F4,B13B40 OE No. 2: AS-16046,9518137110,5.010.294.307.C,MLF7063,131202,34912K
Type: Truck Air Spring Application: For Truck Air Suspension
Packing: Neutral Packing Or Customized Packing Warranty: 1 Year
Condition: New Minimum Order Quantity: 50 Pieces
Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate Material: Rubber
Piston Material: Iron
Highlight:

1V 6146 truck air spring

,

Fierstone W01-M58-8786 air spring

,

Goodyear 1R13-711 truck spring

1V 6146 Truck Air Spring Suitable for Fierstone W01-M58-8786/Goodyear 1R13-711/Contitech 4912NP07
Product Overview

YITAO 1V 6146 truck air spring is manufactured with reference to the specifications of Fierstone W01-M58-8786 which can completely replace the original air spring, providing a comfortable and stable driving environment for your truck.

Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-M58-8786 / 1T19L-14 W01M588786 / 1T19L14 / :W01M588786 / :1T19L14
Contitech 4912NP07/60880 4912NP07 / 60880 / :4912NP07 / :60880
Goodyear 1R13-711 1R13711 / :1R13711
RVI 5.0.10.294.307B 5010294307B / :5010294307B
Phoenix 1DK28F4 :1DK28F4
Dunlop FR B13B40 :B13B40
Airtech 131202/34912K 131202 / 34912K / :131202 / :34912K
Granning 16046 :16046
WABCO 9518137110 :9518137110
Renault 5.010.294.307.C 5010294307C / :5010294307C
Meritor MLF7063 :MLF7063
Technical Specifications
Specifications Parameters
Natural height 695mm
Maximum height 675mm
Minimum height 222mm
Extended Height 750mm
Compressed Height To be updated
Top Plate Width 231mm
Piston Width 260mm
Outer diameter φ255
Weight 8.941 kg
Package Dimensions 28*28*46.5cm
Product Drawing
1V 6146 Truck Air Spring Suitable for Fierstone W01-M58-8786/Goodyear 1R13-711/Contitech 4912NP07 0
Delivery Information
Delivery Time Orders are typically shipped within 30 business days after payment is received
Packing Brown carton packing; we can also pack according to your requirements
Marks Generally display weight and size. We can also make shipping marks according to your requirements
Transportation Method Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods
International Transport Due to the international transportation, we need to pack according to strict requirements, in order to avoid the goods from being impacted. If the logistics information is stagnant during the transportation of the goods, please wait patiently. If you have any questions, please feel free to contact us.

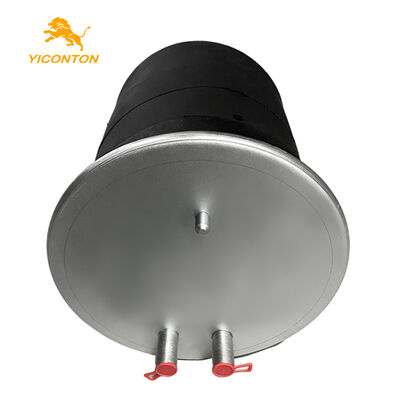

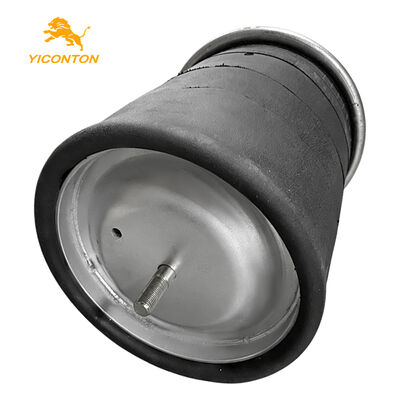

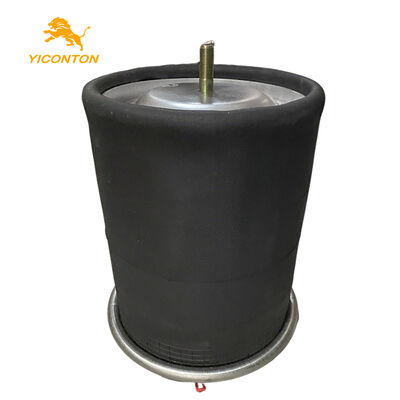

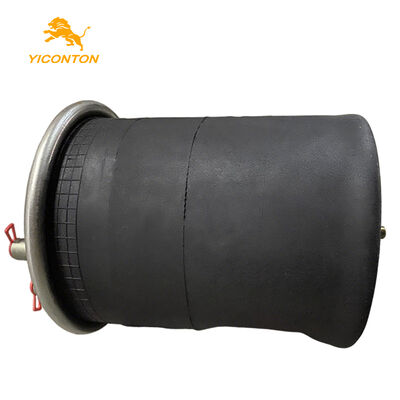

Product Images
1V 6146 Truck Air Spring Suitable for Fierstone W01-M58-8786/Goodyear 1R13-711/Contitech 4912NP07 1 1V 6146 Truck Air Spring Suitable for Fierstone W01-M58-8786/Goodyear 1R13-711/Contitech 4912NP07 2 1V 6146 Truck Air Spring Suitable for Fierstone W01-M58-8786/Goodyear 1R13-711/Contitech 4912NP07 3 1V 6146 Truck Air Spring Suitable for Fierstone W01-M58-8786/Goodyear 1R13-711/Contitech 4912NP07 4 1V 6146 Truck Air Spring Suitable for Fierstone W01-M58-8786/Goodyear 1R13-711/Contitech 4912NP07 5 1V 6146 Truck Air Spring Suitable for Fierstone W01-M58-8786/Goodyear 1R13-711/Contitech 4912NP07 6
Images shown are for reference only. Actual product may vary slightly.
