1V 9336 Truck Air Spring Suitable for Fierstone W01-358-9336/Goodyear 1R12-370/Contitech 910-14A490

1V 9336 Truck Air Spring Suitable for Fierstone W01-358-9336/Goodyear 1R12-370/Contitech 910-14A490
1V 9336 Truck Air Spring Suitable for Fierstone W01-358-9336/Goodyear 1R12-370/Contitech 910-14A490 1V 9336 Truck Air Spring Suitable for Fierstone W01-358-9336/Goodyear 1R12-370/Contitech 910-14A490 1V 9336 Truck Air Spring Suitable for Fierstone W01-358-9336/Goodyear 1R12-370/Contitech 910-14A490 1V 9336 Truck Air Spring Suitable for Fierstone W01-358-9336/Goodyear 1R12-370/Contitech 910-14A490

Large Image :  1V 9336 Truck Air Spring Suitable for Fierstone W01-358-9336/Goodyear 1R12-370/Contitech 910-14A490

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 9336
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V 9336 Truck Air Spring Suitable for Fierstone W01-358-9336/Goodyear 1R12-370/Contitech 910-14A490

Description
OE Number: W01-358-9336,1T15M-4,1R12-370,566-24-3-076,910-14A490,84906362,AS-0053 Type: Truck Air Spring
Application: For Truck Air Suspension Packing: Neutral Packing Or Customized Packing
Warranty: 1 Year Condition: New
Minimum Order Quantity: 50 Pieces Sealing Configuration: Press-fit Cover Plate + Flange
Material: Rubber Piston Material: Plastic
Highlight:

Truck Air Spring for Firestone W01-358-9336

,

Truck Air Spring compatible with Goodyear 1R12-370

,

Truck Air Spring replacement for Contitech 910-14A490

1V 9336 Truck Air Spring Suitable for Fierstone W01-358-9336/Goodyear 1R12-370/Contitech 910-14A490
YITAO 1V 9336 truck air spring is manufactured with reference to the specifications of Firestone W01-358-9336, which can completely replace the original air spring, providing a comfortable and stable driving environment for your truck.
Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-9336 W013589336 / :W013589336
Firestone 1T15M-4 1T15M4 / :1T15M4
Goodyear 1R12-370 1R12370 / :1R12370
Goodyear 566-24-3-076 566243076 / :566243076
Contitech 910-14A490 91014A490 / :91014A490
Triangle 84906362 :84906362
Watson&Chalin AS-0053 AS0053 / :AS0053
Technical Specifications
Specifications Parameters
Natural height 434mm
Maximum height 414mm
Minimum height To be updated
Extended Height To be updated
Compressed Height 150mm
Top Plate Width 231mm
Piston Width 248mm
Outer diameter φ265
Weight 6.981 kg
Package Dimensions 27*27*36cm
9336 Truck Air Spring Drawing
1V 9336 Truck Air Spring Suitable for Fierstone W01-358-9336/Goodyear 1R12-370/Contitech 910-14A490 0
Delivery Information
Delivery Time Orders are typically shipped within 30 business days after payment is received
Packing Brown carton packing; we can also pack according to your requirements
Marks Generally display weight and size. We can also make shipping marks according to your requirements
Transportation Method Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods
International Transport Due to the international transportation, we need to pack according to strict requirements, in order to avoid the goods from being impacted. If the logistics information is stagnant during the transportation of the goods, please wait patiently. If you have any questions, please feel free to contact us.

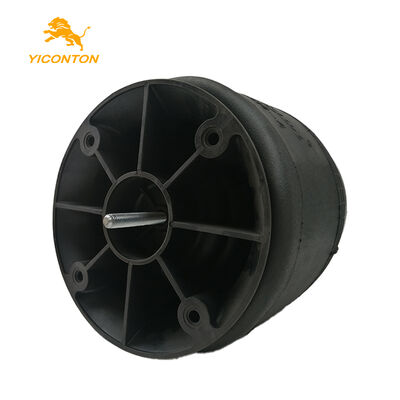

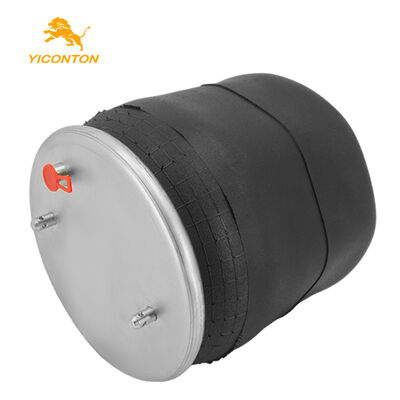

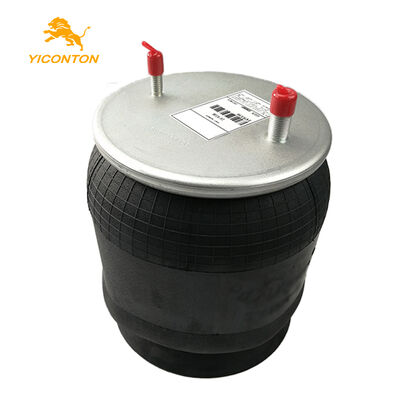

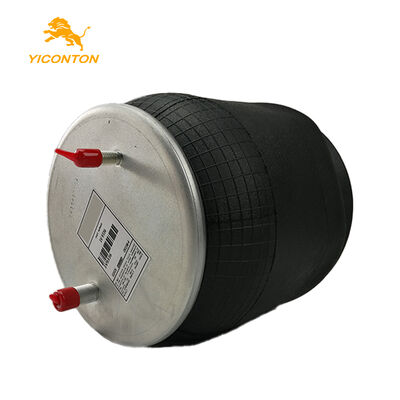

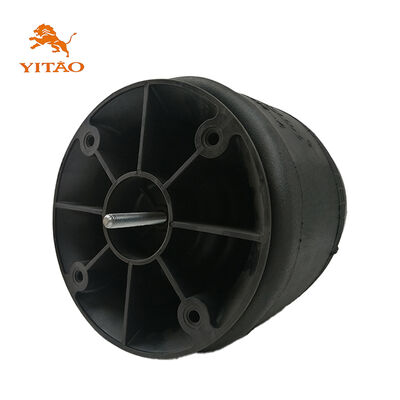

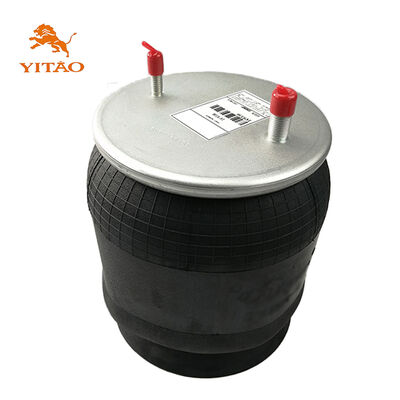

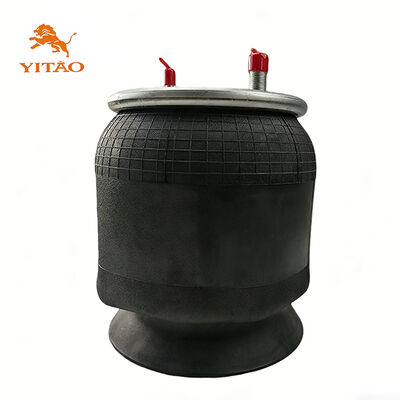

Product Images
1V 9336 Truck Air Spring Suitable for Fierstone W01-358-9336/Goodyear 1R12-370/Contitech 910-14A490 1 1V 9336 Truck Air Spring Suitable for Fierstone W01-358-9336/Goodyear 1R12-370/Contitech 910-14A490 2 1V 9336 Truck Air Spring Suitable for Fierstone W01-358-9336/Goodyear 1R12-370/Contitech 910-14A490 3 1V 9336 Truck Air Spring Suitable for Fierstone W01-358-9336/Goodyear 1R12-370/Contitech 910-14A490 4 1V 9336 Truck Air Spring Suitable for Fierstone W01-358-9336/Goodyear 1R12-370/Contitech 910-14A490 5 1V 9336 Truck Air Spring Suitable for Fierstone W01-358-9336/Goodyear 1R12-370/Contitech 910-14A490 6
Images shown are for reference only. Actual product may vary slightly.
