1V 6045 Truck Air Spring Suitable for Fierstone W01-M58-9880/Goodyear 1R10-709/Contitech 4882N1P05

Certification
china Guangdong Yiconton Air Spring Co., Ltd. certification
china Guangdong Yiconton Air Spring Co., Ltd. certification
I'm Online Chat Now

1V 6045 Truck Air Spring Suitable for Fierstone W01-M58-9880/Goodyear 1R10-709/Contitech 4882N1P05

1V 6045 Truck Air Spring Suitable for Fierstone W01-M58-9880/Goodyear 1R10-709/Contitech 4882N1P05
1V 6045 Truck Air Spring Suitable for Fierstone W01-M58-9880/Goodyear 1R10-709/Contitech 4882N1P05 1V 6045 Truck Air Spring Suitable for Fierstone W01-M58-9880/Goodyear 1R10-709/Contitech 4882N1P05 1V 6045 Truck Air Spring Suitable for Fierstone W01-M58-9880/Goodyear 1R10-709/Contitech 4882N1P05 1V 6045 Truck Air Spring Suitable for Fierstone W01-M58-9880/Goodyear 1R10-709/Contitech 4882N1P05 1V 6045 Truck Air Spring Suitable for Fierstone W01-M58-9880/Goodyear 1R10-709/Contitech 4882N1P05

Large Image :  1V 6045 Truck Air Spring Suitable for Fierstone W01-M58-9880/Goodyear 1R10-709/Contitech 4882N1P05

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 6045
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 5000pieces/Month

1V 6045 Truck Air Spring Suitable for Fierstone W01-M58-9880/Goodyear 1R10-709/Contitech 4882N1P05

Description
OE Number: 4882N1P05,34882K,20.4884.5.CM,3.66422,04.010.6100.930,04 OE No. 2: 04.060.6106.930,81.43600.6036,6056,81.43600.6067,W01-M58-9880,1R10-709
Type: Truck Air Spring Application: For Truck Air Suspension
Packing: Neutral Packing Or Customized Packing Warranty: 1 Year
Condition: New Minimum Order Quantity: 50 Pieces
Sealing Configuration: Press-fit Cover Plate + Flange Material: Rubber
Piston Material: Iron
Highlight:

1V 6045 truck air spring

,

Truck air spring for Firestone W01-M58-9880

,

Goodyear 1R10-709 compatible air spring

1V 6045 Truck Air Spring Suitable for Fierstone W01-M58-9880/Goodyear 1R10-709/Contitech 4882N1P05
YITAO 1V 6045 truck air spring is manufactured with reference to the specifications of Contitech 4882N1P05, which can completely replace the original air spring, providing a comfortable and stable driving environment for your truck.
Cross References
Brand Reference Numbers Numbering Discrepancy
Contitech 4882N1P05 :4882N1P05
Airtech 34882K :34882K
Airfren 20.4884.5.CM 2048845CM / :2048845CM
DT 3.66422 366422 / :366422
Templin 04.010.6100.930 040106100930 / :040106100930
Templin 04.060.6106.930 040606106930 / :040606106930
MAN 81.43600.6036 / 6056 81436006036 / 6056 / :81436006036 / :6056
MAN 81.43600.6067 81436006067 / :81436006067
Firestone W01-M58-9880 W01M589880 / :W01M589880
Goodyear 1R10-709 1R10709 / :1R10709
Technical Specifications
Specifications Parameters
Natural height 615mm
Maximum height 535mm
Minimum height 218mm
Extended Height 750mm
Compressed Height 288mm
Top Plate Width 252mm
Piston Width 176mm
Outer diameter φ224
Weight 8.941 kg
Package Dimensions 28*28*37.5cm
1V 6045 Truck Air Spring Drawing
1V 6045 Truck Air Spring Suitable for Fierstone W01-M58-9880/Goodyear 1R10-709/Contitech 4882N1P05 0
Delivery Information
Category Details
Delivery Time Orders are typically shipped within 30 business days after payment is received
Packing Brown carton packing; we can also pack according to your requirements
Marks Generally display weight and size. We can also make shipping marks according to your requirements
Transportation Method Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods
International Transport Due to international transportation, we need to pack according to strict requirements to avoid damage. If logistics information is stagnant during transport, please wait patiently. Contact us with any questions.
Product Images

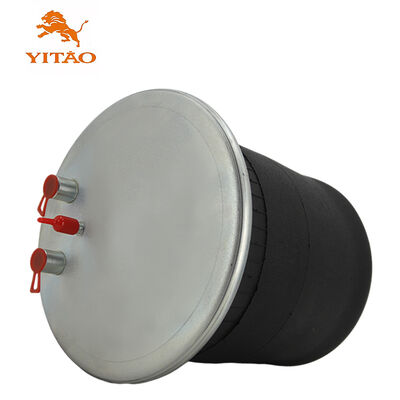

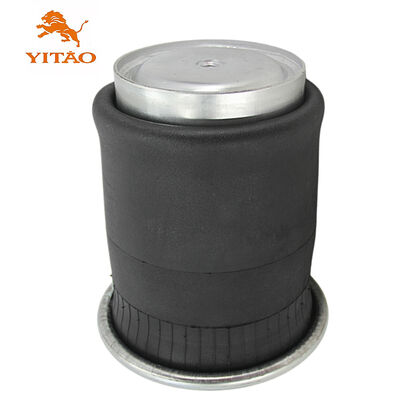

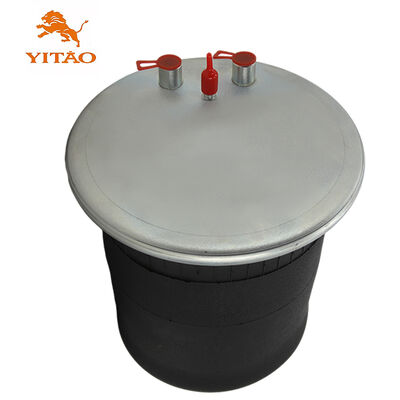

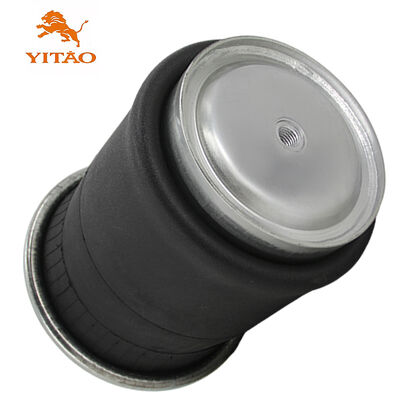

W01-M58-9880 4882N1P05 1R10-709 Truck Air Spring Real Pictures
1V 6045 Truck Air Spring Suitable for Fierstone W01-M58-9880/Goodyear 1R10-709/Contitech 4882N1P05 1 1V 6045 Truck Air Spring Suitable for Fierstone W01-M58-9880/Goodyear 1R10-709/Contitech 4882N1P05 2 1V 6045 Truck Air Spring Suitable for Fierstone W01-M58-9880/Goodyear 1R10-709/Contitech 4882N1P05 3 1V 6045 Truck Air Spring Suitable for Fierstone W01-M58-9880/Goodyear 1R10-709/Contitech 4882N1P05 4 1V 6045 Truck Air Spring Suitable for Fierstone W01-M58-9880/Goodyear 1R10-709/Contitech 4882N1P05 5 1V 6045 Truck Air Spring Suitable for Fierstone W01-M58-9880/Goodyear 1R10-709/Contitech 4882N1P05 6
Images shown are for reference only. Actual product may vary slightly.
