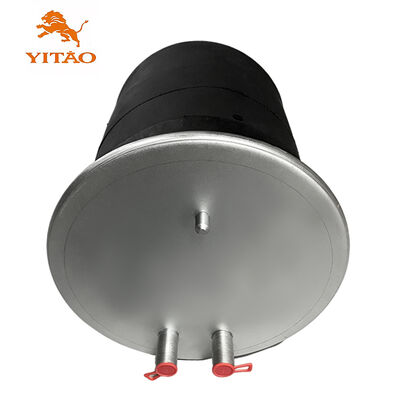

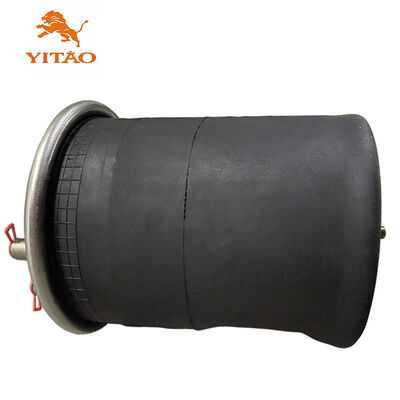

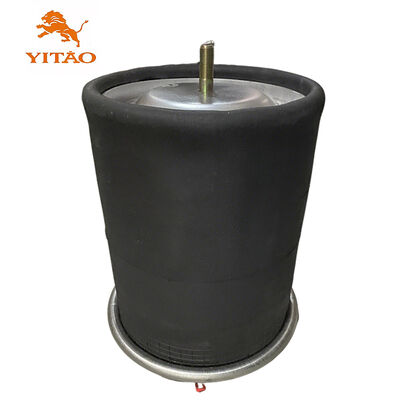

1V 6146 Truck Air Spring Suitable for Firestone W01-M58-8786/Goodyear 1R13-7111R13-711

Large Image : 1V 6146 Truck Air Spring Suitable for Firestone W01-M58-8786/Goodyear 1R13-7111R13-711

Product Details:

Place of Origin:	China
Brand Name:	Yiconton
Certification:	IATF16949
Model Number:	1V 6146

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Negotiable in person
Packaging Details:	Carton
Delivery Time:	30
Payment Terms:	T/T
Supply Ability:	5000pieces/Month

Contact Now

1V 6146 Truck Air Spring Suitable for Firestone W01-M58-8786/Goodyear 1R13-7111R13-711

Description

OE Numbe:	W01-M58-8786,1T19L-14,4912NP07,60880,1R13-711,5.0.10.294.307B,1DK28F4,B13B40,131202,34912K,16046,9518137110,5.010.294.307.C,MLF7063	Type:	Truck Air Spring
Condition:	New	Gross Weight:	To Be Updated
Net Weight:	To Be Updated	Packing Size:	To Be Updated
Outer Diameter:	φ265	Natural Height:	792mm
Maximum Height:	775mm	Minimum Hei535535ght:	267mm
Sealing Configuration:	Crimp Cover Plate + Vulcanized Sealing Plate	Piston Material:	Iron
Highlight:	1V 6164 truck air spring with warranty , Firestone W01-M58-8786 compatible air spring , Goodyear 1R13-711 replacement truck air spring

1V 6146 Truck Air Spring Suitable for Firestone W01-M58-8786/Goodyear 1R13-7111R13-711

High-quality replacement air spring designed for heavy-duty truck applications, compatible with multiple OEM part numbers.

Cross References

Brand	Reference Numbers	Numbering Discrepancy
Firestone	W01-M58-8786 / 1T19L-14	W01M588786 / 1T19L14 / :W01M588786 / :1T19L14
Contitech	4912NP07/60880	4912NP07 / 60880 / :4912NP07 / :60880
Goodyear	1R13-711	1R13711 / :1R13711
RVI	5.0.10.294.307B	5010294307B / :5010294307B
Phoenix	1DK28F4	:1DK28F4
Dunlop FR	B13B40	:B13B40
Airtech	131202/34912K	131202 / 34912K / :131202 / :34912K
Granning	16046	:16046
WABCO	9518137110	:9518137110
Renault	5.010.294.307.C	5010294307C / :5010294307C
Meritor	MLF7063	:MLF7063

Technical Specifications

Specifications	Parameters
Extended Height	790mm
Compressed Height	267mm
Top Plate Width	289mm
Piston Width	228mm
Weight	To be updated
e	To be updated

Product Information

Brand Name: Yiconton
Model Number: 1V 6164
OEM:W01-M58-8786,1T19L-14,4912NP07,60880,1R13-711,5.0.10.294.307B,1DK28F4,B13B40,131202,34912K,16046,9518137110,5.010.294.307.C,MLF7063
Certification: IATF16
Minimum Order Quantity: 50 pieces

Product Images

Images shown are for reference only. Actual product may vary slightly.
