1V 6030 Truck Air Spring Suitable for Firestone W01-M58-8474/Contitech 6608NP01/Goodyear 1R10-704

1V 6030 Truck Air Spring Suitable for Firestone W01-M58-8474/Contitech 6608NP01/Goodyear 1R10-704
1V 6030 Truck Air Spring Suitable for Firestone W01-M58-8474/Contitech 6608NP01/Goodyear 1R10-704 1V 6030 Truck Air Spring Suitable for Firestone W01-M58-8474/Contitech 6608NP01/Goodyear 1R10-704 1V 6030 Truck Air Spring Suitable for Firestone W01-M58-8474/Contitech 6608NP01/Goodyear 1R10-704 1V 6030 Truck Air Spring Suitable for Firestone W01-M58-8474/Contitech 6608NP01/Goodyear 1R10-704

Large Image :  1V 6030 Truck Air Spring Suitable for Firestone W01-M58-8474/Contitech 6608NP01/Goodyear 1R10-704

Product Details:
Place of Origin: China
Brand Name: Yiconton
Certification: IATF16949
Model Number: 1V 6030
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V 6030 Truck Air Spring Suitable for Firestone W01-M58-8474/Contitech 6608NP01/Goodyear 1R10-704

Description
OE Number: W01-M58-8474,132902,6608NP01,36416K,1R10-704,92500,1DF17B-1,9518110020,20.6608.1CM,2.62177,04.020.6201.05,MLF7151,04.060.6206.050,20582215,20531985,21961456,20456152,20374510,3171693,1076416,1075891,7422071639 Type: Truck Air Spring
Condition: New Gross Weight: 8.672 Kg
Net Weight: 7.964 Kg Packing Size: 28*28*46.5cm
Outer Diameter: φ205 Natural Height: 623mm
Maximum Height: 580mm Minimum Height: 198mm
Sealing Configuration: Press-fit Cover Plate + Flange Piston Material: Plastic
Highlight:

1V 6030 truck air spring with warranty

,

Firestone W01-M58-8474 compatible air spring

,

Goodyear 1R10-704 replacement truck air spring

1V 6030 Truck Air Spring
High-quality replacement air spring designed for heavy-duty truck applications, compatible with multiple OEM part numbers including Firestone W01-M58-8474, Contitech 6608NP01, Goodyear 1R10-704, and AB Vovo 20582215/21961456.
Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-M58-8474 W01M588474 / W01-M588474 / W01 M58 8474
Contitech 6608NP01 :6608NP01
Goodyear 1R10-704 1R10704 / 1R10 704 / :1R10704
Phoenix 1DF17B-1 1DF17B1 / 1DF17B-1 / 1DF17 B 1
Airfren 20.6608.1CM 2066081CM / 20 6608 1CM / :2066081CM
Templin 04.020.6201.05 04020620105 / 04 020 6201 05 / :04020620105
Templin 04.060.6206.050 040606206050 / 04 060 6206 050 / :040606206050
AB Vovo 20582215 :20582215
AB Vovo 20531985 :20531985
AB Vovo 21961456 :21961456
AB Vovo 20456152 :20456152
AB Vovo 20374510 :20374510
RENAULT TRUCKS 3171693 :3171693
RENAULT TRUCKS 1076416 :1076416
RENAULT TRUCKS 1075891 :1075891
RENAULT TRUCKS 7422071639 :7422071639
Airtech 132902 :132902
Airtech 36416K :36416K
Granning 92500 :92500
WABCO 9518110020 :9518110020
DT 2.62177 262177 / 2 62177 / :262177
Meritor MLF7151 :MLF7151
Technical Specifications
Specifications Parameters
Extended Height 475mm
Compressed Height 190mm
Top Plate Width 231mm
Piston Width 167mm
Weight 8.672 kg
Package Dimensions 28*28*46.5cm
Product Information
  • Brand Name: Yiconton
  • Model Number: 1V 6030
  • OEM: 1DF17B-1, 9518110020, 20.6608.1CM, 04.020.6201.05, MLF7151, 04.060.6206.050, 20582215, 20456152, 20374510, W01-M58-8474, 132902, 6608NP01, 36416K, 1R10-704, 92500
  • Certification: IATF16949
  • Minimum Order Quantity: 50 pieces

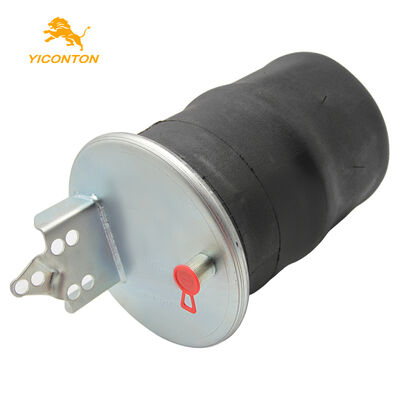

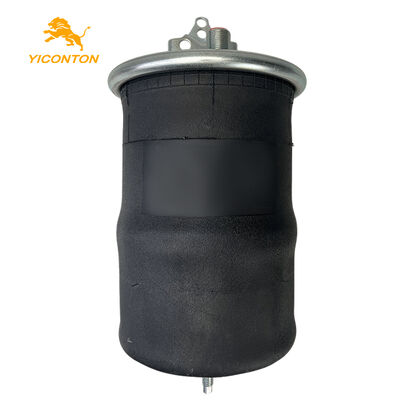

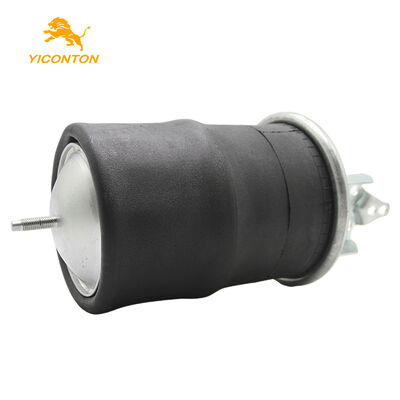

Product Images
1V 6030 Truck Air Spring Suitable for Firestone W01-M58-8474/Contitech 6608NP01/Goodyear 1R10-704 0 1V 6030 Truck Air Spring Suitable for Firestone W01-M58-8474/Contitech 6608NP01/Goodyear 1R10-704 1 1V 6030 Truck Air Spring Suitable for Firestone W01-M58-8474/Contitech 6608NP01/Goodyear 1R10-704 2 1V 6030 Truck Air Spring Suitable for Firestone W01-M58-8474/Contitech 6608NP01/Goodyear 1R10-704 3 1V 6030 Truck Air Spring Suitable for Firestone W01-M58-8474/Contitech 6608NP01/Goodyear 1R10-704 4 1V 6030 Truck Air Spring Suitable for Firestone W01-M58-8474/Contitech 6608NP01/Goodyear 1R10-704 5 1V 6030 Truck Air Spring Suitable for Firestone W01-M58-8474/Contitech 6608NP01/Goodyear 1R10-704 6
Images shown are for reference only. Actual product may vary slightly.
