1V 6027 Truck Air Spring Suitable for Firestone W01-M58-9760/Goodyear 1R12-762/Contitech 4713NP02

1V 6027 Truck Air Spring Suitable for Firestone W01-M58-9760/Goodyear 1R12-762/Contitech 4713NP02
1V 6027 Truck Air Spring Suitable for Firestone W01-M58-9760/Goodyear 1R12-762/Contitech 4713NP02 1V 6027 Truck Air Spring Suitable for Firestone W01-M58-9760/Goodyear 1R12-762/Contitech 4713NP02 1V 6027 Truck Air Spring Suitable for Firestone W01-M58-9760/Goodyear 1R12-762/Contitech 4713NP02 1V 6027 Truck Air Spring Suitable for Firestone W01-M58-9760/Goodyear 1R12-762/Contitech 4713NP02

Large Image :  1V 6027 Truck Air Spring Suitable for Firestone W01-M58-9760/Goodyear 1R12-762/Contitech 4713NP02

Product Details:
Place of Origin: China
Brand Name: Yiconton
Certification: IATF16949
Model Number: 1V 6027
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V 6027 Truck Air Spring Suitable for Firestone W01-M58-9760/Goodyear 1R12-762/Contitech 4713NP02

Description
OE Number: W01-M58-9760,1T17BR-8,1R12-762,4713NP02,TT23.09.098,1TS300-28,084.107-11A,04.060.6006.480,1DF22C-1,34713K,131842,2.62061,MLF7098,D12B24,10765941076595 Type: Truck Air Spring
Condition: New Gross Weight: 10.76 Kg
Net Weight: 10.26 Kg Packing Size: 26*27.3*36.5cm
Outer Diameter: φ243 Natural Height: 634mm
Maximum Height: 560mm Minimum Height: 230mm
Sealing Configuration: Vulcanized Cover Plate + Flange Piston Material: Iron
Highlight:

1V 6027 truck air spring

,

Firestone W01-M58-9760 air spring

,

Goodyear 1R12-762 compatible air spring

1V 6027 Truck Air Spring
High-quality replacement air spring designed for heavy-duty truck applications, compatible with multiple OEM part numbers including Firestone W01-M58-9760, Goodyear 1R12-762, Contitech 4713NP02, and AB Vovo 1076594.
Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-M58-9760 W01M589760 / W01-M589760 / W01 M58 9760
Firestone 1T17BR-8 1T17BR8 / 1T17BR-8 / 1T17 BR 8
Goodyear 1R12-762 1R12762 / 1R12 762 / :1R12762
Contitech 4713NP02 :4713NP02
Trucktechnic TT23.09.098 TT2309098 / TT23 09 098 / :TT2309098
CF Gomma 1TS300-28 1TS30028 / 1TS300 28 / :1TS30028
Peautomotive 084.107-11A/41 08410711A41 / 084 107-11A 41 / :08410711A41
Peautomotive 084.107-71A 08410771A / 084 107-71A / :08410771A
Templin 04.060.6006.480 040606006480 / 04 060 6006 480 / :040606006480
Templin 04.010.6100.480 040106100480 / 04 010 6100 480 / :040106100480
Templin 04.030.6102.480 040306102480 / 04 030 6102 480 / :040306102480
Phoenix 1DF22C-1 1DF22C1 / 1DF22C-1 / 1DF22 C 1
Airtech 34713K :34713K
Airtech 131842 :131842
DT 2.62061 262061 / 2 62061 / :262061
FEBI 20501 :20501
Meritor MLF7098 :MLF7098
Dunlop FR D12B24 :D12B24
AB Vovo 1076594 :1076594
AB Vovo 1076595 :1076595
Technical Specifications
Specifications Parameters
Extended Height 491
Compressed Height 201
Top Plate Width 262mm
Piston Width 189mm
Weight 10.76 kg
Package Dimensions 26*27.3*36.5cm
Product Information
  • Brand Name: Yiconton
  • Model Number: 1V 6027
  • OEM: W01-M58-9760, 1T17BR-8, 1R12-762, 4713NP02, TT23.09.098, 1TS300-28, 084.107-11A, 04.060.6006.480, 1DF22C-1, 34713K, 131842, 2.62061, MLF7098, D12B24, 1076594, 1076595
  • Certification: IATF16949
  • Minimum Order Quantity: 50 pieces

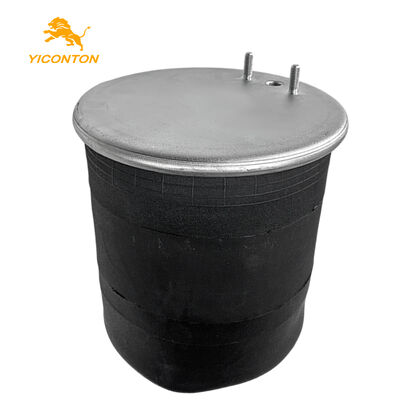

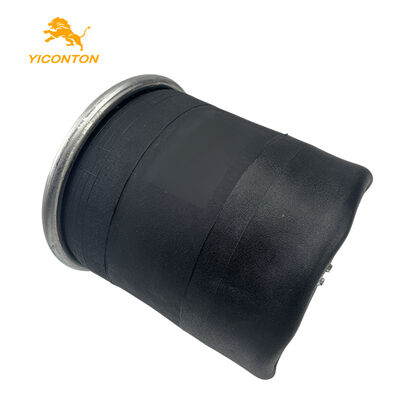

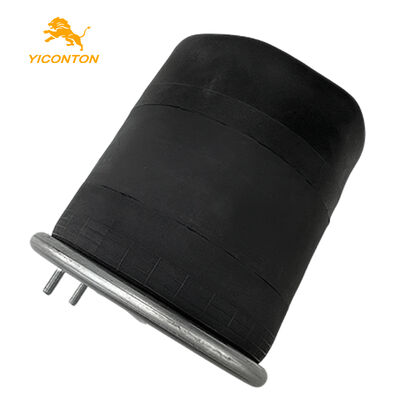

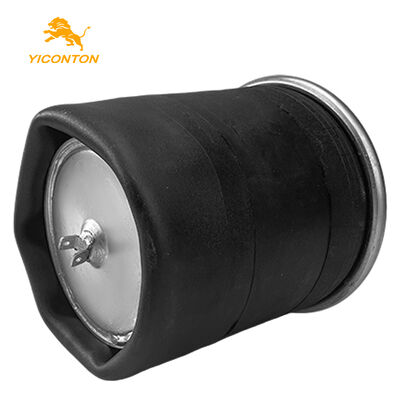

Product Images
1V 6027 Truck Air Spring Suitable for Firestone W01-M58-9760/Goodyear 1R12-762/Contitech 4713NP02 0 1V 6027 Truck Air Spring Suitable for Firestone W01-M58-9760/Goodyear 1R12-762/Contitech 4713NP02 1 1V 6027 Truck Air Spring Suitable for Firestone W01-M58-9760/Goodyear 1R12-762/Contitech 4713NP02 2 1V 6027 Truck Air Spring Suitable for Firestone W01-M58-9760/Goodyear 1R12-762/Contitech 4713NP02 3 1V 6027 Truck Air Spring Suitable for Firestone W01-M58-9760/Goodyear 1R12-762/Contitech 4713NP02 4 1V 6027 Truck Air Spring Suitable for Firestone W01-M58-9760/Goodyear 1R12-762/Contitech 4713NP02 5 1V 6027 Truck Air Spring Suitable for Firestone W01-M58-9760/Goodyear 1R12-762/Contitech 4713NP02 6
Images shown are for reference only. Actual product may vary slightly.
