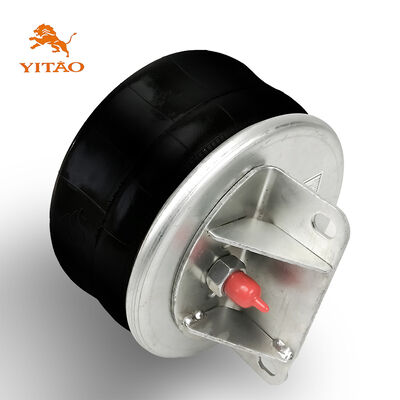

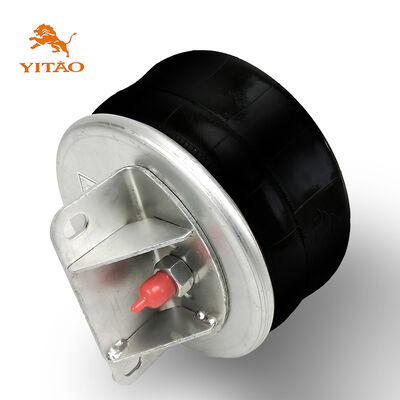

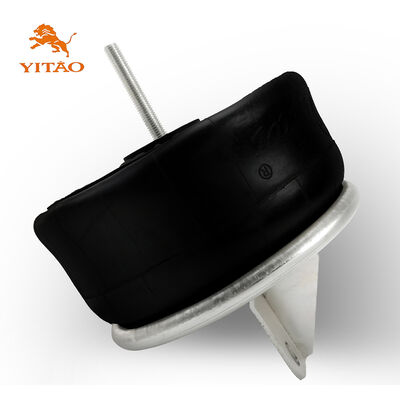

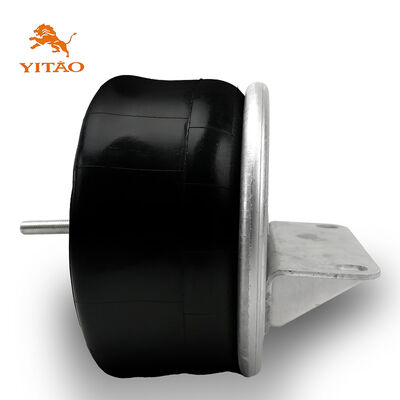

1V 9617 Truck Air Spring Suitable for Firestone W01-358-9617/Contitech 99-9P860/Goodyear 1R11-219

1V 9617 Truck Air Spring Suitable for Firestone W01-358-9617/Contitech 99-9P860/Goodyear 1R11-219
1V 9617 Truck Air Spring Suitable for Firestone W01-358-9617/Contitech 99-9P860/Goodyear 1R11-219 1V 9617 Truck Air Spring Suitable for Firestone W01-358-9617/Contitech 99-9P860/Goodyear 1R11-219 1V 9617 Truck Air Spring Suitable for Firestone W01-358-9617/Contitech 99-9P860/Goodyear 1R11-219 1V 9617 Truck Air Spring Suitable for Firestone W01-358-9617/Contitech 99-9P860/Goodyear 1R11-219

Large Image :  1V 9617 Truck Air Spring Suitable for Firestone W01-358-9617/Contitech 99-9P860/Goodyear 1R11-219

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 9617
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V 9617 Truck Air Spring Suitable for Firestone W01-358-9617/Contitech 99-9P860/Goodyear 1R11-219

Description
OE Number: W01-358-9617,1T15LA(-1),1R11-219,566223021,99-9P860,K-303-18,85146397 Condition: New
Type: Truck Air Spring Gross Weight: 5.825 Kg
Net Weight: 5.355 Kg Packing Size: 28*28*31.5 Cm
Outer Diameter: Φ235 Maximum Height: 255mm
Minimum Height: 100mm Piston Material: Plastic
Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate
Highlight:

1V 9617 truck air spring

,

Firestone W01-358-9617 air spring

,

Goodyear 1R11-219 truck suspension

1V 9617 Truck Air Spring
High-quality replacement air spring designed for heavy-duty truck applications, compatible with Firestone W01-358-9617, Contitech 99-9P860, and Goodyear 1R11-219.
Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-9617 W013589617 / W01-3589617 / W01 358 9617
Firestone 1T15LA(-1) 1T15LA1 / 1T15LA (-1) / :1T15LA1
Goodyear 1R11-219 1R11219 / 1R11 219 / :1R11219
Goodyear 566223021 :566223021
Contitech 99-9P860 999P860 / 99 9P860 / :999P860
Kenworth K-303-18 K30318 / K 303 18 / :K30318
Triangle 85146397 :85146397
Technical Specifications
Specifications Parameters
Extended Height 274mm
Compressed Height 99mm
Top Plate Width 231mm
Piston Width 208mm
Weight 5.825
Package Dimensions 28*28*31.5 cm
Product Information
  • Brand Name: Yiconton
  • Model Number: 1V 9617
  • OEM: W01-M58-8966, 1T66F-10.8, 881MB, 1R14-703, MLF7065, KR836-05, D14B36, 3881-01K, 1TC360-45
  • Manufacturing Origin: China
  • Certification: IATF16949
  • Minimum Order Quantity: 50 pieces
Product Images
1V 9617 Truck Air Spring Suitable for Firestone W01-358-9617/Contitech 99-9P860/Goodyear 1R11-219 01V 9617 Truck Air Spring Suitable for Firestone W01-358-9617/Contitech 99-9P860/Goodyear 1R11-219 11V 9617 Truck Air Spring Suitable for Firestone W01-358-9617/Contitech 99-9P860/Goodyear 1R11-219 2
Factory Showcase
1V 9617 Truck Air Spring Suitable for Firestone W01-358-9617/Contitech 99-9P860/Goodyear 1R11-219 3 1V 9617 Truck Air Spring Suitable for Firestone W01-358-9617/Contitech 99-9P860/Goodyear 1R11-219 4
Factory Overlook
Quality Control Inspection
1V 9617 Truck Air Spring Suitable for Firestone W01-358-9617/Contitech 99-9P860/Goodyear 1R11-219 5 1V 9617 Truck Air Spring Suitable for Firestone W01-358-9617/Contitech 99-9P860/Goodyear 1R11-219 6
Manufacturing Equipment
R&D Center
1V 9617 Truck Air Spring Suitable for Firestone W01-358-9617/Contitech 99-9P860/Goodyear 1R11-219 7 1V 9617 Truck Air Spring Suitable for Firestone W01-358-9617/Contitech 99-9P860/Goodyear 1R11-219 8
Assembly and Forming
Vulcanization Shop










Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods
  • International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions
Frequently Asked Questions
IS THE SAMPLE AVAILABLE?
Yes, we typically send samples via TNT, DHL, FEDEX or UPS. Delivery takes approximately 3 days. Customers are responsible for sample costs and airmail freight. Sample costs will be refunded after order placement.
WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the shipment date. For product failures within the warranty period, customers are responsible for replacement part costs.
CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
Yes, OEM services are welcomed.
I CANNOT FIND THE ITEMS I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
Yes. We provide product sourcing services for our customers. Please provide detailed information about the items you require.
Contact Us
Feel free to reach out. We'll get back to you within 24 hours (or sooner if we can!) and are excited to work with you.
