1V 9640 Truck Air Spring Suitable for Firestone W01-358-9640/Goodyear 1R12-367/Hendrickson HT-190T

1V 9640 Truck Air Spring Suitable for Firestone W01-358-9640/Goodyear 1R12-367/Hendrickson HT-190T
1V 9640 Truck Air Spring Suitable for Firestone W01-358-9640/Goodyear 1R12-367/Hendrickson HT-190T 1V 9640 Truck Air Spring Suitable for Firestone W01-358-9640/Goodyear 1R12-367/Hendrickson HT-190T 1V 9640 Truck Air Spring Suitable for Firestone W01-358-9640/Goodyear 1R12-367/Hendrickson HT-190T 1V 9640 Truck Air Spring Suitable for Firestone W01-358-9640/Goodyear 1R12-367/Hendrickson HT-190T 1V 9640 Truck Air Spring Suitable for Firestone W01-358-9640/Goodyear 1R12-367/Hendrickson HT-190T

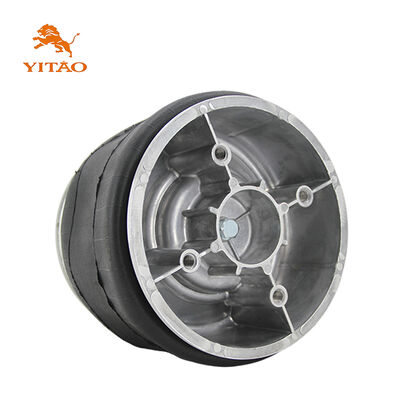

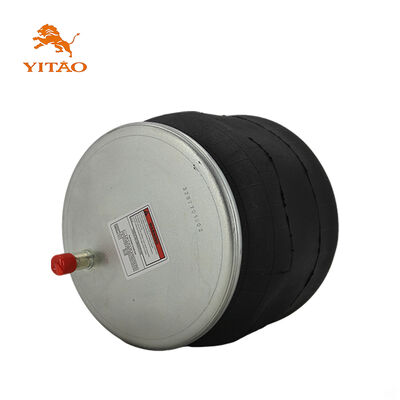

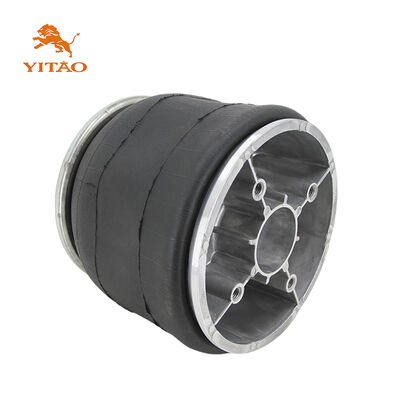

Large Image :  1V 9640 Truck Air Spring Suitable for Firestone W01-358-9640/Goodyear 1R12-367/Hendrickson HT-190T

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 9640
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V 9640 Truck Air Spring Suitable for Firestone W01-358-9640/Goodyear 1R12-367/Hendrickson HT-190T

Description
OE Number: W01-358-9640,1V15MT-3,1R12-367,S-20223,HT-190T,HS-190T Condition: New
Type: Truck Air Spring Gross Weight: 7.243 Kg
Net Weight: 6.785 Kg Packing Size: 28*28*31.5 Cm
Outer Diameter: Φ231 Maximum Height: 460mm
Minimum Height: 131mm Piston Material: Aluminum
Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate
Highlight:

Firestone W01-358-9640 truck air spring

,

Goodyear 1R12-367 air spring

,

Hendrickson HT-190T air suspension spring

1V 9640 Truck Air Spring Suitable for Firestone W01-358-9640/Goodyear 1R12-367/Hendrickson HT-190T
Product Overview

1V 9640 Truck Air Spring compatible with Firestone W01-358-9640, Goodyear 1R12-367, and Hendrickson HT-190T S-20223 HS-190T applications.

Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-9640 W013589640 / W01-3589640 / W01 358 9640
Firestone 1V15MT-3 1V15MT3 / 1V15MT-3 / 1V15 MT 3
Goodyear 1R12-367 1R12367 / 1R12 367 / :1R12367
Hendrickson S-20223 S20223 / S 20223 / :S20223
Hendrickson HT-190T HT190T / HT 190T / :HT190T
Hendrickson HS-190T HS190T / HS 190T / :HS190T
Technical Specifications
Specifications Parameters
Extended Height 401mm
Compressed Height 137mm
Top Plate Width 231mm
Piston Width 241.5mm
Weight 7.243 kg
Package Dimensions 28*28*31.5 cm
Product Information
  • Brand Name: Yiconton
  • Model Number: 1V 9640 W01-358-9640,1V15MT-3,1R12-367,S-20223,HT-190T,HS-190T
  • Manufacturing Origin: China
  • Certification: IATF16949
  • Minimum Order Quantity: 50 pieces

Factory Showcase

1V 9640 Truck Air Spring Suitable for Firestone W01-358-9640/Goodyear 1R12-367/Hendrickson HT-190T 0 1V 9640 Truck Air Spring Suitable for Firestone W01-358-9640/Goodyear 1R12-367/Hendrickson HT-190T 1
Factory Overlook
Quality Control Inspection
1V 9640 Truck Air Spring Suitable for Firestone W01-358-9640/Goodyear 1R12-367/Hendrickson HT-190T 2 1V 9640 Truck Air Spring Suitable for Firestone W01-358-9640/Goodyear 1R12-367/Hendrickson HT-190T 3
Manufacturing Equipment
R&D Center
1V 9640 Truck Air Spring Suitable for Firestone W01-358-9640/Goodyear 1R12-367/Hendrickson HT-190T 4 1V 9640 Truck Air Spring Suitable for Firestone W01-358-9640/Goodyear 1R12-367/Hendrickson HT-190T 5
Assembly and Forming
Vulcanization Shop










Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods
  • International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions
Frequently Asked Questions
IS THE SAMPLE AVAILABLE?
Yes, we typically send samples via TNT, DHL, FEDEX or UPS. Delivery takes approximately 3 days. Customers are responsible for sample costs and airmail freight. Sample costs will be refunded after order placement.
WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the shipment date. For product failures within the warranty period, customers are responsible for replacement part costs.
CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
Yes, OEM services are welcomed.
I CANNOT FIND THE ITEMS I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
Yes. We provide product sourcing services for our customers. Please provide detailed information about the items you require.
