1V 9625 Truck Air Spring Suitable for Firestone W01-358-9625/Contitech 99-10P538/Kenworth K30-323

1V 9625 Truck Air Spring Suitable for Firestone W01-358-9625/Contitech 99-10P538/Kenworth K30-323
1V 9625 Truck Air Spring Suitable for Firestone W01-358-9625/Contitech 99-10P538/Kenworth K30-323 1V 9625 Truck Air Spring Suitable for Firestone W01-358-9625/Contitech 99-10P538/Kenworth K30-323 1V 9625 Truck Air Spring Suitable for Firestone W01-358-9625/Contitech 99-10P538/Kenworth K30-323 1V 9625 Truck Air Spring Suitable for Firestone W01-358-9625/Contitech 99-10P538/Kenworth K30-323

Large Image :  1V 9625 Truck Air Spring Suitable for Firestone W01-358-9625/Contitech 99-10P538/Kenworth K30-323

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 9625
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V 9625 Truck Air Spring Suitable for Firestone W01-358-9625/Contitech 99-10P538/Kenworth K30-323

Description
OE Number: W01-358-9625,1T15LA0,99-10P538,1R11-222,566-22-3-021,K30-323,K03-325,8538 Condition: New
Type: Truck Air Spring Gross Weight: 6.729 Kg
Net Weight: 6.229 Kg Packing Size: 27*26.5*30 Cm
Outer Diameter: Φ231 Maximum Height: 278mm
Minimum Height: 140mm Piston Material: Plastic
Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate
Highlight:

Truck Air Spring for Firestone W01-358-9625

,

Truck Air Spring compatible with Kenworth K30-323

,

Truck Air Spring replacement Contitech 99-10P538

1V 9625 Truck Air Spring Suitable for Firestone W01-358-9625/Contitech 99-10P538/Kenworth K30-323
Product Overview

1V 9625 Truck Air Spring suitable for Firestone W01-358-9625, Contitech 99-10P538, Kenworth K30-323, and Goodyear 1R11-222 566-22-3-021 applications.

Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-9625 W013589625 / W01-3589625 / W01 358 9625
Firestone 1T15LA0 :1T15LA0
Contitech 99-10P538 9910P538 / 99 10P538 / :9910P538
Goodyear 1R11-222 1R11222 / 1R11 222 / :1R11222
Goodyear 566-22-3-021 566223021 / 566 22 3 021 / :566223021
Kenworth K30-323 K30323 / K30 323 / :K30323
Kenworth K03-325 K03325 / K03 325 / :K03325
Triangle 8538 :8538
Technical Specifications
Specifications Parameters
Extended Height 300mm
Compressed Height 153mm
Top Plate Width 231mm
Piston Width 208mm
Weight 6.729 kg
Package Dimensions 27*26.5*30 cm
Product Information
  • Brand Name: Yiconton
  • Model Number: 1V 9625 W01-358-9625,1T15LA0,99-10P538,1R11-222,566-22-3-021,K30-323,K03-325,8538
  • Manufacturing Origin: China
  • Certification: IATF16949
  • Minimum Order Quantity: 50 pieces

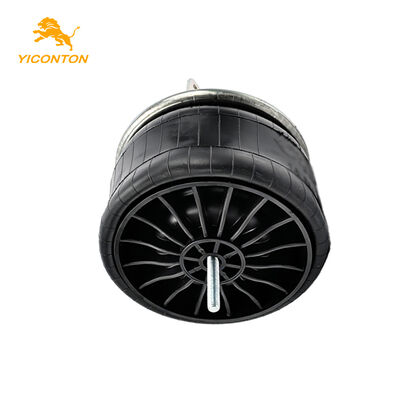

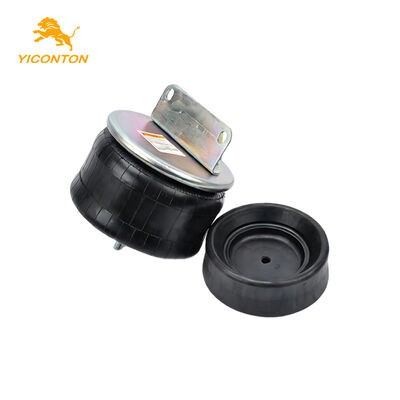

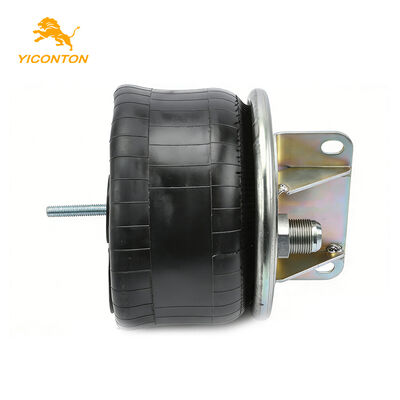

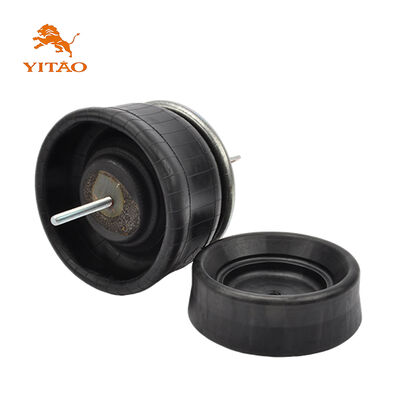

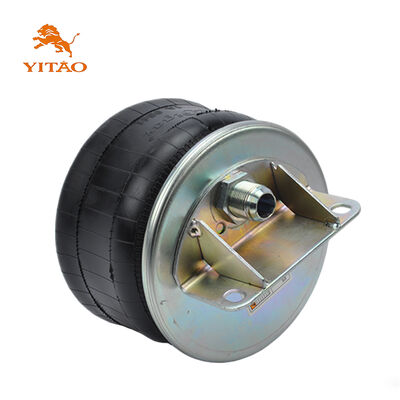

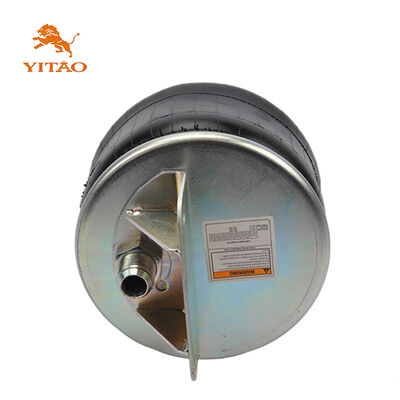

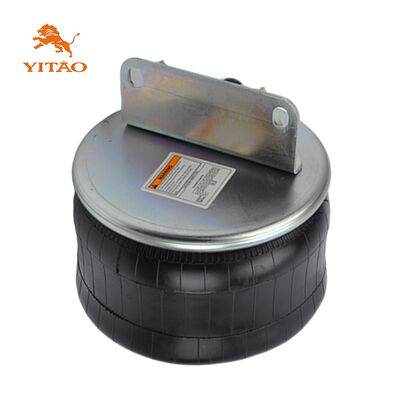

Product Images
1V 9625 Truck Air Spring Suitable for Firestone W01-358-9625/Contitech 99-10P538/Kenworth K30-323 01V 9625 Truck Air Spring Suitable for Firestone W01-358-9625/Contitech 99-10P538/Kenworth K30-323 11V 9625 Truck Air Spring Suitable for Firestone W01-358-9625/Contitech 99-10P538/Kenworth K30-323 2

Factory Showcase

1V 9625 Truck Air Spring Suitable for Firestone W01-358-9625/Contitech 99-10P538/Kenworth K30-323 3 1V 9625 Truck Air Spring Suitable for Firestone W01-358-9625/Contitech 99-10P538/Kenworth K30-323 4
Factory Overlook
Quality Control Inspection
1V 9625 Truck Air Spring Suitable for Firestone W01-358-9625/Contitech 99-10P538/Kenworth K30-323 5 1V 9625 Truck Air Spring Suitable for Firestone W01-358-9625/Contitech 99-10P538/Kenworth K30-323 6
Manufacturing Equipment
R&D Center
1V 9625 Truck Air Spring Suitable for Firestone W01-358-9625/Contitech 99-10P538/Kenworth K30-323 7 1V 9625 Truck Air Spring Suitable for Firestone W01-358-9625/Contitech 99-10P538/Kenworth K30-323 8
Assembly and Forming
Vulcanization Shop









Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods
  • International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions
Frequently Asked Questions
IS THE SAMPLE AVAILABLE?
Yes, we typically send samples via TNT, DHL, FEDEX or UPS. Delivery takes approximately 3 days. Customers are responsible for sample costs and airmail freight. Sample costs will be refunded after order placement.
WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the shipment date. For product failures within the warranty period, customers are responsible for replacement part costs.
CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
Yes, OEM services are welcomed.
I CANNOT FIND THE ITEMS I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
Yes. We provide product sourcing services for our customers. Please provide detailed information about the items you require.
