1V 9647 Truck Air Spring Suitable for Firestone W01-358-9647/1T15/MACK 57QL417M/Hendrickson 58786-2

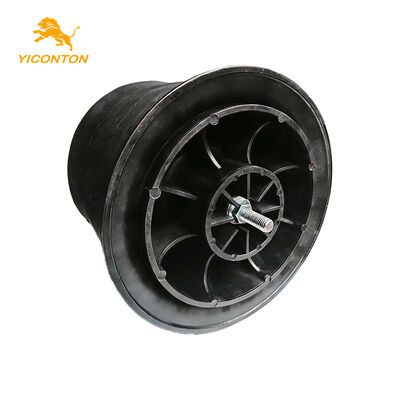

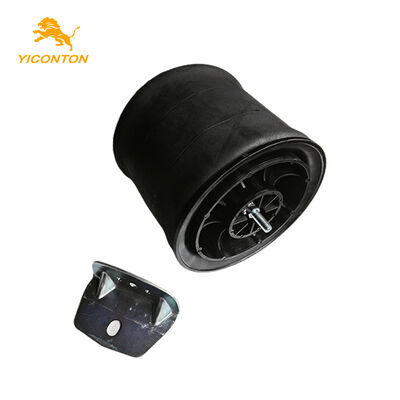

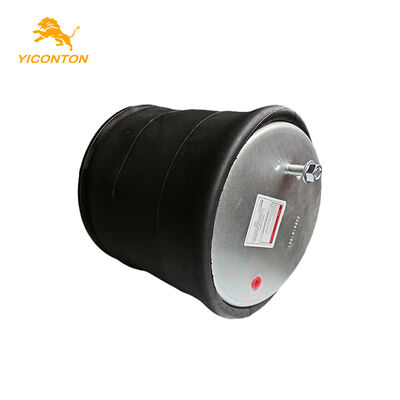

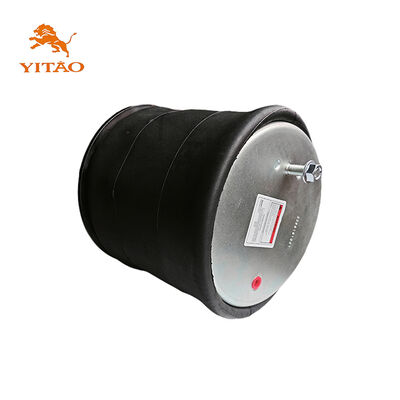

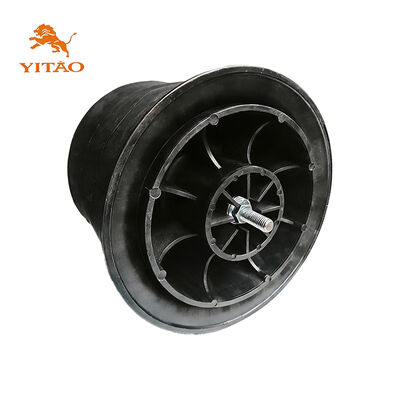

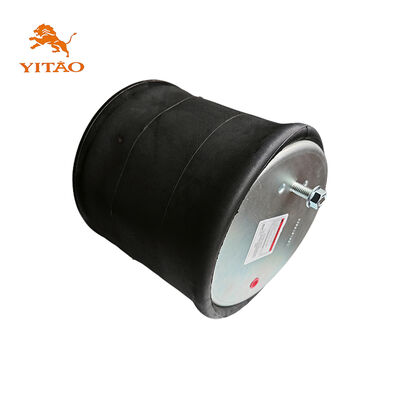

Large Image : 1V 9647 Truck Air Spring Suitable for Firestone W01-358-9647/1T15/MACK 57QL417M/Hendrickson 58786-2

Product Details:

Place of Origin:	China
Brand Name:	YITAO
Certification:	IATF16949
Model Number:	1V 9647

Payment & Shipping Terms:

Minimum Order Quantity:	50 pieces
Price:	Negotiable in person
Packaging Details:	Carton
Delivery Time:	30
Payment Terms:	T/T
Supply Ability:	5000pieces/Month

Contact Now

1V 9647 Truck Air Spring Suitable for Firestone W01-358-9647/1T15/MACK 57QL417M/Hendrickson 58786-2

Description

OE Number:	W01-358-9647,1T15,910-17.5P550,57QL417M,8550,6391,58786-2,649172,Bracket 6051	Condition:	New
Type:	Truck Air Spring	Gross Weight:	/
Net Weight:	/	Packing Size:	/
Outer Diameter:	Φ255	Maximum Height:	545mm
Minimum Height:	185mm	Piston Material:	Plastic
Sealing Configuration:	Crimp Cover Plate + Vulcanized Sealing Plate
Highlight:	Firestone truck air spring replacement , MACK 57QL417M air suspension spring , Hendrickson 58786-2 air spring

1V 9647 Truck Air Spring Suitable for Firestone W01-358-9647/1T15/MACK 57QL417M/Hendrickson 58786-2

1V 9647 Truck Air Spring suitable for Firestone W01-358-9647/1T15/MACK 57QL417M/Hendrickson 58786-2

Cross References

Brand	Reference Numbers	Numbering Discrepancy
Firestone	W01-358-9647	W013589647 / W01-3589647 / W01 358 9647
Firestone	1T15	Variants of 1T15
Contitech	910-17.5P550	91017.5P550 / 910 17.5 P550 / 910-175P550
MACK	57QL417M	:57QL417M
Triangle	8550	:8550
Triangle	6391	:6391
Hendrickson	58786-2	587862 / 58786 2 / :587862
Hendrickson	649172	:649172
Note	Bracket 6051	Bracket6051 / Bracket 6051

Technical Specifications

Specifications	Parameters
Extended Height	559mm
Compressed Height	178mm
Top Plate Width	231mm
Piston Width	254mm
Weight	/
Package Dimensions	/

Product Information

Brand Name: Yiconton
Model Number: 1V 9647 W01-358-9647,1T15,910-17.5P550,57QL417M,8550,6391,58786-2,649172,Bracket 6051
Manufacturing Origin: China
Certification: IATF16949
Minimum Order Quantity: 50 pieces

Product Images

Factory Showcase


Factory Overlook	Quality Control Inspection

Manufacturing Equipment	R&D Center

Assembly and Forming	Vulcanization Shop

Delivery Information

Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
Packing Method: Brown carton packing; we can also pack according to your requirements
Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements
Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods
International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions

Frequently Asked Questions

IS THE SAMPLE AVAILABLE?

Yes, we typically send samples via TNT, DHL, FEDEX or UPS. Delivery takes approximately 3 days. Customers are responsible for sample costs and airmail freight. Sample costs will be refunded after order placement.

WHAT IS YOUR WARRANTY TERM?

Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the shipment date. For product failures within the warranty period, customers are responsible for replacement part costs.

CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?

Yes, OEM services are welcomed.

I CANNOT FIND THE ITEMS I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?

Yes. We provide product sourcing services for our customers. Please provide detailed information about the items you require.

Feel free to reach out. We'll get back to you within 24 hours (or sooner if we can!) and are excited to work with you.
