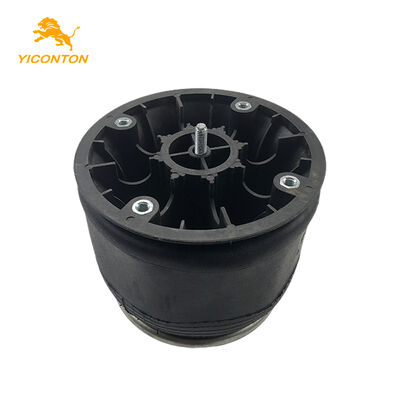

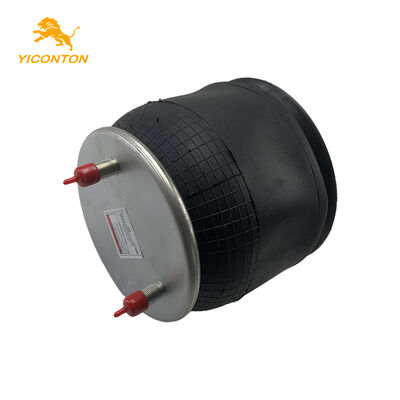

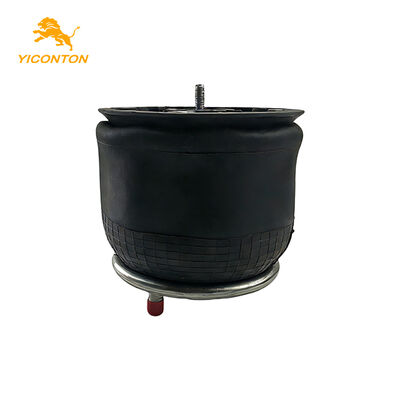

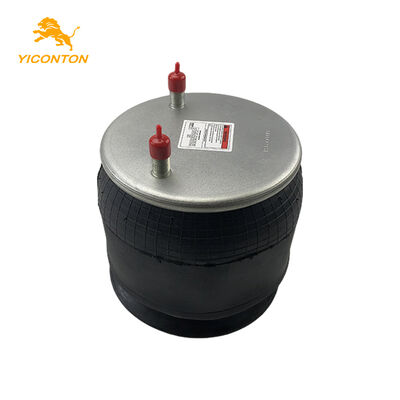

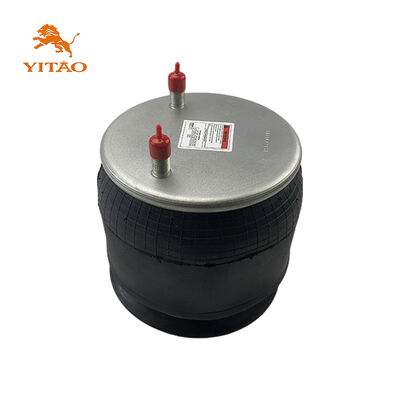

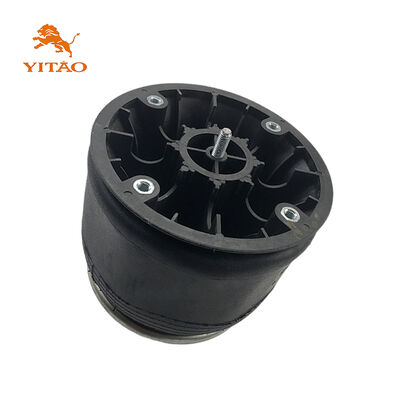

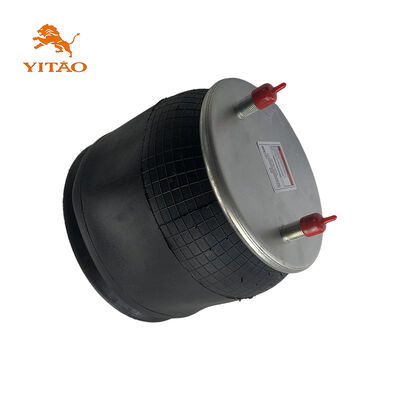

1V 9644 Truck Air Spring Suitable for Firestone W01-358-9644 1T15M-6/Contitech 910-16P569

1V 9644 Truck Air Spring Suitable for Firestone W01-358-9644 1T15M-6/Contitech 910-16P569
1V 9644 Truck Air Spring Suitable for Firestone W01-358-9644 1T15M-6/Contitech 910-16P569 1V 9644 Truck Air Spring Suitable for Firestone W01-358-9644 1T15M-6/Contitech 910-16P569 1V 9644 Truck Air Spring Suitable for Firestone W01-358-9644 1T15M-6/Contitech 910-16P569 1V 9644 Truck Air Spring Suitable for Firestone W01-358-9644 1T15M-6/Contitech 910-16P569

Large Image :  1V 9644 Truck Air Spring Suitable for Firestone W01-358-9644 1T15M-6/Contitech 910-16P569

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 9644
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V 9644 Truck Air Spring Suitable for Firestone W01-358-9644 1T15M-6/Contitech 910-16P569

Description
OE Number: W01-358-9644,1T15M-6,910-16P569 Condition: New
Type: Truck Air Spring Gross Weight: 7.51 Kg
Net Weight: 7.152 Kg Packing Size: 28*28*31.5 Cm
Outer Diameter: Φ255 Maximum Height: 510mm
Minimum Height: 179mm Piston Material: Plastic
Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate
Highlight:

Firestone truck air spring replacement

,

Contitech 910-16P569 air spring

,

1V 9644 truck air suspension part

1V 9644 Truck Air Spring Suitable for Firestone W01-358-9644 1T15M-6/Contitech 910-16P569
1V 9644 Truck Air Spring
Suitable for Firestone W01-358-9644 1T15M-6/Contitech 910-16P569
Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-9644 W013589644 / W01-3589644 / W01 358 9644
Firestone 1T15M-6 1T15M6 / 1T15M-6 / 1T15 M 6
Contitech 910-16P569 91016P569 / 910 16P569 / 910-16P569
Technical Specifications
Specifications Parameters
Extended Height 527mm
Compressed Height 188mm
Top Plate Width 231mm
Piston Width 260mm
Weight 7.51kg
Package Dimensions 28*28*31.5 cm
Product Information
  • Brand Name: Yiconton
  • Model Number: 1V 9644 W01-358-9644,1T15M-6,910-16P569
  • Manufacturing Origin: China
  • Certification: IATF16949
  • Minimum Order Quantity: 50 pieces
Factory Showcase
1V 9644 Truck Air Spring Suitable for Firestone W01-358-9644 1T15M-6/Contitech 910-16P569 0 1V 9644 Truck Air Spring Suitable for Firestone W01-358-9644 1T15M-6/Contitech 910-16P569 1
Factory Overlook
Quality Control Inspection
1V 9644 Truck Air Spring Suitable for Firestone W01-358-9644 1T15M-6/Contitech 910-16P569 2 1V 9644 Truck Air Spring Suitable for Firestone W01-358-9644 1T15M-6/Contitech 910-16P569 3
Manufacturing Equipment
R&D Center
1V 9644 Truck Air Spring Suitable for Firestone W01-358-9644 1T15M-6/Contitech 910-16P569 4 1V 9644 Truck Air Spring Suitable for Firestone W01-358-9644 1T15M-6/Contitech 910-16P569 5
Assembly and Forming
Vulcanization Shop










Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods
  • International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions
Frequently Asked Questions
IS THE SAMPLE AVAILABLE?
Yes, we typically send samples via TNT, DHL, FEDEX or UPS. Delivery takes approximately 3 days. Customers are responsible for sample costs and airmail freight. Sample costs will be refunded after order placement.
WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the shipment date. For product failures within the warranty period, customers are responsible for replacement part costs.
CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
Yes, OEM services are welcomed.
I CANNOT FIND THE ITEMS I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
Yes. We provide product sourcing services for our customers. Please provide detailed information about the items you require.
