1V 9978 Truck Air Spring Suitable for Firestone W01-358-9978 / Hendrickson S-28929-48

1V 9978 Truck Air Spring Suitable for Firestone W01-358-9978 / Hendrickson S-28929-48
1V 9978 Truck Air Spring Suitable for Firestone W01-358-9978 / Hendrickson S-28929-48 1V 9978 Truck Air Spring Suitable for Firestone W01-358-9978 / Hendrickson S-28929-48 1V 9978 Truck Air Spring Suitable for Firestone W01-358-9978 / Hendrickson S-28929-48 1V 9978 Truck Air Spring Suitable for Firestone W01-358-9978 / Hendrickson S-28929-48

Large Image :  1V 9978 Truck Air Spring Suitable for Firestone W01-358-9978 / Hendrickson S-28929-48

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 9978
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V 9978 Truck Air Spring Suitable for Firestone W01-358-9978 / Hendrickson S-28929-48

Description
OE Number: W01-358-9978,IR12-668,S-28929-48,FS9978 Condition: New
Type: Truck Air Spring Gross Weight: 7.466 Kg
Net Weight: 7.033 Kg Packing Size: 28*28*32
Outer Diameter: Φ265 Maximum Height: 470mm
Minimum Height: 180mm Piston Material: Plastic
Sealing Configuration: Crimp Cover Plate + Vulcanized Sealing Plate
Highlight:

Truck Air Spring for Firestone W01-358-9978

,

Hendrickson S-28929-48 Air Spring

,

Truck Air Spring with warranty

1V 9978 Truck Air Spring

for Firestone W01-358-9978 / Hendrickson S-28929-48 / Goodyear / IR12-668 applications.

Cross References
Brand Reference Numbers Numbering Discrepancy
Firestone W01-358-9978 W013589978 / W01-3589978 / W01 358 9978
Goodyear 1R12-668 1R12668 / 1R12 668 / :1R12668
Hendrickson S-28929-48 S2892948 / S 28929 48 / :S2892948
Meritor FS9978 :FS9978
Technical Specifications
Specifications Parameters
Extended Height 549mm
Compressed Height 177mm
Top Plate Width 231mm
Piston Width 259mm
Weight 7.466 kg
Package Dimensions 28*28*37.5 cm
Product Information
  • Brand Name: Yiconton
  • Model Number: 1V 9978 W01-358-9978, IR12-668, S-28929-48, FS9978
  • Manufacturing Origin: China
  • Certification: IATF16949
  • Minimum Order Quantity: 50 pieces

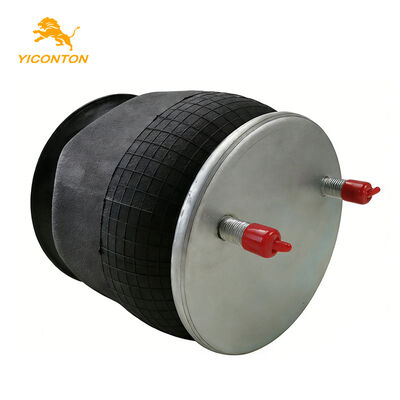

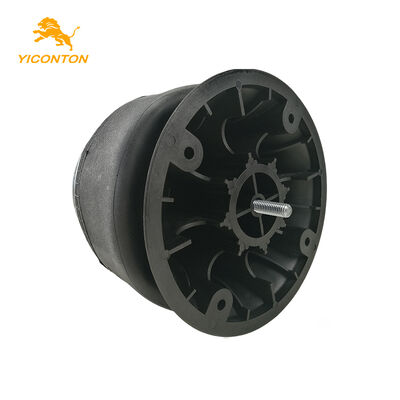

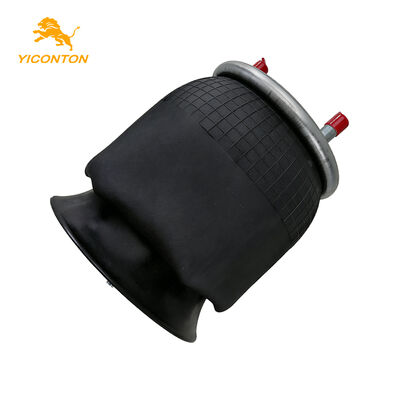

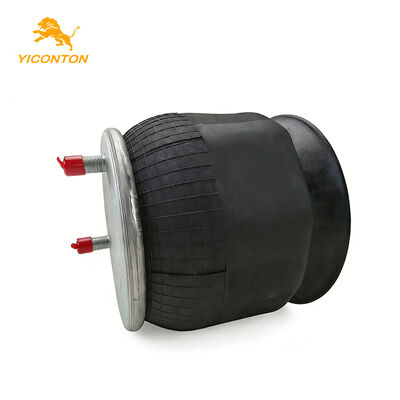

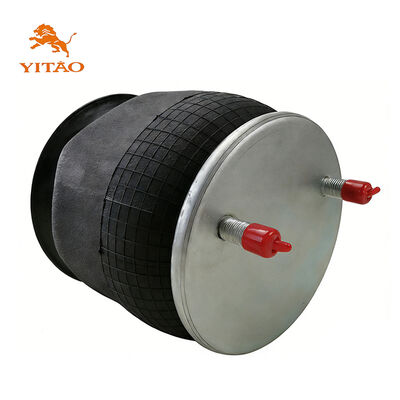

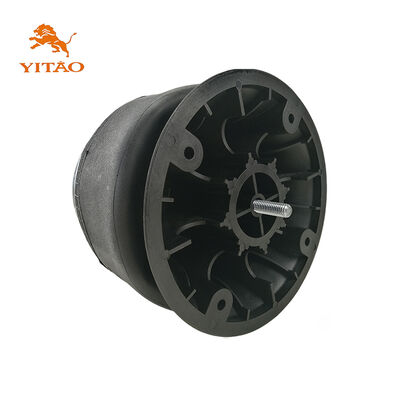

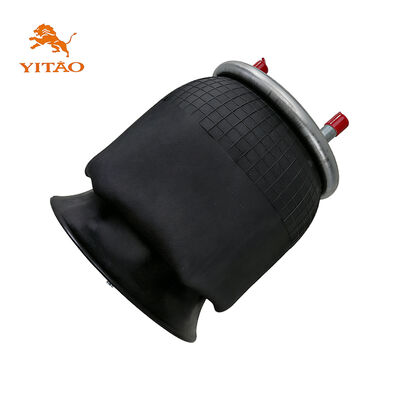

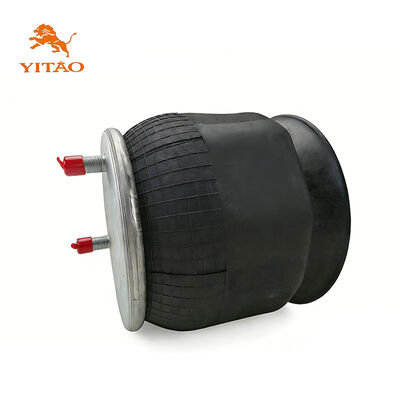

Product Images
1V 9978 Truck Air Spring Suitable for Firestone W01-358-9978 / Hendrickson S-28929-48 0 1V 9978 Truck Air Spring Suitable for Firestone W01-358-9978 / Hendrickson S-28929-48 1 1V 9978 Truck Air Spring Suitable for Firestone W01-358-9978 / Hendrickson S-28929-48 2
Factory Showcase
1V 9978 Truck Air Spring Suitable for Firestone W01-358-9978 / Hendrickson S-28929-48 3 1V 9978 Truck Air Spring Suitable for Firestone W01-358-9978 / Hendrickson S-28929-48 4
Factory Overlook
Quality Control Inspection
1V 9978 Truck Air Spring Suitable for Firestone W01-358-9978 / Hendrickson S-28929-48 5 1V 9978 Truck Air Spring Suitable for Firestone W01-358-9978 / Hendrickson S-28929-48 6
Manufacturing Equipment
R&D Center
1V 9978 Truck Air Spring Suitable for Firestone W01-358-9978 / Hendrickson S-28929-48 7 1V 9978 Truck Air Spring Suitable for Firestone W01-358-9978 / Hendrickson S-28929-48 8
Assembly and Forming
Vulcanization Shop














Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods
  • International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions
Frequently Asked Questions
IS THE SAMPLE AVAILABLE?
Yes, we typically send samples via TNT, DHL, FEDEX or UPS. Delivery takes approximately 3 days. Customers are responsible for sample costs and airmail freight. Sample costs will be refunded after order placement.
WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the shipment date. For product failures within the warranty period, customers are responsible for replacement part costs.
CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
Yes, OEM services are welcomed.
I CANNOT FIND THE ITEMS I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
Yes. We provide product sourcing services for our customers. Please provide detailed information about the items you require.
