1V 9541 Truck Air Spring, Suitable for Firestone W01-358-9541/Contitech 99-10S861/Bellow 1T15LA0

1V 9541 Truck Air Spring, Suitable for Firestone W01-358-9541/Contitech 99-10S861/Bellow 1T15LA0
1V 9541 Truck Air Spring, Suitable for Firestone W01-358-9541/Contitech 99-10S861/Bellow 1T15LA0 1V 9541 Truck Air Spring, Suitable for Firestone W01-358-9541/Contitech 99-10S861/Bellow 1T15LA0 1V 9541 Truck Air Spring, Suitable for Firestone W01-358-9541/Contitech 99-10S861/Bellow 1T15LA0 1V 9541 Truck Air Spring, Suitable for Firestone W01-358-9541/Contitech 99-10S861/Bellow 1T15LA0

Large Image :  1V 9541 Truck Air Spring, Suitable for Firestone W01-358-9541/Contitech 99-10S861/Bellow 1T15LA0

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 9541
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V 9541 Truck Air Spring, Suitable for Firestone W01-358-9541/Contitech 99-10S861/Bellow 1T15LA0

Description
OE Number: W01-358-9541,1T15LA0,99-10S861 Condition: New
Type: Truck Air Spring Gross Weight: 5.994 Kg
Net Weight: 5.524 Kg Packing Size: 28*28*37.5
Outer Diameter: Φ231 Maximum Height: 255mm
Minimum Height: 105mm Piston Material: Plastic
Highlight:

Truck Air Spring for Firestone W01-358-9541

,

Truck Air Spring with Contitech 99-10S861

,

Truck Air Spring Bellow 1T15LA0

1V 9541 Truck Air Spring
Suitable for Firestone W01-358-9541 / Contitech 99-10S861 / Bellow 1T15LA0
Cross References
Brand Part Number Numbering Discrepancy
Firestone W01-358-9541 W01358-9541 / W01-3589541 / W01 358 9541
Contitech 99-10S861 9910S861 / 99-10S861 / 99 10S 861
Bellow 1T15LA0 :1T15LA0

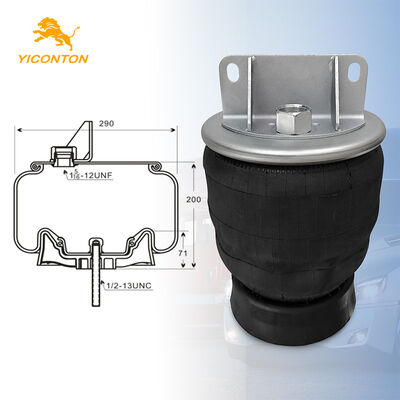

Technical Specifications
Specifications Parameters
Extended Height 200mm
Compressed Height /
Top Plate Width 231mm
Piston Width 208mm
Weight 5.994 kg
Package Dimensions 28*28*37.5 cm
Product Information
  • Brand Name: Yiconton
  • Model Number: 1V 9541 W01-358-9541, 1T15LA0, 99-10S861
  • Manufacturing Origin: China
  • Certification: IATF16949
  • Minimum Order Quantity: 50 pieces

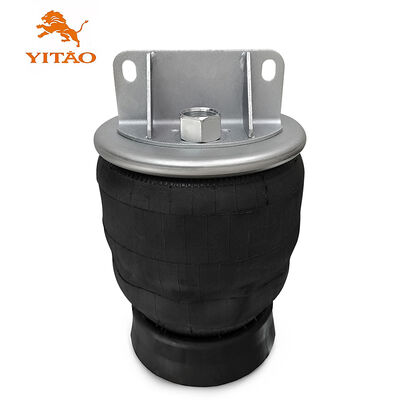

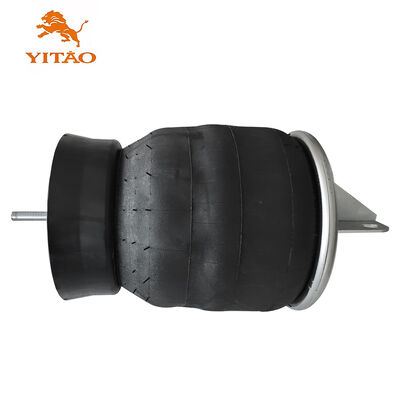

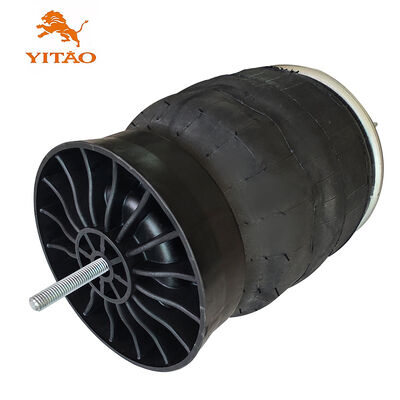

Product Images
1V 9541 Truck Air Spring, Suitable for Firestone W01-358-9541/Contitech 99-10S861/Bellow 1T15LA0 01V 9541 Truck Air Spring, Suitable for Firestone W01-358-9541/Contitech 99-10S861/Bellow 1T15LA0 11V 9541 Truck Air Spring, Suitable for Firestone W01-358-9541/Contitech 99-10S861/Bellow 1T15LA0 2
Factory Showcase
1V 9541 Truck Air Spring, Suitable for Firestone W01-358-9541/Contitech 99-10S861/Bellow 1T15LA0 3
Factory Overlook
1V 9541 Truck Air Spring, Suitable for Firestone W01-358-9541/Contitech 99-10S861/Bellow 1T15LA0 4
Quality Control Inspection
1V 9541 Truck Air Spring, Suitable for Firestone W01-358-9541/Contitech 99-10S861/Bellow 1T15LA0 5
Manufacturing Equipment
1V 9541 Truck Air Spring, Suitable for Firestone W01-358-9541/Contitech 99-10S861/Bellow 1T15LA0 6
R&D Center
1V 9541 Truck Air Spring, Suitable for Firestone W01-358-9541/Contitech 99-10S861/Bellow 1T15LA0 7
Assembly and Forming
1V 9541 Truck Air Spring, Suitable for Firestone W01-358-9541/Contitech 99-10S861/Bellow 1T15LA0 8
Vulcanization Shop
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods
  • International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions
Frequently Asked Questions
IS THE SAMPLE AVAILABLE?
Yes, we typically send samples via TNT, DHL, FEDEX or UPS. Delivery takes approximately 3 days. Customers are responsible for sample costs and airmail freight. Sample costs will be refunded after order placement.
WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the shipment date. For product failures within the warranty period, customers are responsible for replacement part costs.
CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
Yes, OEM services are welcomed.
I CANNOT FIND THE ITEMS I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
Yes. We provide product sourcing services for our customers. Please provide detailed information about the items you require.
