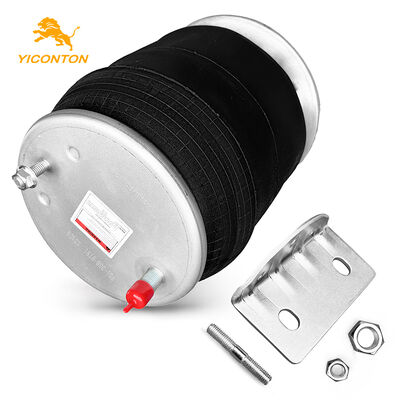

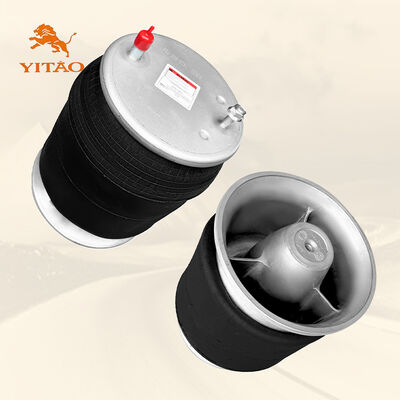

1V 9781 Truck Air Spring, Suitable for Firestone W01-358-9781/Contitech 910S-16A382

1V 9781 Truck Air Spring, Suitable for Firestone W01-358-9781/Contitech 910S-16A382
1V 9781 Truck Air Spring, Suitable for Firestone W01-358-9781/Contitech 910S-16A382 1V 9781 Truck Air Spring, Suitable for Firestone W01-358-9781/Contitech 910S-16A382 1V 9781 Truck Air Spring, Suitable for Firestone W01-358-9781/Contitech 910S-16A382 1V 9781 Truck Air Spring, Suitable for Firestone W01-358-9781/Contitech 910S-16A382

Large Image :  1V 9781 Truck Air Spring, Suitable for Firestone W01-358-9781/Contitech 910S-16A382

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 9781
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V 9781 Truck Air Spring, Suitable for Firestone W01-358-9781/Contitech 910S-16A382

Description
OE Number: W01-358-9781,910S-16A382,1R12-603,681-320-0017,A416-14004-000 Condition: New
Type: Truck Air Spring Gross Weight: 8.098 Kg
Net Weight: 7.559 Kg Packing Size: 28*28*46.5 Cm
Outer Diameter: Φ270 Maximum Height: 574mm
Minimum Height: 210mm Piston Material: Aluminum
Highlight:

Truck Air Spring for Firestone W01-358-9781

,

Truck Air Spring Contitech 910S-16A382

,

1V 9781 Truck Air Spring replacement

1V 9781 Truck Air Spring
Suitable for Firestone W01-358-9781 / Contitech 910S-16A382
Cross References
Brand Part Number Numbering Discrepancy
Firestone W01-358-9781 W01358-9781 / W01-3589781 / W01 358 9781
Contitech 910S-16A382 910S16A382 / 910S 16A382 / 910-S-16A382
bellow 1T15XBZR7.5 :1T15XBZR7.5
Goodyear 1R12-603 1R12603 / 1R12 603 / :1R12603
Technical Specifications
Specifications Parameters
Extended Height 564mm
Compressed Height 222mm
Top Plate Width 231mm
Piston Width 268mm
Weight 8.098 kg
Package Dimensions 28*28*46.5 cm
Product Information
  • Brand Name: Yiconton
  • Model Number: 1V 9781 W01-358-9781, 910S-16A382, 1R12-603, 681-320-0017, A416-14004-000
  • Manufacturing Origin: China
  • Certification: IATF16949
  • Minimum Order Quantity: 50 pieces
Product Images
1V 9781 Truck Air Spring, Suitable for Firestone W01-358-9781/Contitech 910S-16A382 01V 9781 Truck Air Spring, Suitable for Firestone W01-358-9781/Contitech 910S-16A382 1
1V 9781 Truck Air Spring, Suitable for Firestone W01-358-9781/Contitech 910S-16A382 2
Factory Overview
1V 9781 Truck Air Spring, Suitable for Firestone W01-358-9781/Contitech 910S-16A382 3
Quality Control Inspection
1V 9781 Truck Air Spring, Suitable for Firestone W01-358-9781/Contitech 910S-16A382 4
Manufacturing Equipment
1V 9781 Truck Air Spring, Suitable for Firestone W01-358-9781/Contitech 910S-16A382 5
R&D Center
1V 9781 Truck Air Spring, Suitable for Firestone W01-358-9781/Contitech 910S-16A382 6
Assembly and Forming
1V 9781 Truck Air Spring, Suitable for Firestone W01-358-9781/Contitech 910S-16A382 7
Vulcanization Shop
Images shown are for reference only. Actual product may vary slightly.
Delivery & Shipping Information
  • Delivery Time: Orders typically ship after payment receipt. Shipment completion within 1-30 business days based on order size
  • Packing Method: Standard brown carton packing; custom packaging available upon request
  • Shipping Marks: Standard weight and size display; custom shipping marks available
  • Transportation Methods: Sea, air, express delivery, railway, and combined transportation options
  • International Transport Notes: Strict standard packing to prevent damage. Contact us with any logistics questions
Frequently Asked Questions
IS THE SAMPLE AVAILABLE?
Yes, samples available via TNT, DHL, FEDEX or UPS (approx. 3-day delivery). Customers cover sample costs and airmail freight, refunded after order placement.
WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. 12-month warranty from shipment date. Customers responsible for replacement part costs during warranty period.
CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
Yes, OEM services welcomed.
I CANNOT FIND THE ITEMS I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
Yes. We provide product sourcing services. Please provide detailed item requirements.
Contact Us
Feel free to reach out. We'll respond within 24 hours (or sooner) and look forward to working with you.
