1V 8709 Truck Air Spring, Suitable for Firestone W01-358-8709/bellow 1T17CA5

1V 8709 Truck Air Spring, Suitable for Firestone W01-358-8709/bellow 1T17CA5
1V 8709 Truck Air Spring, Suitable for Firestone W01-358-8709/bellow 1T17CA5 1V 8709 Truck Air Spring, Suitable for Firestone W01-358-8709/bellow 1T17CA5 1V 8709 Truck Air Spring, Suitable for Firestone W01-358-8709/bellow 1T17CA5 1V 8709 Truck Air Spring, Suitable for Firestone W01-358-8709/bellow 1T17CA5

Large Image :  1V 8709 Truck Air Spring, Suitable for Firestone W01-358-8709/bellow 1T17CA5

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 1V 8709
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

1V 8709 Truck Air Spring, Suitable for Firestone W01-358-8709/bellow 1T17CA5

Description
OE Number: 1T17CA5,1010.16S460,1R13-159 Condition: New
Piston Material: Plastic Type: Truck Air Spring
Gross Weight: 7.191 Kg Net Weight: 6.782 Kg
Packing Size: 88*21*21 Cm Diametersize: φ255
Maximum Height: 470mm Minimum Height: 157mm
Highlight:

Firestone W01-358-8709 truck air spring

,

1V 8709 truck air bellow

,

1T17CA5 compatible truck air spring

1V 8709 Truck Air Spring
Suitable for Firestone W01-358-8709/bellow 1T17CA5
Cross References
Manufacturer Part Number Manufacturer Part Number
Firestone 1DK23I-9807 Firestone No. 1T17CA-5
Contitech 1010.16S460 Contitech 101016S460
Goodyear 1R13-159 Goodyear 599-26-3-073
Airtech 137072 Airtech 38709CPP
Triangle 8460 Triangle 6390

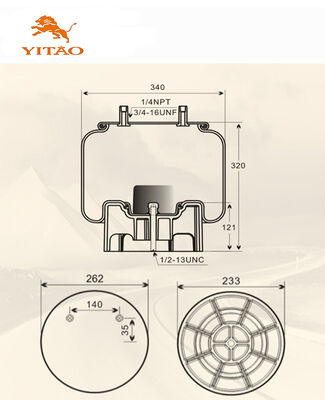

Technical Specifications
Specifications Parameters
Extended Height 320mm
Compressed Height /
Top Plate Width 262mm
Piston Width 233mm
Weight 7.191 kg
Package Dimensions 28*28*31.5 cm
Product Information
What is the brand name of this Air Suspension Spring product?
The brand name is Yiconton.
What is the model number of this Air Suspension Spring product?
The model number is 2S 6267 C2C41347,C2C20163,C2C23699,C2C23699E.
Where is this Air Suspension Spring product manufactured?
It is manufactured in China.
What certification does this Air Suspension Spring product have?
It has the IATF16949 certification.
What is the minimum order quantity for this Air Suspension Spring product?
The minimum order quantity is 50 pieces.
Product Images
1V 8709 Truck Air Spring, Suitable for Firestone W01-358-8709/bellow 1T17CA5 01V 8709 Truck Air Spring, Suitable for Firestone W01-358-8709/bellow 1T17CA5 11V 8709 Truck Air Spring, Suitable for Firestone W01-358-8709/bellow 1T17CA5 2
Factory Showcase
1V 8709 Truck Air Spring, Suitable for Firestone W01-358-8709/bellow 1T17CA5 3
Factory Overlook
1V 8709 Truck Air Spring, Suitable for Firestone W01-358-8709/bellow 1T17CA5 4
Quality Control Inspection
1V 8709 Truck Air Spring, Suitable for Firestone W01-358-8709/bellow 1T17CA5 5
Manufacturing Equipment
1V 8709 Truck Air Spring, Suitable for Firestone W01-358-8709/bellow 1T17CA5 6
R&D Center
1V 8709 Truck Air Spring, Suitable for Firestone W01-358-8709/bellow 1T17CA5 7
Assembly and Forming
1V 8709 Truck Air Spring, Suitable for Firestone W01-358-8709/bellow 1T17CA5 8
Vulcanization Shop
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods
  • International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions
Frequently Asked Questions
IS THE SAMPLE AVAILABLE?
Yes, we typically send samples via TNT, DHL, FEDEX or UPS. Delivery takes approximately 3 days. Customers are responsible for sample costs and airmail freight. Sample costs will be refunded after order placement.
WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the shipment date. For product failures within the warranty period, customers are responsible for replacement part costs.
CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
Yes, OEM services are welcomed.
I CANNOT FIND THE ITEMS I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
Yes. We provide product sourcing services for our customers. Please provide detailed information about the items you require.
