Firestone Air Springs W01-358-9422 W013589422 1T15L-1.5 for 3130496

Certification
China Guangdong Yiconton Air Spring Co., Ltd. certification
China Guangdong Yiconton Air Spring Co., Ltd. certification
I'm Online Chat Now

Firestone Air Springs W01-358-9422 W013589422 1T15L-1.5 for 3130496

Firestone Air Springs W01-358-9422 W013589422 1T15L-1.5 for  3130496
Firestone Air Springs W01-358-9422 W013589422 1T15L-1.5 for  3130496 Firestone Air Springs W01-358-9422 W013589422 1T15L-1.5 for  3130496

Large Image :  Firestone Air Springs W01-358-9422 W013589422 1T15L-1.5 for 3130496

Product Details:
Place of Origin: China
Brand Name: Yiconton
Certification: IATF16949
Model Number: 1V 8774
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiate
Packaging Details: Carton
Delivery Time: 5-8 Work Days
Payment Terms: T/T
Supply Ability: 500pieces/Month

Firestone Air Springs W01-358-9422 W013589422 1T15L-1.5 for 3130496

Description
Main Material: Rubber Bellows ,Steel Piston Product Name: Suspension Air Spring
Application: Truck Suspension Spring Replacement Firestone NO.: W01-358-9422 W013589422
Operation: Gas-filled Package Dimension: 28*28*31.5cm
Other Name: Air Spring, Air Bag Suspension, Airide Springs Net Weight: 6.780kg
High Light:

W013589422 Firestone Air Springs

,

W013589422 Truck Suspension Spring Replacement

,

W01-358-9422

 Firestone Air Springs W01-358-9422 W013589422 1T15L-1.5 for 3130496



Cross references
Automann
1DK20D-9422
Firestone No.
W01-358-9422
W013589422
W01 358 9422
Firestone Style
1T15L-1.5 1T15L1.5
FleetPride
AS9422
Goodyear
1R11-028 1R11028
Goodyear Flex No.
566243021
Primeride
AS PR9L12 9422
Road Choice
AS9422
Taurus
6368
Triangle
AS-8314 AS8314 AS 8314
TRP
AS94220


Original parts
Dayton
352-9422
Hendrickson
S-13032
Kenworth
K-303-6
Kenworth
K-303-14
Kenworth
K-303-15
Loadguard
SC2050
Navistar/Fleetrite
554762C1
85101148
Watson & Chalin
AS-0017
Ridewell
1003589422C
SAF Holland
57009422
Brake & Wheel
M3525
Navistar/Fleetrite
1R11-278



Technical Parameters



Extended Height:13.30

Compressed Height: 3.80

Top Plate Width:9.00

Piston Width:9.50

Bolt or Stud 1/2-13

Threaded Hole 3/8-16 Blind Nut on Bead Plates 1/2-13 in Pistons

Air Inlet 1/4 N.P.T

Combination Stud/Air Inlet Stud Outside Thread is 3/4-16

Studs Inside Thread (Air Inlet) is 1/4 N.P.T.



There are a few steps in our manufacturing process


1. 100% raw material inspection;
2. manufacturing process inspection;
3. 100% air leak inspection before packaging;
4. Spot check before we send it to customer.



About Yiconton



We are the biggest manufacturer of air suspensions parts in China. Our products have been imported worldwide. We can provide you with quality products and good service.

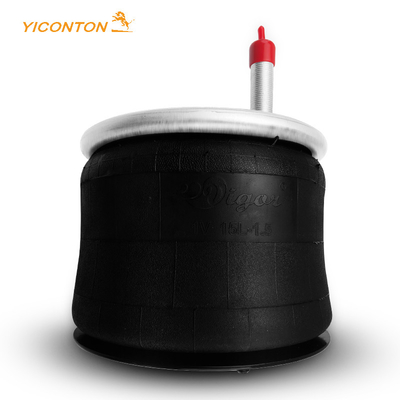

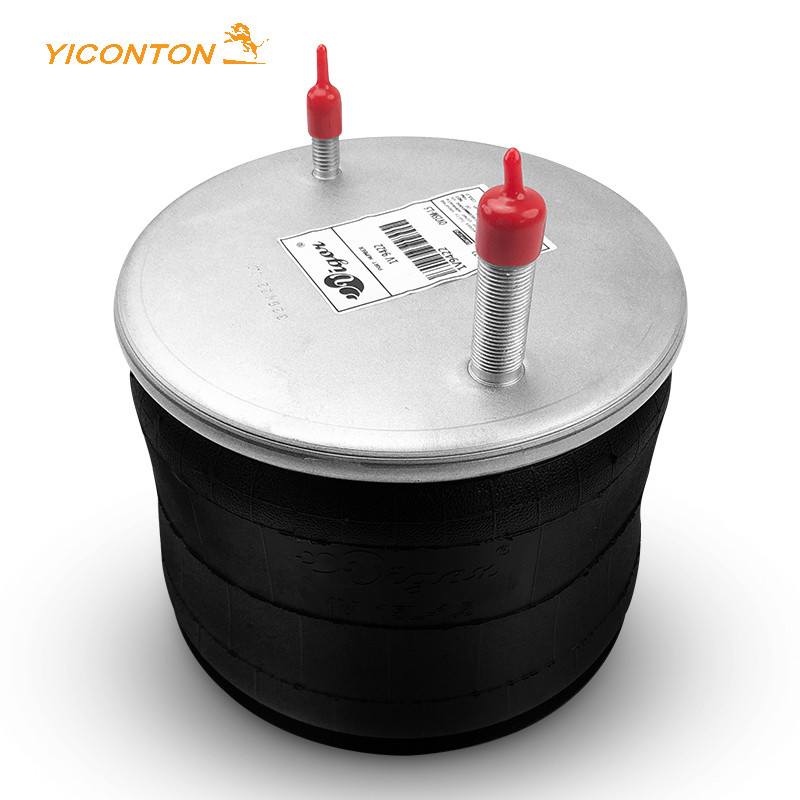

Product picture



Firestone Air Springs W01-358-9422 W013589422 1T15L-1.5 for  3130496 0
