Product Details:
|
| Main Material: | Rubber+Metal | Product Name: | Double Convoluted Air Spring |
|---|---|---|---|
| Net Weight: | 1.545 Kg | Package Dimension: | 29*29*38 Mm |
| Bellows Type: | Double Convoluted | Cross References: | W01-358-7025 W013587025 W01 358 7025 |
| Operation: | Gas-filled | Plate Dia: | 111mm |
| High Light: | Double Convoluted Air Bags W013587025,Truck Helper Bags W01-358-7025 |
||
double convoluted air bags Truck air spring W01-358-7025 W013587025
Specifications and Detail Technical Parameters
❶ Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 44 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
In Middle of Bottom Cover Plate
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet :1/4-18NPTF
❸ Cover Plate
Top Cover Plate Diameter (Width): 111 mm
Bottom Cover Plate Diameter (Width): 111 mm
❹Rubber Bellows
Rubber Bellows Natural Diameter : 146mm
Rubber Bellows MAX Diameter : 165 mm
Installation Space Diameter : 180 mm
Rubber Bellows Natural Height : 212 mm
Stroke:65mm-175mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
About Yitconton
We are the biggest manufacturer of air suspensions parts in China. Our products have been imported worldwide. We can provide you with quality products and good service.

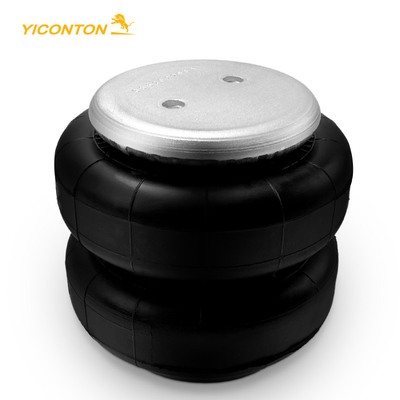

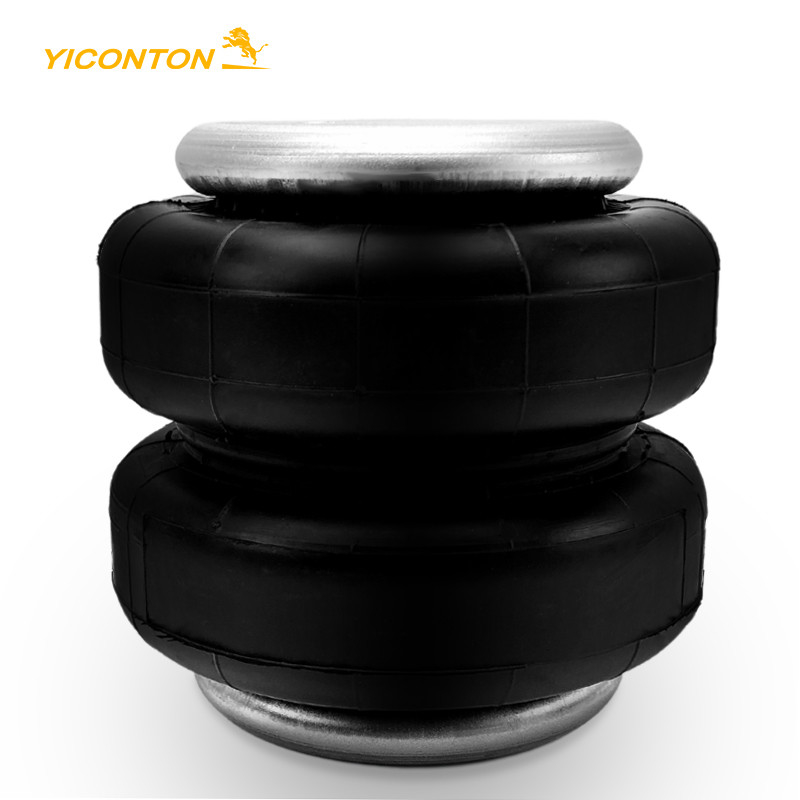

Product picture
