Air Bag Suspension Truck Air Spring Firestone W01M588608 W01-M58-8608

Air Bag Suspension Truck Air Spring Firestone W01M588608 W01-M58-8608
Air Bag Suspension Truck Air Spring Firestone W01M588608 W01-M58-8608 Air Bag Suspension Truck Air Spring Firestone W01M588608 W01-M58-8608

Large Image :  Air Bag Suspension Truck Air Spring Firestone W01M588608 W01-M58-8608

Product Details:
Place of Origin: China
Brand Name: Yiconton
Certification: IATF16949
Model Number: 1V 8608
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiate
Packaging Details: Carton
Delivery Time: 5-8 Work Days
Payment Terms: T/T
Supply Ability: 500pieces/Month

Air Bag Suspension Truck Air Spring Firestone W01M588608 W01-M58-8608

Description
Main Material: Rubber, Steel Product Name: Rubber Air Spring
Position: The Floating Bridge Firestone NO.: W01M588608 W01-M58-8608
Operation: Gas-filled Package Dimension: 28*28*31.5cm
Net Weight: 6.784kg Fit For: Truck / Trailer
High Light:

W01M588608 Truck Air Spring

,

Firestone Truck Air Spring

,

Truck Air Spring W01-M58-8608

  air bag suspension truck air spring firestone air springs W01M588608 W01-M58-8608



OEM Reference



Firestone Style 1T17DJ-7
Firestone No. W01-M58-8608  W01M588608
Vibracoustic V1DK25B-1
Gart Ref. C294/R
Gart No. 294.2.460 / 2942460
Blacktech RML78608CP
Airtech Ref. 38608 P
Airtech No. 123042

SPECS

Weight 6.8 kg
Torques M12x1.5: max. 25 Nm
M12: max. 70 Nm

1,Top Cover Plate

Top Cover Plate Diameter: φ 259 mm

Gas Hole / Air inlet : M12X1.5

Top Cover Plate Screw Bolt / Stud Tooth : 2 pcs M12

Distance Between Two Stud :140 mm

The Angle of The Air Hole and The Crew : 37°



2,Piston

Piston Hight:169 mm

Piston Diameter:φ200 mm

Screw Bolt / Stud Tooth : 2 pcs M12

Distance Between Two Stud :100 mm​



Our strengths



1. Long service on almost all air suspensions for trucks and trailers
2. Absorbs road shock and helps tractors and trucks last longer
3. Reduces vibration and driver fatigue
4. Long, trouble-free service, constant horizontal traction, fairly cushioned ride

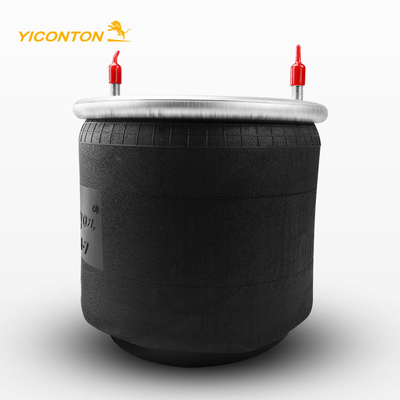

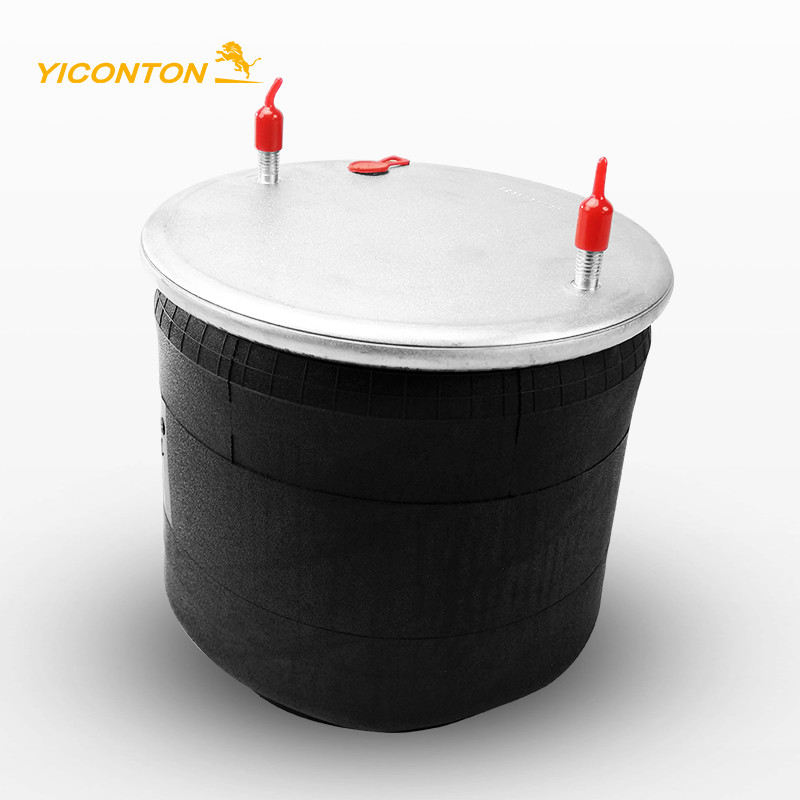

Product picture
