Product Details:
|
Main Material: | Rubber+Metal | Product Name: | Double Convoluted Air Spring |
---|---|---|---|
Net Weight: | 6.49 Kg | Package Dimension: | 33*33*22 Mm |
Bellows Type: | Double Convoluted | Cross References: | W01-358-7555,FD331-26-480 |
Operation: | Gas-filled | Plate Dia: | 224.5mm |
High Light: | Truck Air Spring Fireston W01-358-7555,XB-SPN-053-37 Truck Air Spring |

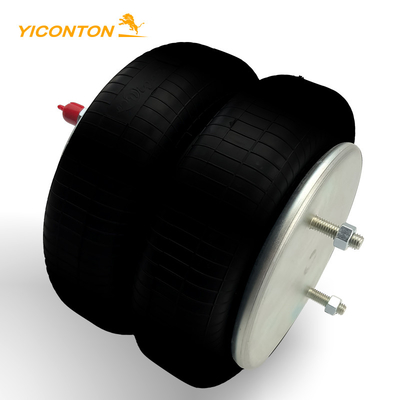

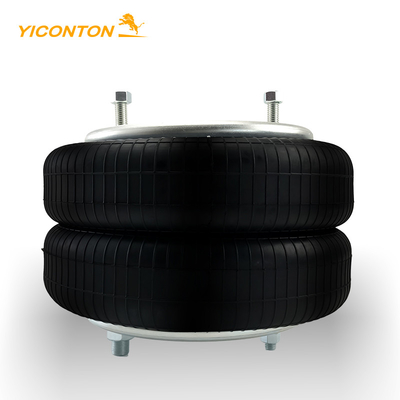

truck air spring Double Convoluted Fireston W01-358-7555 for Binkley XB-SPN-053-37
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 1/2-13UNC
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 1/2-13UNC
Screw Center Distance of Bottom Cover Plate : 157 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4-18NPTF
Screw Center Distance Between Gas Hole and Nut : 157mm
❸ Cover Plate
Top Cover Plate Diameter: 224.5 mm
Bottom Cover Plate Diameter: 224.5 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 343 mm
Maximum Height : 363 mm
Minimum Height :104mm
When should air springs be replaced?
Misalignment (this occurs when the upper and lower parts of the air springs aren't in the up and down position like they're supposed to be.
The girdle loop is loose.
If the air springs compress too far, bottom out abrasion could occur.
About Yiconton
We are the biggest manufacturer of air suspensions parts in China. Our products have been imported worldwide. We can provide you with quality products and good service.
Our Advantage
The rubber is of high quality.
The plate is the steel,coated Zn,high capacity and anti-corrosion.
All air spring types can be used at a working temperature between -40°C and 70°
We also have our strict series quality control.
OEM Manufacturing welcome: Product
Sample order is available.
We will reply you for your inquiry in 24 hours.
After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
Product picture
