Product Details:
|
| Main Material: | Rubber+Metal | Product Name: | Double Convoluted Air Spring |
|---|---|---|---|
| Net Weight: | 5.576 Kg | Package Dimension: | 33*33*22 Mm |
| Bellows Type: | Double Convoluted | Cross References: | W01-358-7180,FD330-22363 |
| Operation: | Gas-filled | Plate Dia: | 231mm |
| High Light: | W01-358-7180 Double Convoluted Air Spring,FD330-22363 Double Convoluted Air Spring |
||
Double Convoluted Air Spring Firestone W01-358-7180 Contitech FD330-22363
| Nut/Blind Nut | |
| Top Cover Plate Screw (Nut) Tooth | 2X3/8 -16UNC |
| Screw Center Distance of Top Cover Plate | 157mm |
| Screw and Air Inlet Distance of Top Cover Plate | 73mm |
| Bottom Cover Plate Screw (Nut) Tooth | 2X3/8-16UNC |
| Screw Center Distance of Bottom Cover Plate | 157mm |
| Gas Hole / Air inlet / Air Fitting | |
| Gas Hole / Air inlet | 1/4NPTF |
| Cover Plate | |
| Top Cover Plate Diameter | 231mm |
| Bottom Cover Plate Diameter | 231mm |
| Rubber Bellow | |
| Rubber Bellows MAX Diameter | 325mm |
| The Working Stroke | MAX 305mm to MIN 81 mm |
| Maximum Height | 305mm |
| Minimum Height | 81mm |
| Compression Height | 224mm |
Note for double convoluted air spring
Firestone double convoluted air springs DO NOT require a bumpstop to avoid damage, however, your specific application MAY require a bumpstop to maintain a safe ground clearance when deflated.
Advantages of our products
1. Excellent crafting materials
2. Effectively reduce shock
3. Easy on-site installation
4. Comfortable and stable
5. Long service life
6. Solve abnormal noise
7. Factory price, reasonable and competitive

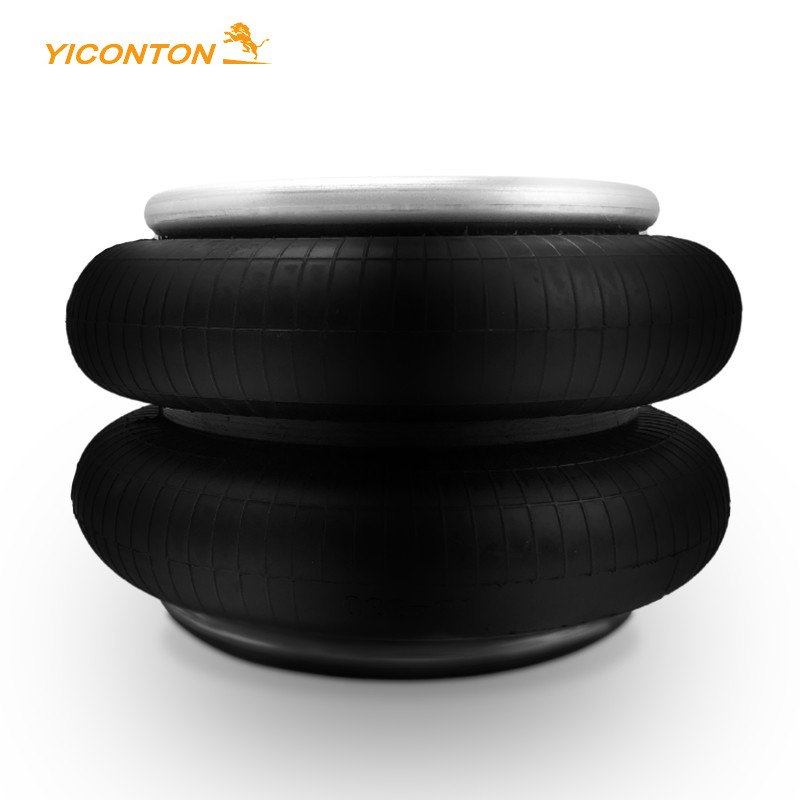

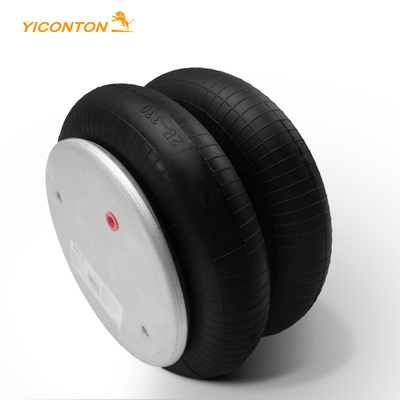

Product picture
