Product Details:
|
Main Material: | Steel Cover Plate , Rubber Bellows | Product Name: | Double Convoluted Air Spring |
---|---|---|---|
Net Weight: | 5.366 Kg | Package Dimension: | 33*33*22 Mm |
Bellows Type: | Double Convoluted | Cross References: | W01-358-7424,FD330-22327 |
Operation: | Gas-filled | Plate Dia: | 231mm |
High Light: | 231mm Plate Dia Truck Air Spring,W01-358-7424 Truck Air Spring,3130504 Truck Air Spring |
Air ride Air Spring truck W01-358-7424 Firestone for 3130504
Products Technical Data
Technical data | Top Cover Plate Diameter:231mm |
Bottom Cover Plate Diameter:231mm | |
Gas Hole / Air inlet:1/4NPT | |
Rubber Bellows MAX Diameter:398mm | |
Design Height:305 mm ~ 81mm | |
Screw Center Distance of Bottom Cover Plate:157.5mm | |
Top Cover Plate Screw (Nut) Tooth:2x1/2-13UNC | |
Bottom Cover Plate Screw (Nut) Tooth:2x1/2-13UNC | |
Screw and air inlet Distance of Top Cover Plate:157.5mm |
Benefits
Require little to no maintenance
Pressure tested for quality assurance
Increase towing and hauling capabilities
Replace worn out oem air bags
Increase life of other suspension components
Warranty Info
2 Year - 200,000 Mile Warranty
About Yiconton
Our company has been manufacturing air suspensions since 2004. We've learned a lot about what makes a great air suspension and how to make them. Since 2009, We have started cooperating with OEM (Original equipment manufacturer). In 2010, we manufactured air pumps as well as solenoid valve blocks. In 2016, we became an automatically integrated factory.
Now, YICONTON has become the most considerable manufacturer of air suspensions in Asia. Our products have been imported worldwide, mainly in North America.

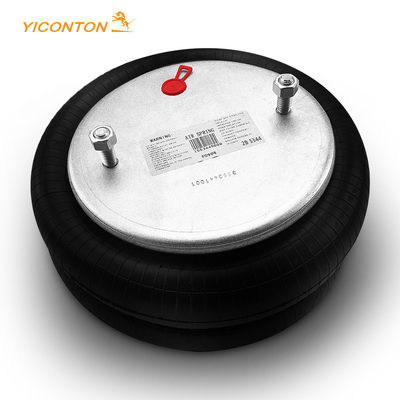

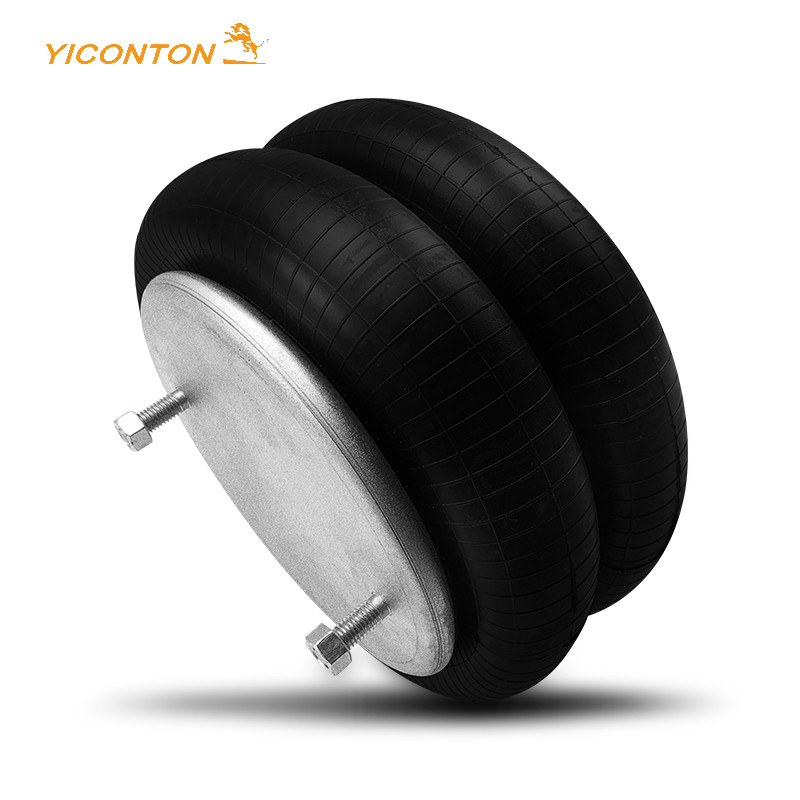

Product picture
