Product Details:
|
| Main Material: | Steel Cover Plate , Rubber Bellows | Product Name: | Double Convoluted Air Spring |
|---|---|---|---|
| Net Weight: | 6.657 Kg | Package Dimension: | 33*33*22 Mm |
| Bellows Type: | Double Convoluted | Cross References: | W01-358-7550,FD331-26541 |
| Operation: | Gas-filled | Plate Dia: | 224.5mm |
| High Light: | Rubber Suspension Air Ride Spring,W01-358-7550 Air Ride Spring |
||
Rubber Suspension Air ride Air Spring Double Air Bag Bellows W01-358-7550
Products Technical Data
| Technical data | Top Cover Plate Diameter:224.5mm |
| Bottom Cover Plate Diameter:224.5mm | |
| Gas Hole / Air inlet:1/4-18NPT | |
| Rubber Bellows MAX Diameter:343mm | |
| Design Height:363 mm ~ 104 mm | |
| Top Cover Plate Screw (Nut) and air inlet Tooth:3/4-16UNF | |
| Top Cover Plate Screw (Nut) Tooth:1/2-13UNC | |
| Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC | |
| Screw and air inlet Distance of Top Cover Plate:157mm | |
| Screw Center Distance of Bottom Cover Plate:157mm |
Product testing process
There are a few steps in our manufacturing process:
1. 100% raw material inspection;
2. manufacturing process inspection;
3. 100% air leak inspection before packaging;
4. Spot check before we send it to customer.
About Yiconton
Our company has been manufacturing air suspensions since 2004. We've learned a lot about what makes a great air suspension and how to make them. Since 2009, We have started cooperating with OEM (Original equipment manufacturer). In 2010, we manufactured air pumps as well as solenoid valve blocks. In 2016, we became an automatically integrated factory.
Now, YICONTON has become the most considerable manufacturer of air suspensions in Asia. Our products have been imported worldwide, mainly in North America.

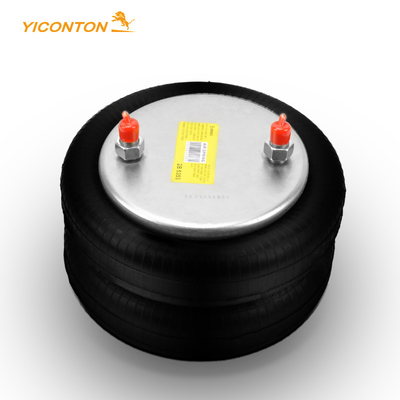

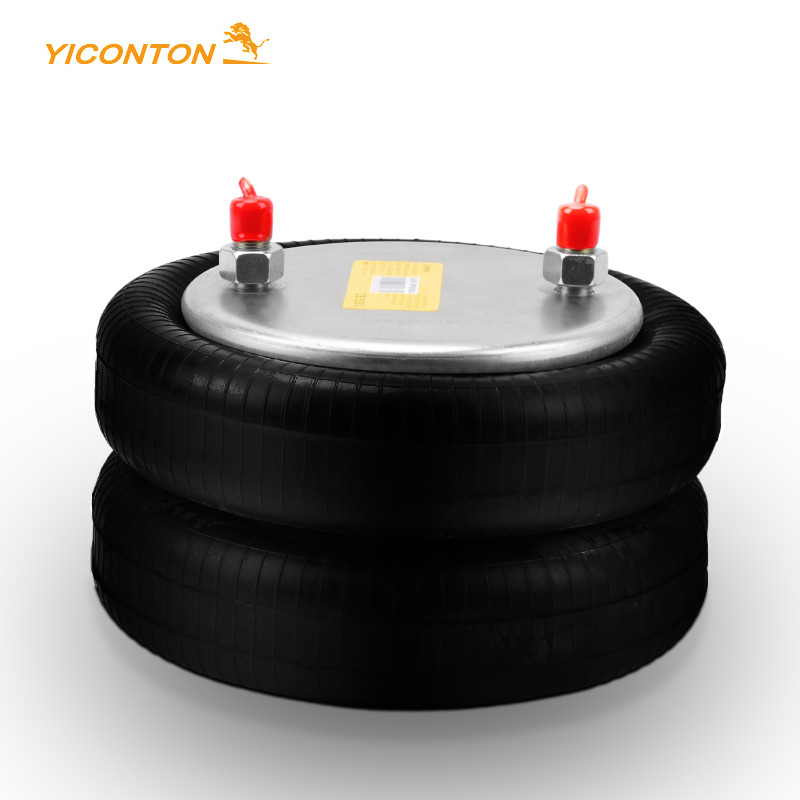

Product picture
