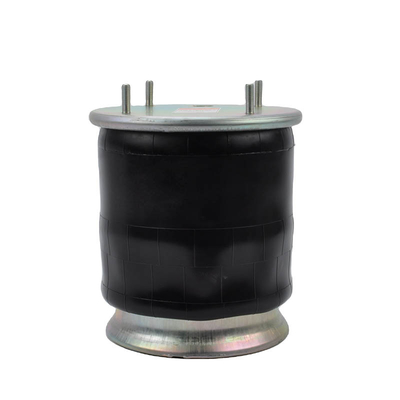

Air Spring for Trucks Air Spring 1080707 Firestone W01-M58-6345 Contitech 810MB

❶ Screw Bolt / Stud

Top Cover Plate screw bolt / Stud Tooth :2 pcs M12X1.75

Screw Center Distance of Top Cover Plate : 158.8mm

Distance Between Stud and Central Axis : 79.4 mm

❷ Gas Hole / Air inlet /Air Fitting

Gas Hole / Air inlet : M22x1.5.

Distance Between Gas Hole and Stud : 79.4 mm

Distance Between Gas Hole and Central Axis : 79.4 mm

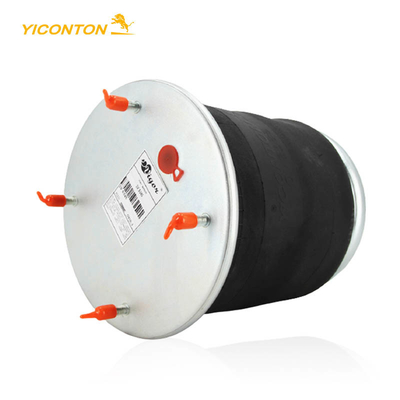

❸ Cover Plate

Top Cover Plate Diameter: Ø286 mm

❹Rubber Bellows

Rubber Bellows Natural Diameter: 320 mm

Rubber Bellows MAX Height : 550 mm

Rubber Bellows MIN Height :184mm

Working stroke : 366 mm

❺ Bumper block / Buffer block

Bumper Block height :58 mm

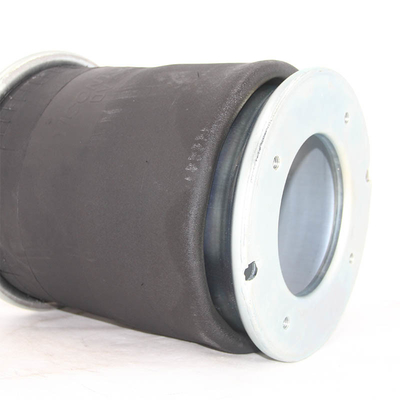

❻ Bottom Piston

Bottom Piston Diameter : Ø260 mm

Bottom Piston Height :139.8mm

❼ Piston Bolt

Piston Bolt Tooth : M12 X1.75

4 pieces of Bolt

Middle faster between center Bolt : Ø200 mm
