Firestone W01-358-7550 Goodyear 2B13-346 Double Convoluted Air Spring

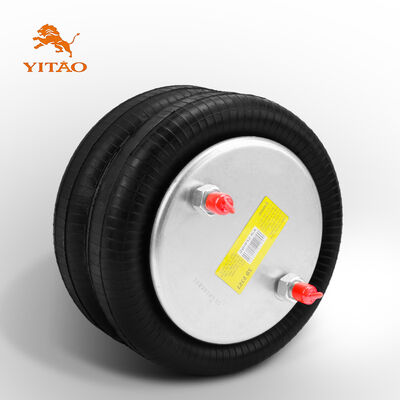

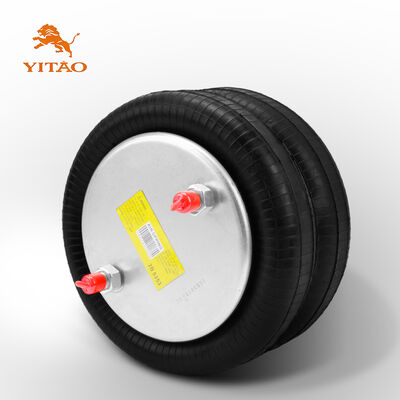

Large Image : Firestone W01-358-7550 Goodyear 2B13-346 Double Convoluted Air Spring

Product Details:

Place of Origin:	China
Brand Name:	YITAO
Certification:	IATF16949
Model Number:	2B 5353/02B 331

Payment & Shipping Terms:

Minimum Order Quantity:	50pieces
Price:	Negotiable in person
Packaging Details:	Carton
Delivery Time:	1 ~ 30 days
Payment Terms:	T/T
Supply Ability:	5000pieces/Month

Contact Now

Firestone W01-358-7550 Goodyear 2B13-346 Double Convoluted Air Spring

Description

OE Number:	W01-358-7550,FD331-26541,2B13-346,440,578923315,6375,4480,10315,AS-0087	YITAO Number:	2B 5353
Shipping Time:	3-10 Days	Warranty:	12 Months
Type:	Air Spring, Suspension Spring	Main Material:	Rubber+Metal
Packing:	Neutral Packing Or Customized Packing
Highlight:	Firestone double convoluted air spring , Goodyear air ride spring , 2B13-346 air spring with warranty

Firestone W01-358-7550 Goodyear 2B13-346 Double Convoluted Air Spring

High-quality double convoluted air spring designed for optimal performance and durability in industrial applications.

OE Manufacturer Numbers

W01-358-6902, FD200-19310, 2B9-201, KF218-6902, 4848, S2630, 1027505, 1003586902C, 2000-42, AS-0002

Cross References

Brand	Reference Numbers	Numbering Discrepancy
Firestone	W01-358-7550	W013587550 / W01-358-7550 / W01 358 7550
Contitech	FD331-26541	FD33126541 / FD331-26541 / FD331 26541
Goodyear	2B13-346	2B13346 / 2B13-346 / 2B13 346
Goodyear	440	:440
Goodyear	578923315	:578923315
Triangle	6375	:6375
Triangle	4480	:4480
Histeer	10315	:10315
Watson&Chalin	AS-0087	AS0087 / AS-0087 / AS 0087

Technical Specifications

Specifications	Parameters
Outer diameter	φ331
Weight	13.365kg/8PCS
Net weight	1.59kg
Package Dimensions	303039.5cm
Natural height	250mm
Maximum height	100mm
Minimum height	360mm
Extended Height	363mm
Compressed Height	104mm
Top Plate Width	224.5mm
Piston Width	224.5mm

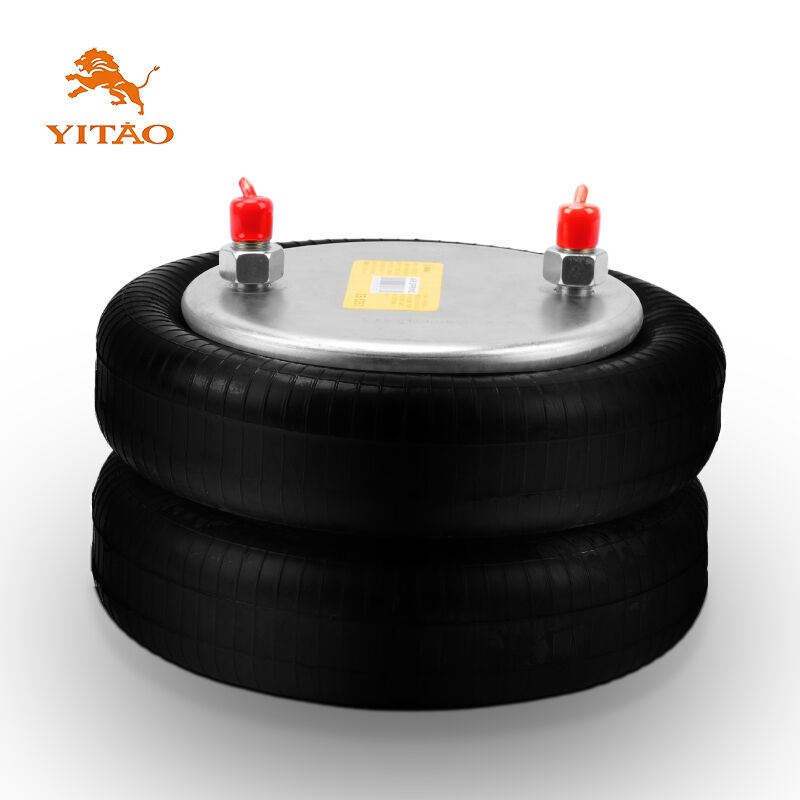

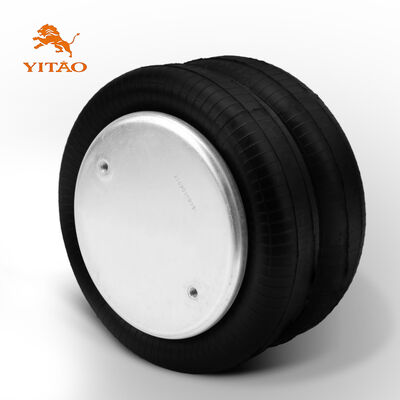

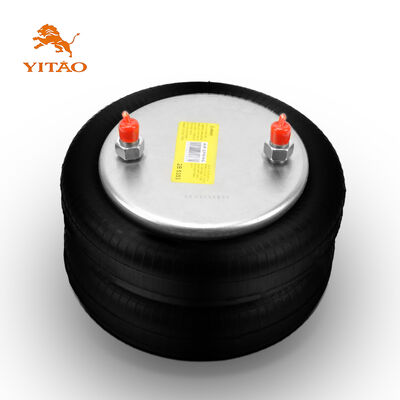

Product Drawings & Images

Factory Overlook

Quality Control Inspection

Manufacturing Equipment

R&D Center

Assembly and Forming

Vulcanization Shop

Images shown are for reference only. Actual product may vary slightly.

Delivery Information

Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
Packing Method: Brown carton packing; we can also pack according to your requirements
Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements
Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods
International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions
