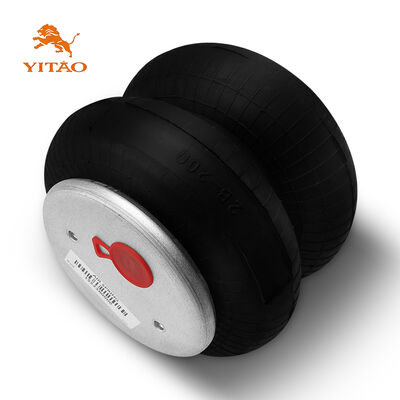

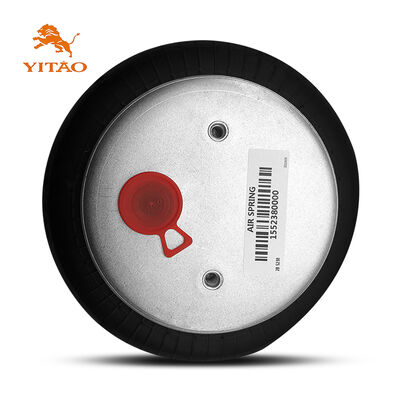

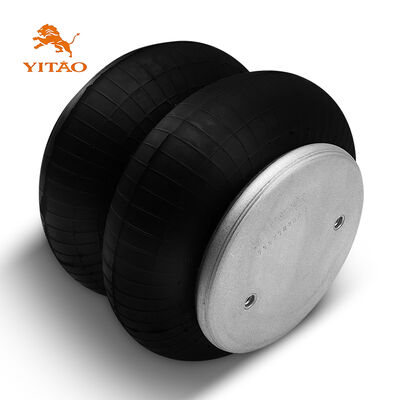

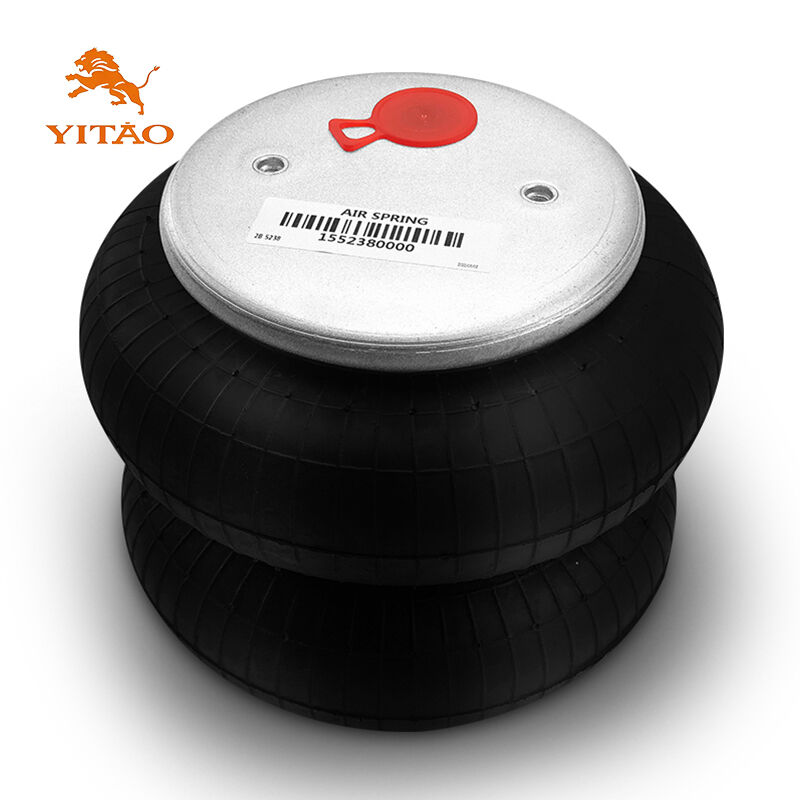

Contitech FD200-19 Festo EB-250-185 Double Convoluted Air Spring

Contitech FD200-19 Festo EB-250-185 Double Convoluted Air Spring
Contitech FD200-19 Festo EB-250-185 Double Convoluted Air Spring Contitech FD200-19 Festo EB-250-185 Double Convoluted Air Spring Contitech FD200-19 Festo EB-250-185 Double Convoluted Air Spring Contitech FD200-19 Festo EB-250-185 Double Convoluted Air Spring Contitech FD200-19 Festo EB-250-185 Double Convoluted Air Spring

Large Image :  Contitech FD200-19 Festo EB-250-185 Double Convoluted Air Spring

Product Details:
Place of Origin: China
Brand Name: YITAO
Certification: IATF16949
Model Number: 2B 5238/02B 200
Payment & Shipping Terms:
Minimum Order Quantity: 50pieces
Price: Negotiable in person
Packaging Details: Carton
Delivery Time: 1 ~ 30 days
Payment Terms: T/T
Supply Ability: 5000pieces/Month
Contact Now

Contitech FD200-19 Festo EB-250-185 Double Convoluted Air Spring

Description
OE Number: FD200-19,2682042000,822419043,EB-250-185,PM,31092,WBE400-E1 YITAO Number: 2B 5238
Shipping Time: 3-10 Days Warranty: 12 Months
Type: Air Spring, Suspension Spring Main Material: Rubber+Metal
Packing: Neutral Packing Or Customized Packing
Highlight:

Contitech FD200-19 air spring

,

Festo EB-250-185 double convoluted spring

,

air ride spring with warranty

Contitech FD200-19 Festo EB-250-185 Double Convoluted Air Spring
High-quality double convoluted air spring designed for optimal performance and durability in industrial applications.
OE Manufacturer Numbers
FD200-19, 2682042000, 822419043, EB-250-185, PM, 31092, WBE400-E1
Cross References
Brand Reference Numbers Numbering Discrepancy
Contitech FD200-19 FD20019 / FD200-19 / FD200 19
Contitech 2682042000 :2682042000
Bosc 822419043 :822419043
Festo EB-250-185 EB250185 / EB-250-185 / EB 250 185
Norgren PM/31092 PM31092 / PM/31092 / PM 31092
Weforma WBE400-E1 WBE400E1 / WBE400-E1 / WBE400 E1
Technical Specifications
Specifications Parameters
Outer diameter φ224
Weight 3.628kg
Net weight 3.29kg
Package Dimensions 25*25*25.5cm
Natural height 210mm
Maximum height 78mm
Minimum height 260mm
Extended Height 260mm
Compressed Height 75mm
Top Plate Width 160mm
Piston Width 160mm
Product Drawings & Images
Contitech FD200-19 Festo EB-250-185 Double Convoluted Air Spring 0
Contitech FD200-19 Festo EB-250-185 Double Convoluted Air Spring 1
Factory Overlook
Contitech FD200-19 Festo EB-250-185 Double Convoluted Air Spring 2
Quality Control Inspection
Contitech FD200-19 Festo EB-250-185 Double Convoluted Air Spring 3
Manufacturing Equipment
Contitech FD200-19 Festo EB-250-185 Double Convoluted Air Spring 4
R&D Center
Contitech FD200-19 Festo EB-250-185 Double Convoluted Air Spring 5
Assembly and Forming
Contitech FD200-19 Festo EB-250-185 Double Convoluted Air Spring 6
Vulcanization Shop
Images shown are for reference only. Actual product may vary slightly.
Delivery Information
  • Delivery Time: Orders are typically shipped after payment is received. Depending on order size, shipment will be completed within 1-30 business days
  • Packing Method: Brown carton packing; we can also pack according to your requirements
  • Shipping Marks: Generally display weight and size. We can also make shipping marks according to your requirements
  • Transportation Methods: Sea transportation, air transportation, express delivery, railway transportation and various combined transportation methods
  • International Transport Notes: Due to international transportation requirements, we pack according to strict standards to avoid damage. If logistics information is stagnant during transportation, please wait patiently. Contact us with any questions
Frequently Asked Questions
IS THE SAMPLE AVAILABLE?
Yes, we typically send samples via TNT, DHL, FEDEX or UPS. Delivery takes approximately 3 days. Customers are responsible for sample costs and airmail freight. Sample costs will be refunded after order placement.
WHAT IS YOUR WARRANTY TERM?
Full container load orders receive 1% free spare parts. Export products carry a 12-month warranty from the shipment date. For product failures within the warranty period, customers are responsible for replacement part costs.
CAN I USE MY OWN LOGO AND DESIGN ON PRODUCTS?
Yes, OEM services are welcomed.
I CANNOT FIND THE ITEMS I WANT FROM YOUR WEBSITE, CAN YOU OFFER THE PRODUCTS I NEED?
Yes. We provide product sourcing services for our customers. Please provide detailed information about the items you require.
